– Gigabit network ports
– 48VDC passive PoE injector
– Auto-detect and auto-supply the necessary power required
– Plug-and-Play, requires no configuration
Specifications
HARDWARE FEATURES
– Interface

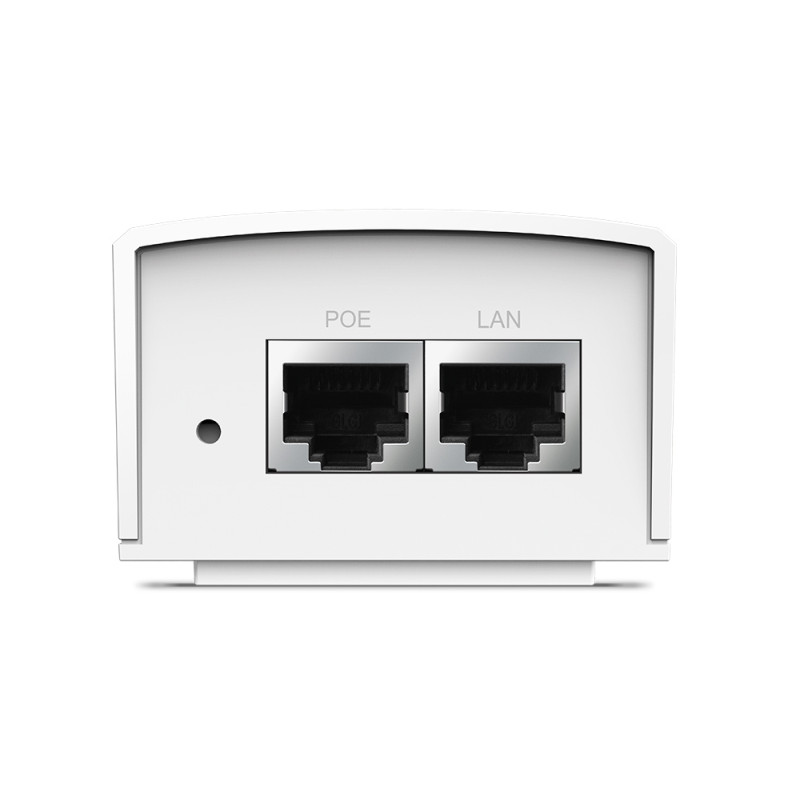

• 2 x 10/100/1000Mbps RJ45 Port
• Auto Negotiation/Auto MDI/MDIX

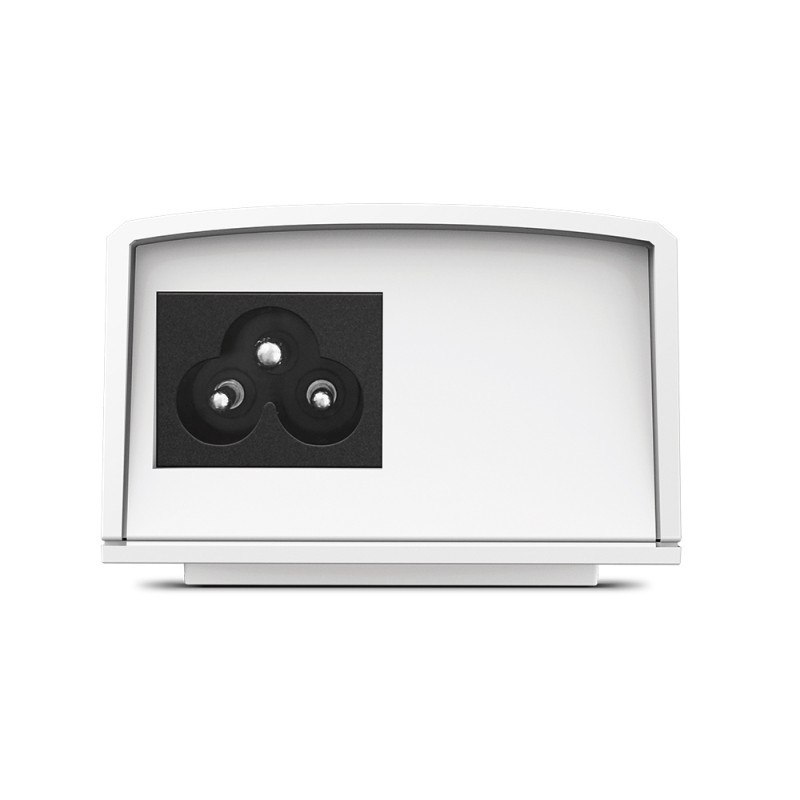

• 1 100~240V / 50~60Hz AC Power Input Port
Network Media
– 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
• EIA/TIA-568 100? STP (Max 100m)
– 100BASE-TX: UTP category 5, 5e cable (Max 100m)
• EIA/TIA-568 100? STP (Max 100m)
– 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
– LED Indicator: PWR
– Dimensions ( W x D x H ): 4.3 × 2.3 × 1.5 in. (110×57×38.8 mm)
OTHERS
– Certification: FCC, RoHS
– Package Contents
• 48V, 24W Passive PoE Adapter TL-POE4824G
• Power Cord
• Wall Mounting Kits
Environment
– Operating Temperature: 0?~40? (32?~104?)
– Storage Temperature: -40?~70? (-40?~158?)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
