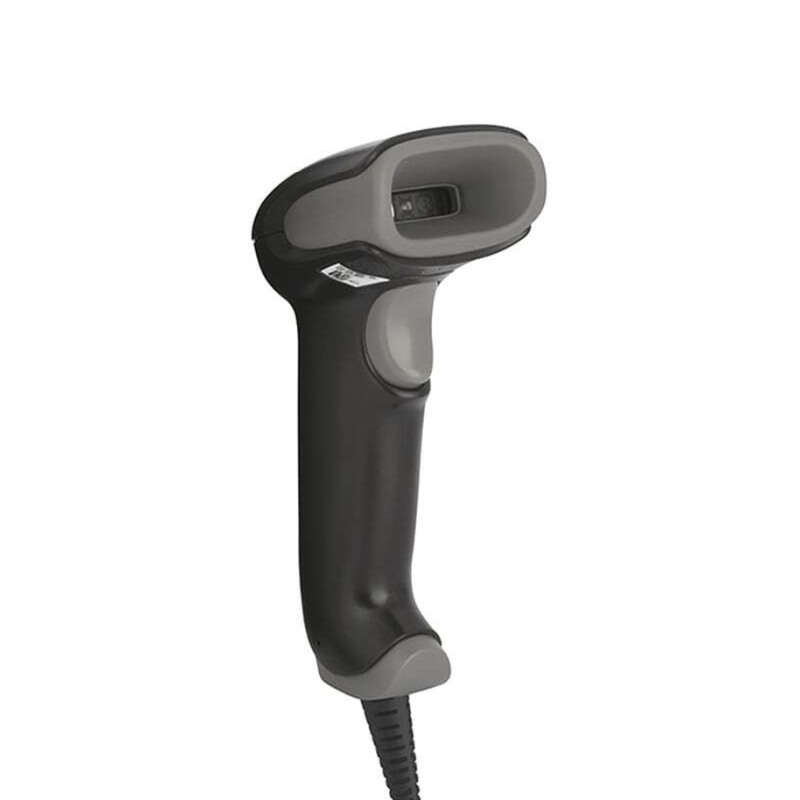

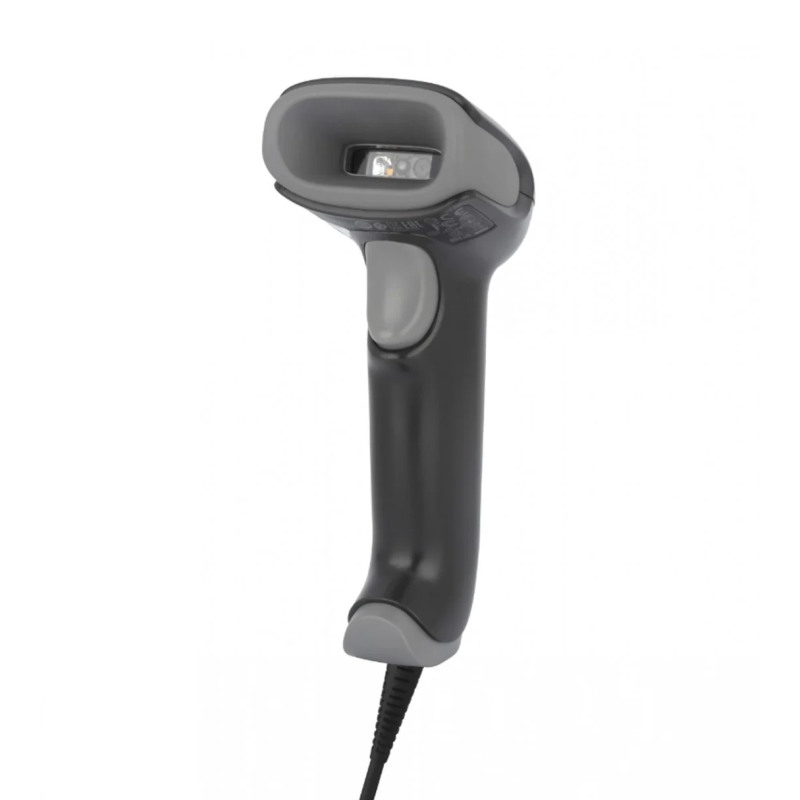

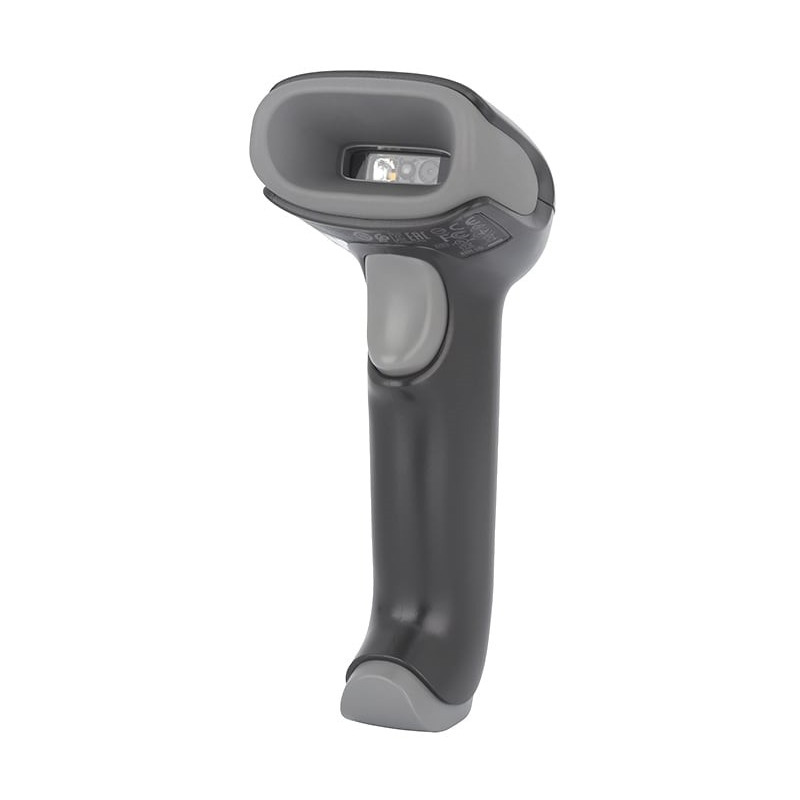

– Designed for in-store retail environments requiring a highly accurate 2D scanning solution in a durable form factor, the VoyagerExtreme Performance (XP) 1470g scanner delivers industry-leading scanning capability on traditional barcodes and digital screens – even on damaged and difficult-to-read codes.
– With better durability and a more powerful scan capability than previous models – or any competitive scanner in its class – the Voyager XP 1470g scanner is the perfect option for workflows that include 1D and 2D barcode reading and require a more robust and reliable solution.
The Voyager XP 1470g scanner combines added durability and better scan capability at the same competitive price point as its predecessor. The scanner’s extended scan distance will reach right to the bottom of the cart without bending and wasted time at the checkout.
– Built on the platform of Honeywell’s iconic Voyager series handheld scanners, the Voyager XP 1470g scanner is fully backward-compatible with existing Voyager accessories, reducing total cost of ownership. Engineered to 30 drops at 1.8 m (6 ft) and 1,000 tumbles at 0.5 m (1.6 ft), the Voyager XP 1470g scanner is built to withstand busy point-of sale scanning with much better accuracy than comparable solutions
– The Voyager XP 1470g scanner combines enhanced reading of poor-quality and damaged codes with class-leading durability, reducing the risk of errors and operational slowdowns and avoiding the hidden cost of warranty
– Highly accurate and fast scanning of even damaged and poor-quality barcodes, with an extended scan distance to reach the bottom of the cart without bending and wasted time at point of sale.
– Enhanced performance on the codes stores scan every day, including digital coupons, codes, and wallets on customers’ smartphones, as well as merchandise codes at the register.
– Honeywell Operational Intelligence software delivers on-demand scan insights, enabling higher employee productivity and throughput.
– The Honeywell Scanner Management Utility (SMU) creates a holistic solution that automates deployment and updating of the scanner
Specifications
MECHANICAL/ELECTRICAL
– Dimensions (L x W x H): 62 mm x 169 mm x 82 mm (2.4 in x 6.6 in x 3.2 in)
– Scanner Weight: 130 g (4.6 oz)
– Input Voltage: 4.0V DC to 5.5V DC
– Operating Power: 2 W (400 mA 5V DC)
– Standby Power: 0.45 W (90 mA 5V DC)
– Host System Interfaces: USB, Keyboard
– Wedge, RS-232, RS485 support for IBM 46xx (RS485)
ENVIRONMENTAL
– Operating Temperature: 0°C to 50°C (32°F to 122°F)
– Storage Temperature: -40°C to 60°C (-40°F to 140°F)
– Electrostatic Discharge (ESD) (Scanners and Cradles): ±8 kV indirect coupling plane, ±15 kV direct air
– Humidity: 0% to 95% relative humidity, non-condensing
– Tumble Spec: 1,000 0.5 m (1.6 ft) tumbles (impacts)
– Drop: Engineered to withstand 30 1.8 m (6 ft) drops to concrete
– Environmental Sealing: IP52
– Light Levels: 0 to 100,000 lux (9,290 foot-candles)
SCAN PERFORMANCE
– Scan Pattern: Area Image (1040 x 720 pixel array)
– Motion Tolerance: 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
– Scan Angle: Horizontal: 39.2° nominal; Vertical: 27.4° nominal
– Roll, Pitch, Skew: ±180°, ±65°, ±70°
– Print contrast: 20%
– Decode Capabilities: Reads standard 1D, PDF, 2D, and DotCode symbologies
*Note: Decode capabilities dependent on configuration.
– Warranty: 5-year factory warranty
