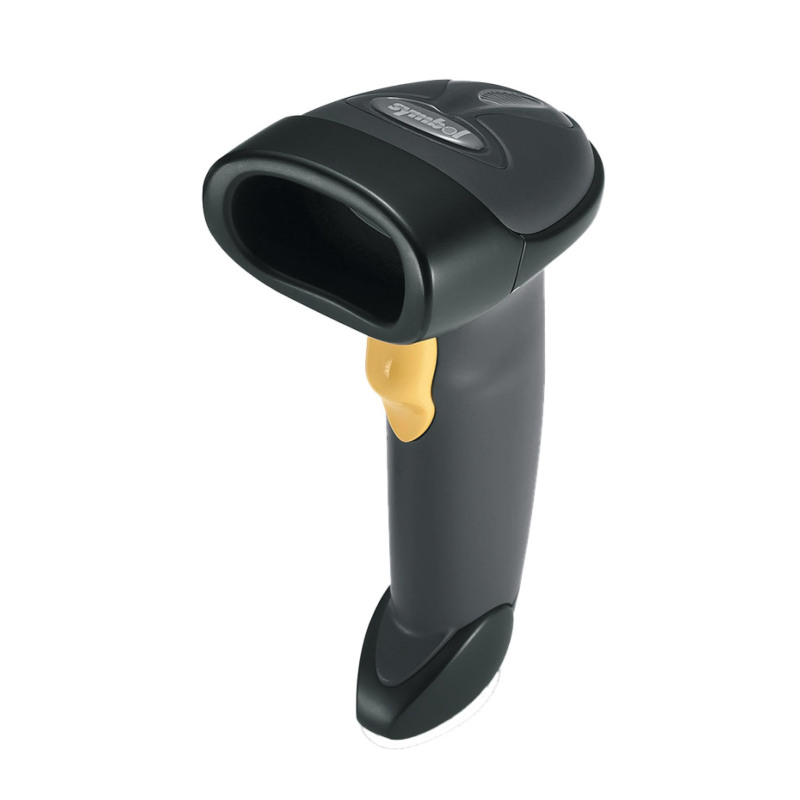

– The affordable Symbol LS2208 handheld barcode scanner provides fast, reliable scanning in an ergonomic, lightweight form
– The wide working range – from near-contact to 17 inches – makes this device ideal for retail, hospital, education or government settings
– Multiple on-board interfaces ensure integration with a variety of host systems
IDEAL FOR THESE APPLICATIONS
– Retail:
* Point of Sale (PoS)
* In-store inventory tracking
* 1D loyalty card processing
* 1D paper coupon redemption
– Education:
* Library book checkout
* Inventory and asset tracking
Specifications
PHYSICAL CHARACTERISTICS
– Dimensions (H×W×D): 15.2× 6.4× 8.5 cm
– Weight: 150 g
– Input Voltage Range:
* 4.5 to 5.5 VDC host powered
* 4.5 to 5.5 VDC external power supply
– Operating Current at Nominal Voltage (5.0V): 175 mA (typical)
– Standby Current (idle) at Nominal Voltage (5.0V): 90 mA (typical)
– Color: Cash Register White, Twilight Black
– Supported Host Interfaces: USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
– Keyboard Support: Supports over 90 international keyboards
– User Indicators: Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume)
PERFORMANCE CHARACTERISTICS
– Light Source: 650 nm Laser Diode Class 2
– Scan Pattern: Single line
– Scan Speed: 100 scans per second
– Scan Angle: 35°
– Minimum Print Contrast: 20% minimum reflective difference
– Skew Tolerance: +/- 10°
– Pitch Tolerance: +/- 65°
– Roll Tolerance: +/- 60°
USER ENVIRONMENT
– Operating Temperature: 32° F to 122° F/0° C to 50° C
– Storage Temperature: -40° F to 158° F/-40° C to 70° C
– Humidity: 5% – 95% RH, non-condensing
– Drop Specification: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
– Tumble Specification: Designed to withstand 500 tumbles in 1.64 ft./0.5 m tumbler
– Environmental Sealing: IP30
– Electrostatic Discharge (ESD): ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
SYMBOL DECODE CAPABILITY
– Scanning Technology: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies
– Minimum Element Resolution: Code 39: 3.0 mil
ACCESSORIES

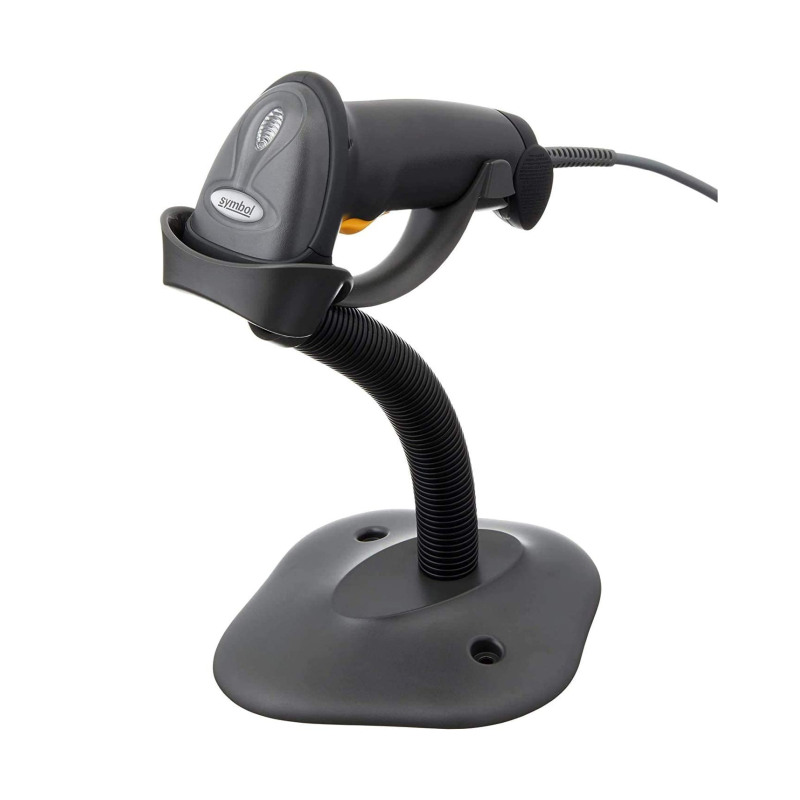

– Gooseneck Intellistand
REGULATORY
– Electrical Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07
– EMI/RFI: FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC
– Laser Safety: CDRH Class II, IEC Class 2
– Environmental: Compliant with RoHS irective 2011/65/EU; EN 50581: 2012
UTILITIES AND MANAGEMENT
– 123Scan2: Programs scanner parameters, upgrades firmware, provides scanned bar code data and prints reports
– Symbol Scanner SDK: Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code
– Scanner Management Service (SMS): Remotely manages your Zebra scanner and queries its asset information
DECODE RANGES (TYPICAL* )
* Printing resolution, contrast and ambient light dependent
– Code 39: 3 mil: 1.6 – 4.8 in./4.1 – 12.2 cm
– Code 39: 4 mil: 1.3 – 8.7 in./3.3 – 22.1 cm
– Code 39: 5 mil: 0.9 – 11.7 in./2.3 – 29.7 cm
– Code 39: 7.5 mil: 0.1 – 19.1 in./0.3 – 48.5 cm
– Code 39: 20 mil: 0 – 33.8 in./0 – 85.9 cm
– Code 39: 40 mil: 1 – 43.1 in./2.5 – 109.5 cm
– UPC: 13 mil (100%): 0 – 25.1 in./0 – 63.8 cm
