WHAT THIS PRODUCT DOES

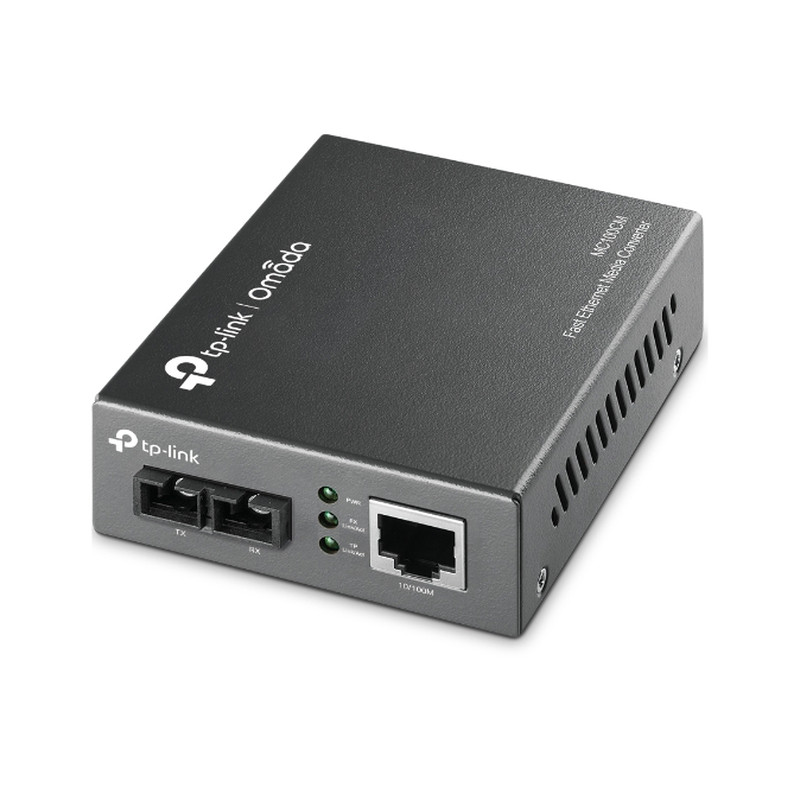

– The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa
– Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector
– The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data
– Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKs TL-MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode
– The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers
Features
– Complies with 802.3u 10/100Base-TX, 100Base-FX standards
– Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
– Extends fiber distance up to 2km
Specifications
MEDIA CONVERTER & MODULE
– Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
– Basic Function:
* Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
* Full Duplex Flow Control (IEEE 802.3x)
* Half Duplex Flow Control (Backpressure)
* Extends fiber distance up to 2km
– Ports:
* 1× 100M SC/UPC port
* 1× 10/100M RJ45 port (Auto MDI/MDIX)
– Wave Length: 1310nm
– Network Media 10BASE-T:
* UTP category 3, 4, 5 cable (max. 100m)
* EIA/TIA-568 100Ohm STP (max. 100m)
– Network Media 100BASE-T:
* UTP category 5, 5e cable (max. 100m)
* EIA/TIA-568 100Ohm STP (max. 100m)
– Network Media 100BASE-FX: Multi-mode Fiber
– LED Indicators: Power, Link/Act
– Dimensions (W×D×H): 94.5×73.0×27.0 mm
– Power Supply: External power supply
– Max Power Consumption: 2.4W
– Safety & Emission: FCC, CE, RoHS
– Environment:
* Operating Temperature: 0C – 40C (32F – 104F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing
