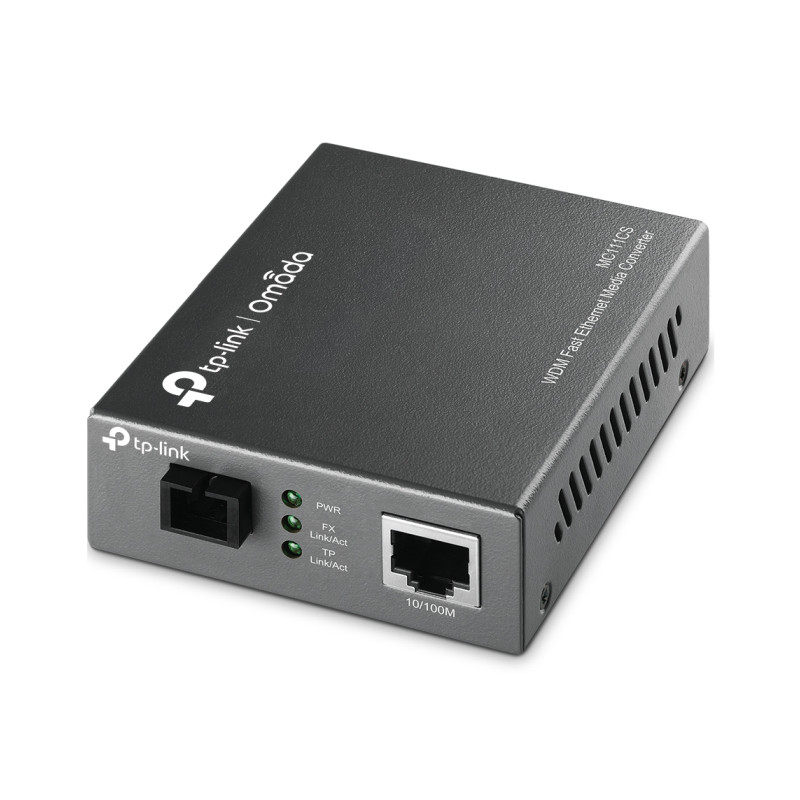

TP-Link 100M WDM optički pretvarač, 10/100M RJ45 u 100M Single-mode SC, Full-duplex,Tx:1550nm, Rx:1310nm, do 20km

– Standards and Protocols: EEE 802.3, IEEE 802.3u, IEEE 802.3x
– Basic Function:
* Adopts WDM technology
* Half/Full-Duplex transfer mode for FX port
* Full Duplex Flow Control (IEEE 802.3x)
* Half Duplex Flow Control (Backpressure)
* Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
* Extends fiber distance up to 20km
– Ports:
* 1× 100M SC port
* 1× 100M RJ45 port (Auto MDI/MDIX)
– WDM TX: 1550nm
– Wave Length: 1550nm Tx/1310nm Rx
– WDM RX: 1310nm
– Network Media 10BASE-T:
* UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
– Network Media 100BASE-T:
* UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
– Network Media 100BASE-FX: Single-mode Fiber
– LED Indicators: PWR, FDX/Col, Link/Act, SPD
– Dimensions (W*D*H): 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
– Power Supply: External Power Adapter
– Safety & Emission: FCC, CE, RoHS
– Environment: Operating Temperature:0?~40? (32?~104?)
– Storage Temperature:-40?~70? (-40?~158?)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
