– The new successful Gaming series combines high performance with a low noise level and high effciency
– The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming
– Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past
– Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case
Features

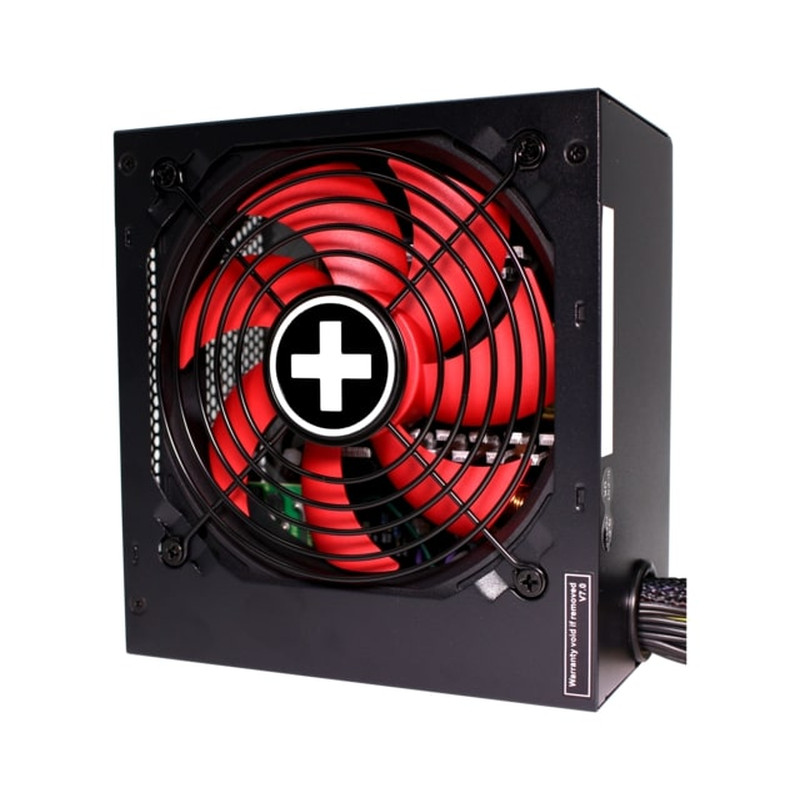

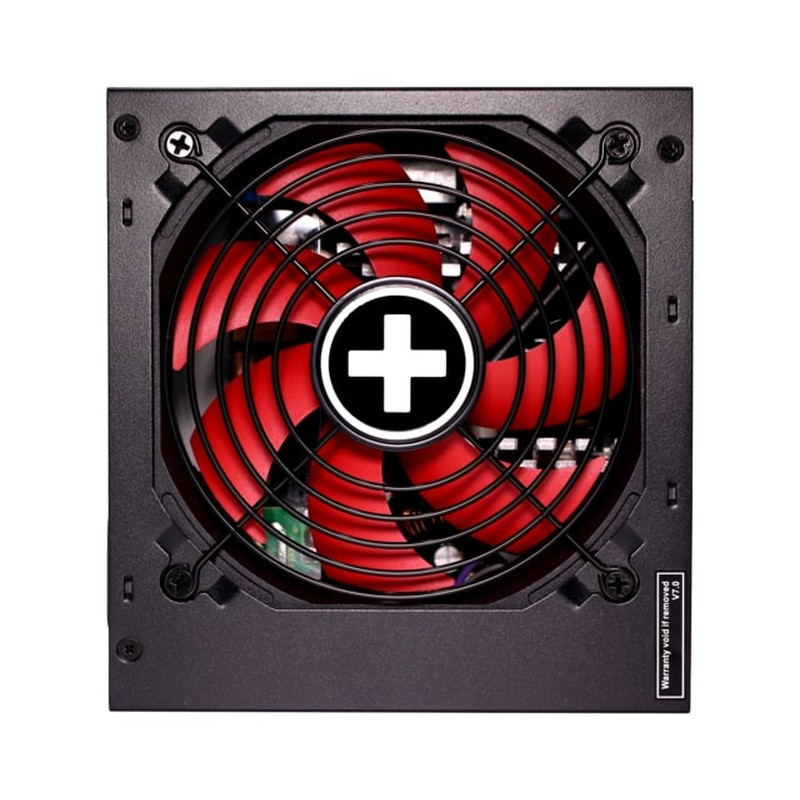

– Extremely silent cooling: large 120mm fan
– Excellent air flow design for a better heat dissipation
– Full safety design:
* OVP (Over Voltage Protection)
* UVP (Under Voltage Protection)
* SCP ( Short Circuit Protection)
* OPP (Over Power Protection)
– Low stand-by consumption

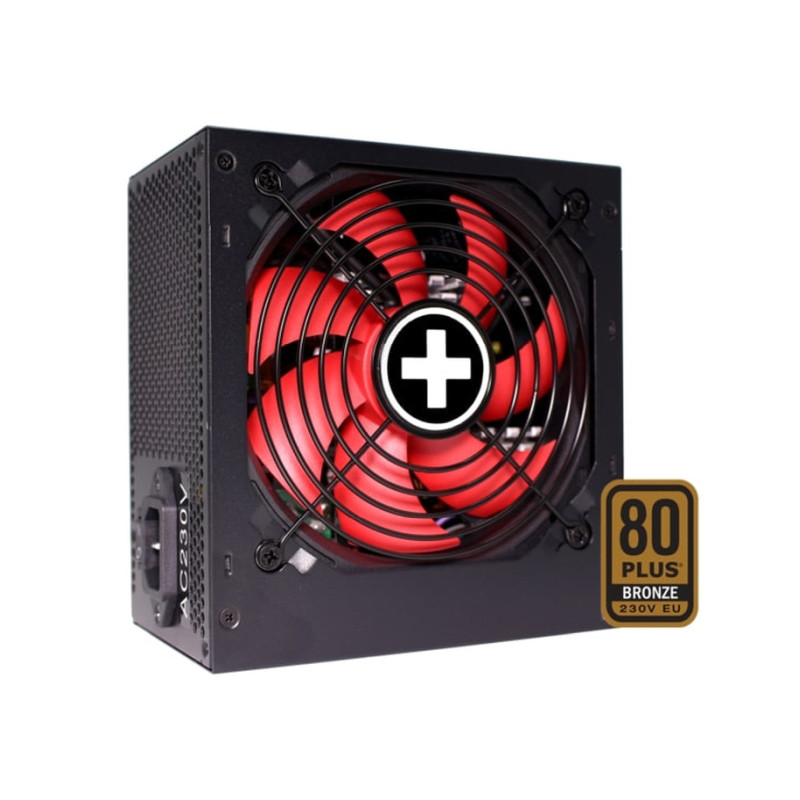

– High energy efficiency: 80+ BRONZE® certified (complies with ErP2014 norm)
– Active-PFC

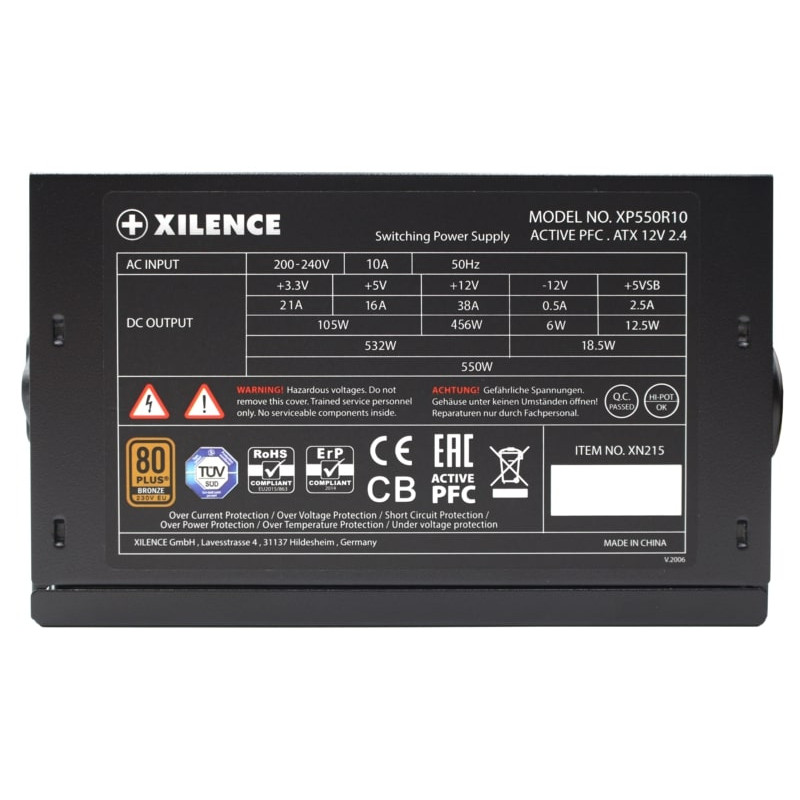

Technical data
GENERAL
– Continuous power: 550 W
– Form factor ATX 12V: Version 2.4
– Voltage: 200 – 240 Vac
– Model: Gaming
– Frequency: 50 Hz
– Input current: 10 A
– PFC: Active
OUTPUT
+3.3V: 21 A
+5V: 16 A
+12V1: 38 A
-12V: 0.5 A
+5Vsb: 2.5 A
– Max. combined power 12V: 456 W
– Max. combined power 3.3V + 5V: 105 W
FAN / COOLING TECHNOLOGY
– Bearing technology: FDB
– Fan size: 120 mm
PROTECTION
– OVP (over voltage protection)
– UVP (under voltage protection)
– SCP (short circuit protection)
– OPP (over power protection)
ECO / EFFICIENCY
– 80PLUS certification: Bronze
– Efficiency @ 230V, 20% load: >85%
– Efficiency @ 230V, 50% load: >88%
– Efficiency @ 230V, 100% load: >85%
CABLE MANAGEMENT / CONNECTORS
– Cable length to mainboard: 500 mm
– Cable length to first connector: 450 mm
– Maximum cable length: 900 mm
– No. of cables: 6
– ATX-Motherboard (20+4-pin): 1
– P4 (CPU): 1
– PCI-E 6+2-pin (GPU): 2
– PATA 4-pin: 3
– SATA 15-pin (HDD, Drives): 6
– FDD (Floppy): 1
ENVIRONMENTA DIRECTIVES
– ErP
– WEEE
– RoHS
