BREAKTHROUGH DESIGN AND PERFORMANCE
– The innovative airMAX Sector Antennas feature carrier-class construction and 2×2, dual-polarity performance
REDUCED INTERFERENCE, HIGHER GAIN
– Highly resistant to noise interference, the airMAX Sector Antennas provide superior gain and beam performance for high-capacity, multipoint networks
RF ISOLATION AND BEAMWIDTH OPTIONS
– The versatile airMAX Titanium Sector models feature advanced RF isolation and adjustable beamwidth options: 60°, 90° or 120°
INDUSTRIAL-STRENGTH CONSTRUCTION
– airMAX Antennas are designed with robust mechanical design for outdoor application use
PLUG and PLAY INTEGRATION

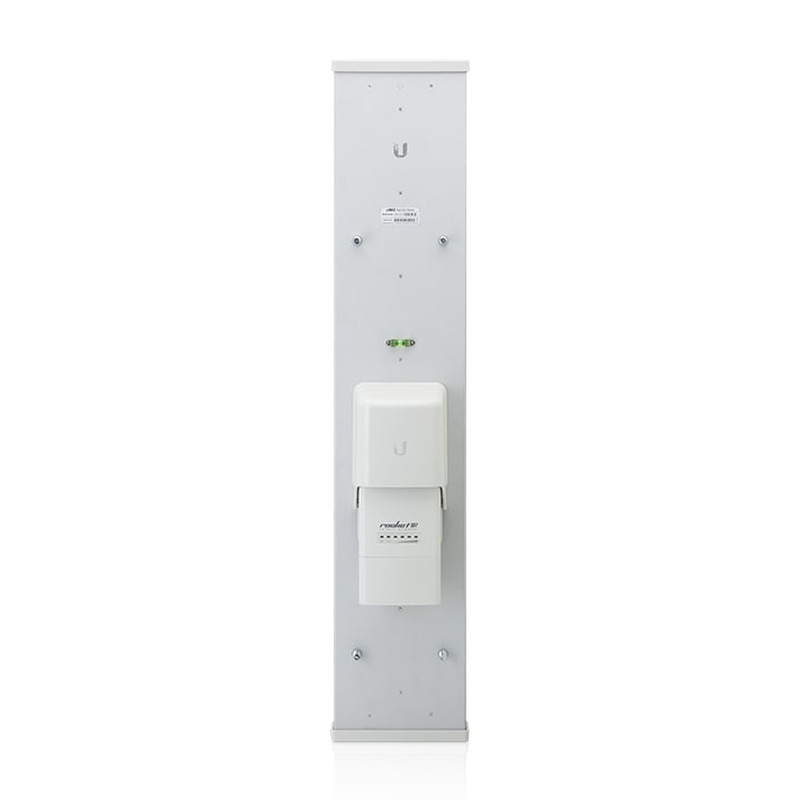

– Every airMAX Antenna has a built-in Rocket mount, so no tools are needed to install the Rocket BaseStation
Specifications
– Frequency Range: 2.3 – 2.7 GHz
– Gain: 16.0 – 17.0 dBi
– HPOL Beamwidth: 91° (6 dB)
– VPOL Beamwidth: 90° (6 dB)
– Electrical Beamwidth: 9°
– Electrical Downtilt: 4°
– Max. VSWR: 1.5:1
– Wind Survivability: 125 mph
– Wind Loading: 19 lbf @ 100 mph
– Polarization: Dual-Linear
– Cross-pol Isolation: 28 dB Min.
– Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
– Dimensions: 700×145×79 mm
* Dimensions exclude pole mount and RocketM (RocketM sold separately)
– Weight: 3.9 kg
* Weight includes pole mount and excludes RocketM (RocketM sold separately)
