Features
– 62W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62W
– Full Gigabit Ports: 4× gigabit PoE+ ports and 4× gigabit non-PoE ports provide high-speed connections
– Integrated into Omada SDN: Centralized Cloud Management, and Intelligent Monitoring
– Centralized Management: Cloud access and Omada app for ultra convenience and easy management
– Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
– Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
Specifications
HARDWARE FEATURES
– Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
– Interface:

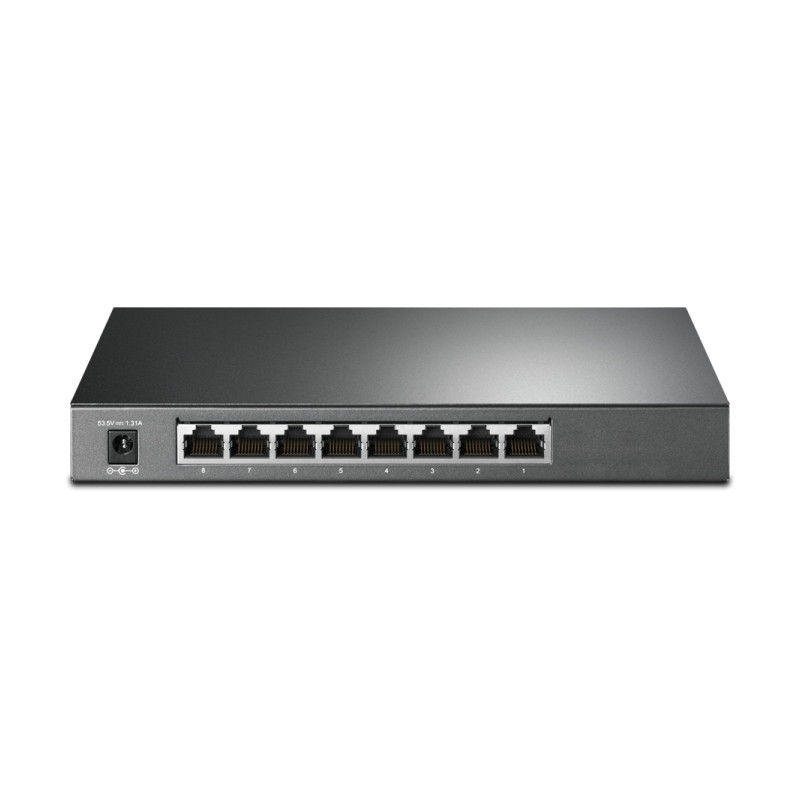

* 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)
* Auto-Negotiation/Auto MDI/MDIX
– Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
– Fan Quantity: Fanless
– Power Supply: External Power Adapter (Output: 53.5 VDC/ 1.31 A)
– Power Consumption:
* 7.9 W (220 V/50 Hz) (no PD connected)
* 79.2 W (220 V/50 Hz) (with 62 W PD connected)
– PoE Ports (RJ45):
* Standard: 802.3af/at compliant
* PoE Ports: 4 Ports
* Power Supply: 62 W*
– Dimensions (W×D×H): 209×126×26 mm
PERFORMANCE
– Bandwidth/Backplane: 16 Gbps
– MAC Address Table: 8k
– Packet Buffer Memory: 4.1 Mbit
– Jumbo Frame: 9 KB
SOFTWARE FEATURES
– Quality of Service:
* 802.1p CoS/DSCP priority
* 8 priority queues
* Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
* Queue Weight Config
* Bandwidth Control: Port/Flow-based Rating Limit
* Smoother Performance
* Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
– L2 and L2+ Features:
* DHCP Relay: DHCP VLAN Relay
* DHCP L2 Relay
* Link Aggregation: Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group
* Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter/Protect, Root Protect
* Loopback Detection
* Flow Control: 802.3x Flow Control
* Mirroring: Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both
* Device Link Detect Protocol (DLDP)
* 802.1ab LLDP/ LLDP-MED
– L2 Multicast:
* 511 IPv4, IPv6 shared multicast groups
* IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config
* Multicast VLAN Registration (MVR)
* Multicast Filtering
* MLD Snooping: MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config
* Limited IP Multicast (256 profiles and 16 entries per profile)
– IPv6 Support:
* IPv6 Dual IPv4/IPv6
* Multicast Listener Discovery (MLD) Snooping
* IPv6 neighbor discovery (ND)
* Path maximum transmission unit (MTU) discovery
* Internet Control Message Protocol (ICMP) version 6
* TCPv6/UDPv6
* IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
– VLAN:
* VLAN Group: Max. 4K VLAN Groups
* 802.1Q tag VLAN
* MAC VLAN
* Protocol VLAN
* GVRP
* Voice VLAN
– Access Control List:
* Support up to 230 entries
* Time-Range: Time Slice, Week Time-Range, Absolute Time-Range, Holiday
* Time-based ACL
* MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
* IP ACL: Source IP, Destination IP, IP Protocol, TCP Flag, TCP/UDP Source Port, TCP/UDP Destination Port, DSCP/IP TOS
* IPv6 ACL
* Combined ACL
* Rule Operation: Permit/Deny
* Policy Action: Mirror, Rate Limit, Redirect, QoS Remark
* ACL Rules Binding: Port Binding, VLAN Binding
* Actions for flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark
– Security:
* AAA
* 802.1X: Port-based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability
* IP/IPv6-MAC Binding: 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection
* IP Source Guard: 253 Entries, Source IP+Source MAC
* IPv6 Source Guard: 183 Entries, Source IPv6 Address+Source MAC
* DoS Defend
* Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
* Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
* Port Isolation
* Secure web management through HTTPS with SSLv3/TLS 1.2
* Secure Command Line Interface (CLI) management with SSHv1/SSHv2
* IP/Port/MAC-based access control
– MIBs:
* MIB II (RFC1213)
* Bridge MIB (RFC1493)
* P/Q-Bridge MIB (RFC2674)
* Radius Accounting Client MIB (RFC2620)
* Radius Authentication Client MIB (RFC2618)
* Remote Ping, Traceroute MIB (RFC2925)
* Support TP-Link private MIBs
* RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
– Omada App: Yes
– Centralized Management:
* Omada Hardware Controller (OC300)
* Omada Hardware Controller (OC200)
* Omada Software Controller
– Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
– Management Features:
* Web-based GUI
* Command Line Interface (CLI) through telnet
* SNMPv1/v2c/v3
* SNMP Trap/Inform
* RMON (1,2,3,9 groups)
* SDM Template
* DHCP/BOOTP Client
* Dual Image, Dual Configuration
* CPU Monitoring
* Cable Diagnostics
* EEE
* SNTP
* System Log
OTHERS
– Certification: CE, FCC, RoHS
– Package Contents: TL-SG2008P, Power Adapter, Installation Guide, Rubber Feet
– System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10, MAC OS, NetWare, UNIX or Linux
– Environment:
* Operating Temperature: 0C to 40 (32F to 104)
* Storage Temperature: -40C to 70 (-40F to 158)
* Operating Humidity: 10% – 90% RH non-condensing
* Storage Humidity: 5% – 90% RH non-condensing
