Ultra-Fast WiFi 6 Speeds:
– Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
High-Efficiency WiFi 6:
– More connected devices can enjoy faster speeds.
Centralized Cloud Management:
– Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel:
– Double the data at peak transmission times on a single stream with HE160.
Seamless Roaming:
– Video streams and voice calls are unaffected as users move between locations.
Omada Mesh:
– Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ Powered:
– Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.
Ultra-Slim Design:
– ?160 mm × 33.6 mm elegant design brings more agility.
Specifications
HARDWARE FEATURES

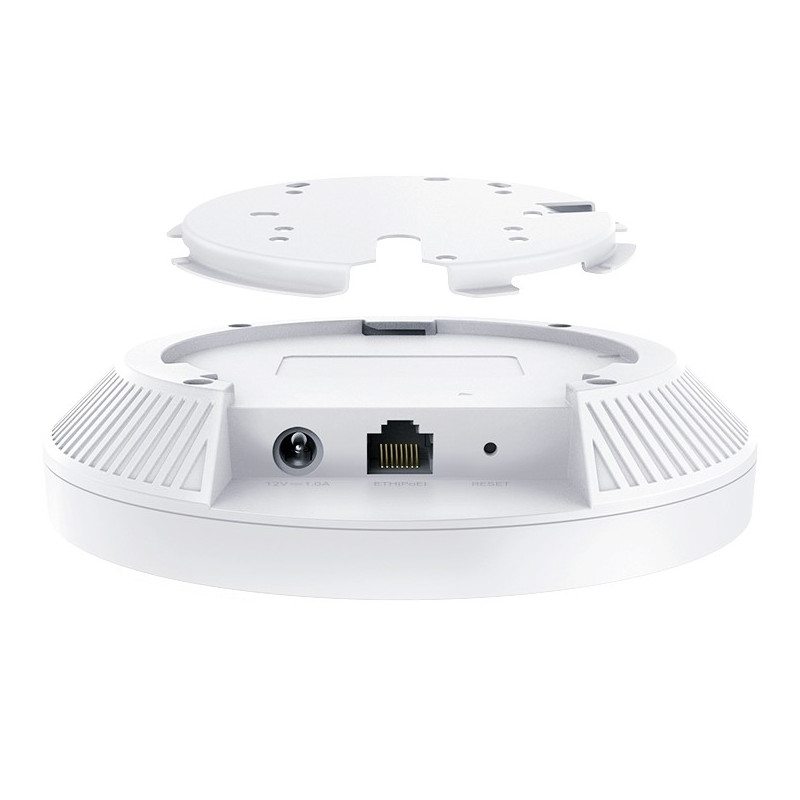

– Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
– Button: Reset
– Power Supply
• 802.3at PoE
• 12V DC (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC).
*Note: DC adapter is not included in the package, and is sold separately
• 48V Passive PoE
– Power Consumption
• EU: 13.07 W
• US: 13.98 W
– Dimensions ( W x D x H ): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
– Antenna Type: Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
– Mounting
• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting
WIRELESS FEATURES
– Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
– Frequency: 2.4 GHz and 5 GHz
– Signal Rate
• 5 GHz: Up to 2402 Mbps†
• 2.4 GHz: Up to 574 Mbps†
– Wireless Functions
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
– Wireless Security
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
– Transmission Power
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<27 dBm(5 GHz, Band3, EIRP)
• FCC:
<22 dBm (2.4 GHz)
<22 dBm (5 GHz)
MANAGEMENT
– Omada App: Yes
– Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
– Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
– Email Alerts: Yes
– LED ON/OFF Control: Yes
– Management MAC Access Control: Yes
– SNMP: v1, v2c, v3
– System Logging Local/Remote Syslog: Local/Remote Syslog
– SSH: Yes
– Web-based Management: HTTP/HTTPS
– L3 Management: Yes
– Multi-site Management: Yes
– Management VLAN: Yes
– Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
– Certification: CE, FCC, RoHS
– Package Contents
• EAP653
• Ceiling/Wall Mounting Kits
• Installation Guide
* Note: DC adapter is not included in the package, and is sold separately.
– System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
– Environment
• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
