Blazing-Fast AX3000 WiFi 6 Speeds:
– 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps WiFi speeds.
Multiple Gigabit Ports:
– Connect multiple devices with 4× Gigabit Ethernet Ports.
Convenient Deployment:
– Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
No Installation needed:
– Supports desktop installation without the need for additional setup.
High Flexibility:
– Provide flexible installation solutions for both desktop and wall mounting.
Stay Smooth with Seamless Roaming:
– Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.
Centralized Cloud Management:
– Integrates with the Omada SDN platform for Centralized Management.
Specifikacije
HARDWARE FEATURES

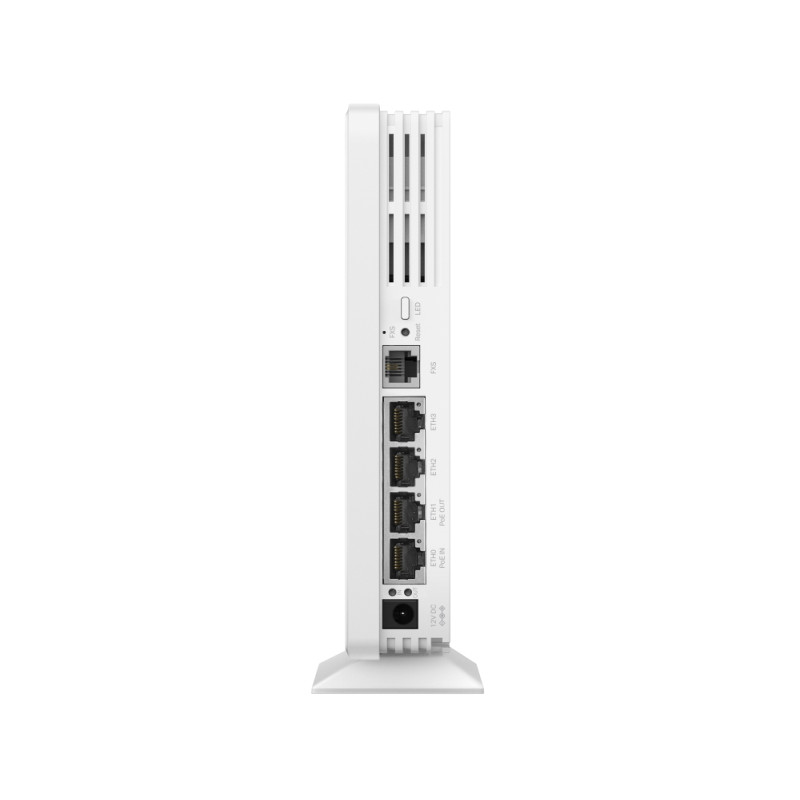

– Interface: 4× 1Gbps Ethernet Ports + 1× FXS Port (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)
– Button
* Reset
* LED
– Power Supply: 802.3 af/at/bt PoE or 12V/1.5A DC
* PoE Out requires 802.3at/bt PoE power supply
– Power Consumption: 17.3W (PoE Out Off)
– Weight: 452g (excluding mounting base)
– Dimensions ( W x D x H ): 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
– Antenna Type: Internal Omni
* 2.4 GHz: 2× 5 dBi
* 5 GHz: 3× 4.7 dBi
– Range: 140?(1500 ft2)

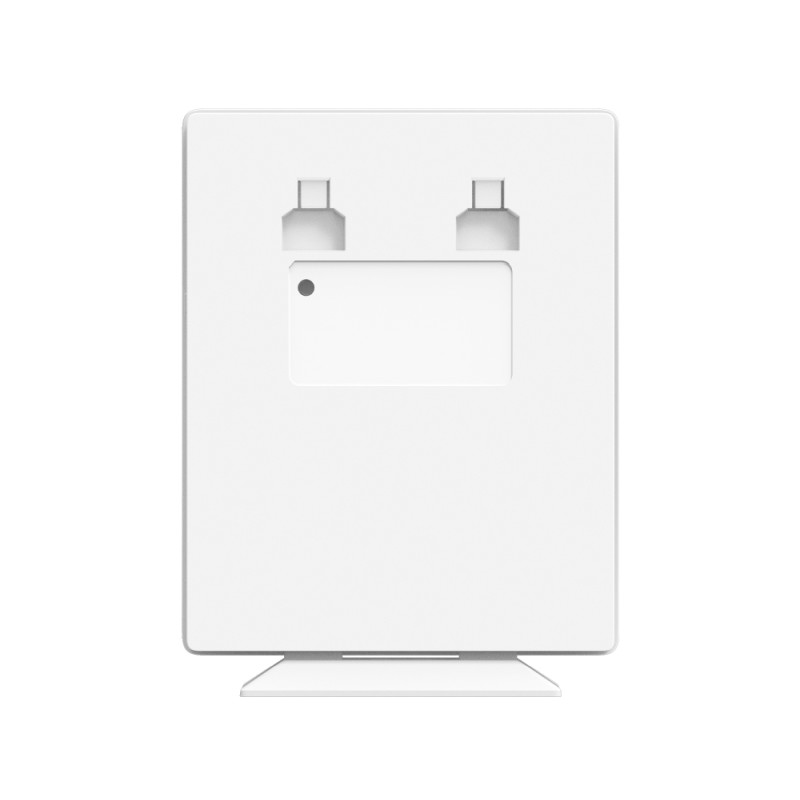

– Mounting: Desktop / Wall mouting (Kits included)
WIRELESS FEATURES
– Concurrent Clients: 250+
– Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
– Frequency: 2.4 GHz and 5 GHz
– Signal Rate
* 5 GHz: 2402 Mbps
* 2.4 GHz: 574 Mbps
– Wireless Functions
* 2×2 (2.4G & 5G) MU-MIMO‡
* HE160 (160 MHz Bandwidth)‡
* OFDMA‡
* Seamless Roaming §
* Multiple SSIDs (16 SSIDs, 8 on each band)
* Enable/Disable SSID Broadcast
* Enable/Disable Wireless Radio
* Guest Network
* Automatic Channel Assignment
* Beamforming
* Rate Limit (Based on SSID/Client)
* Band Steering
* Load Balance
* Airtime Fairness
* Transmit Power Control (Adjust Transmit Power on dBm)
* QoS (WMM)
* RADIUS Accounting
* MAC Authentication
* Reboot Schedule
* Wireless Schedule and Statistics
* Static IP/Dynamic IP
– Wireless Security
* Captive Portal Authentication§
* Access Control
* Wireless Mac Address Filtering
* Wireless Isolation Between Clients
* VLAN
* Rogue AP Detection
* 802.1X Support
* WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
– Transmission Power
* CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<29 dBm(5 GHz, band3, EIRP)
* FCC:
<26 dBm (2.4 GHz)
<27 dBm (5 GHz)
MANAGEMENT
– Omada App: Yes
– Centralized Management
* Omada Hardware Controller
* Omada Software Controller
* Omada Cloud-Based Controller
– Cloud Access: Yes.
– Email Alerts: Yes
– LED ON/OFF Control: Yes
– Management MAC Access Control: Yes
– SNMP: v1, v2c, v3
– System: Logging Local/Remote Syslog System Log
– SSH: Yes
– Web-based Management: Yes
– Zero-Touch Provisioning: Yes.Reauire the use of Omada Cloud-Based controller
OTHERS
– Certification: CE, FCC, RoHS, IC
– Package Contents
* EAP650-Desktop
* Desktop/Wall Mounting Kit
* Installation Guide
– System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
– Environment
* Operating Temperature: 0–40 ? (32–104 ?)
* Storage Temperature: -40–70 ? (-40–158 ?)
* Operating Humidity: 10–90% RH non-condensing
* Storage Humidity: 5–90% RH non-condensing
