– Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
– Free EAP Controller Software lets administrators easily manage hundreds of EAPs
– Compatibility with 802.3af and Passive PoE (PoE adpater included) support makes deployment effortless and flexible
– Captive portal provides a convenient method for guest authentication
– Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
– MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
– Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
– Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
HARDWARE FEATURES

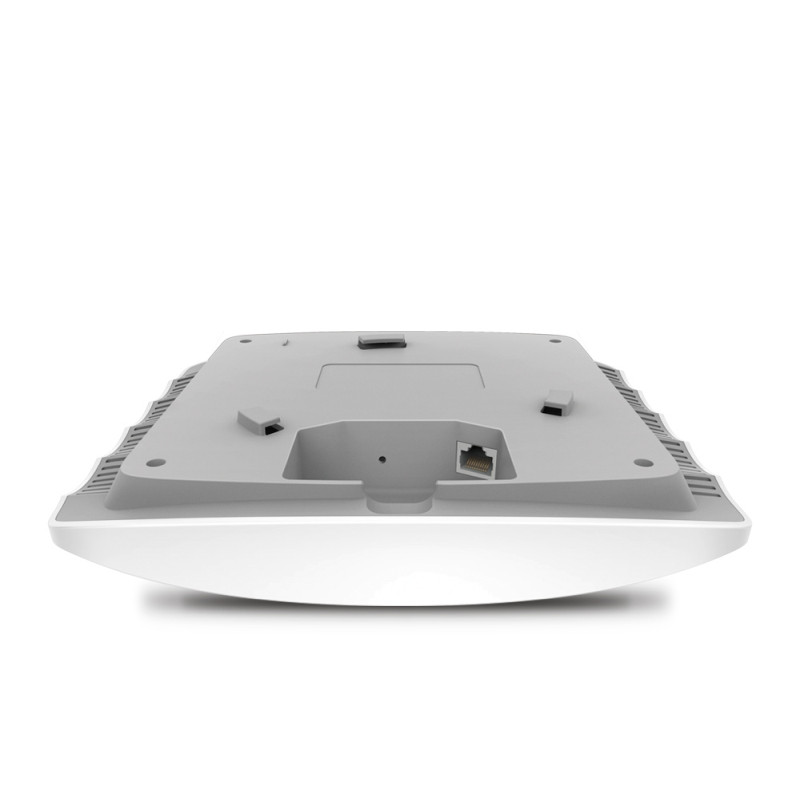

– Interface: Gigabit Ethernet (RJ-45) Port ×1 (Support IEEE802.3af PoE and Passive PoE)
– Button: Reset
– Power Supply: 802.3af PoE and passive PoE
– Power Consumption: 10.5 W
– Dimensions: 205.5×181.5×37.1 mm
– Antenna Type:
* 3 Internal Omni
* 2.4GHz: 4dBi
* 5GHz: 5dBi
– Mounting: Ceiling /Wall Mounting (Kits included)
– Physical Security Lock: Yes
– Hardware Watch Dog: Yes
WIRELESS FEATURES
– Wireless Standards: IEEE 802.11ac/n/g/b/a
– Frequency: 2.4GHz and 5GHz
– Signal Rate:
* 5GHz:Up to 867Mbps
* 2.4GHz:Up to 450Mbps
– Wireless Functions:
* Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
* Enable/Disable Wireless Radio
* Automatic Channel Assignment
* Transmit Power Control (Adjust Transmit Power on dBm)
* QoS(WMM)
* Band Steering
* Load Balance
* MU-MIMO
* Airtime Fairness
* Beamforming
* Rate Limit
* Reboot Schedule
* Wireless Schedule
* Wireless Statistics based on SSID/AP/Client
– Wireless Security:
* Captive Portal Authentication
* Access Control
* Wireless Mac Address Filtering
* Wireless Isolation Between Clients
* SSID to VLAN Mapping
* Rogue AP Detection
* 802.1X Support
– Transmission Power:
* CE:
<20dBm (2.4GHz,EIRP)
<23dBm (5GHz,EIRP)
* FCC:
<24dBm (2.4GHz)
<22dBm (5GHz)
MANAGEMENT
– EAP Controller Software: Yes
– Email Alerts: Yes
– LED ON/OFF Control: Yes
– Management MAC Access Control: Yes
– SNMP: v1,v2c
– System Logging Local/Remote Syslog: Local/Remote Syslog
– Telnet: Yes
– Web-based Management: HTTP/HTTPS
– L3 Management: Yes
– Multi-site Management: Yes
– Management VLAN: Yes
OTHERS
– Certification: CE, FCC, RoHS
– System Requirements: Microsoft Windows XP/Vista/7/8/10, Linux
– Environment:
* Operating Temperature: 0C – 60C (32F – 144F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing

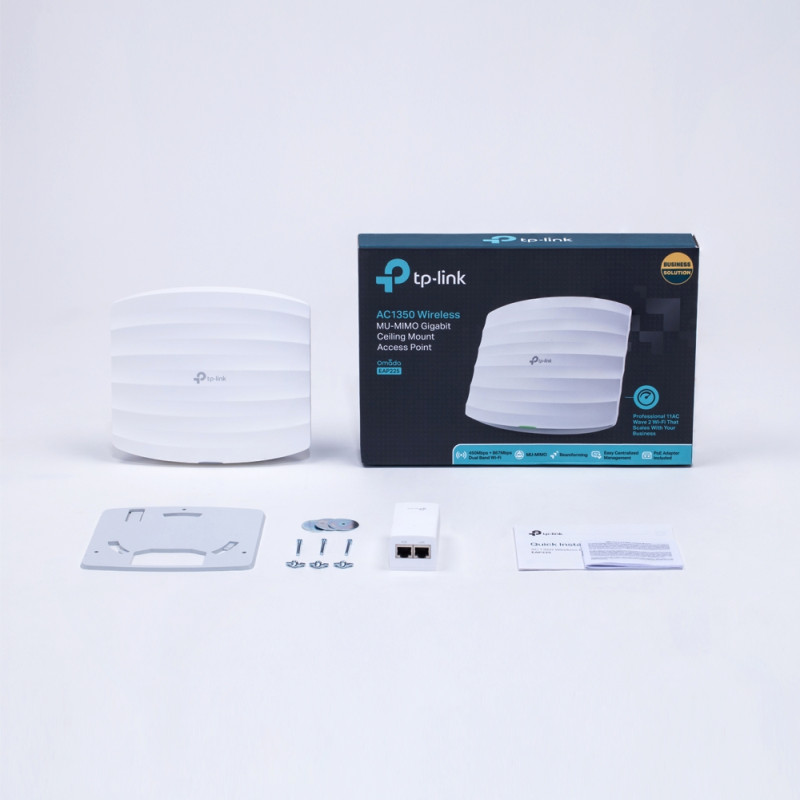

– Package Contents:
* AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
* Passive PoE Adapter
* Power Cord
* Mounting Kits
* Installation Guide
