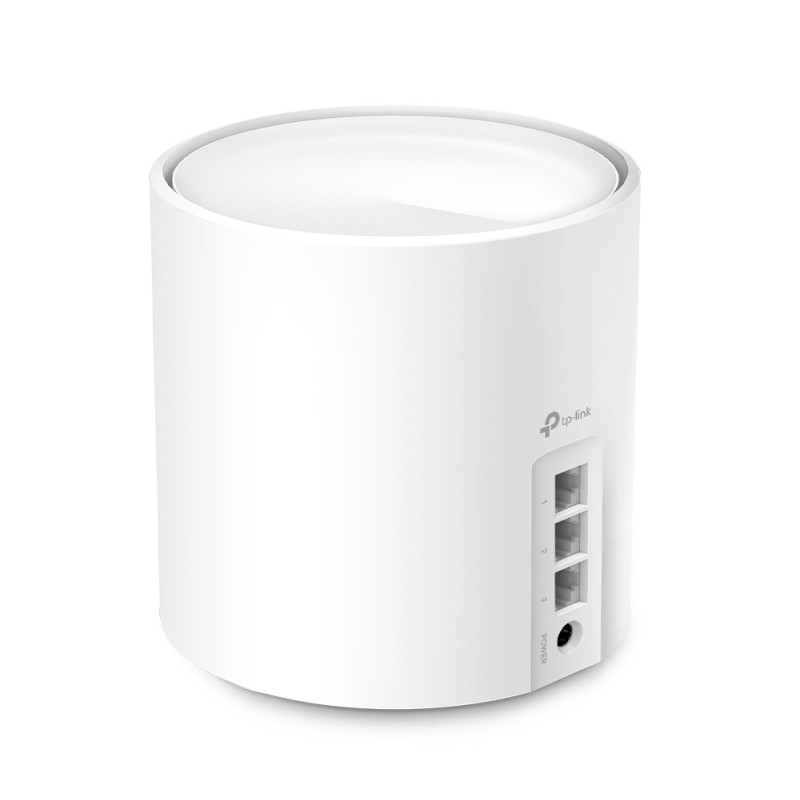

AX3000 Dual Band WiFi
– Super-fast WiFi 6 with speeds up to 3.0 Gbps
4 Streams, Less Lag
– 2×2/HE160 2402 Mbps + 2×2 574 Mbps
Gigabit Wired Speed
– 3× Gigabit ports provide sufficient connectivity
Boosted Seamless Coverage

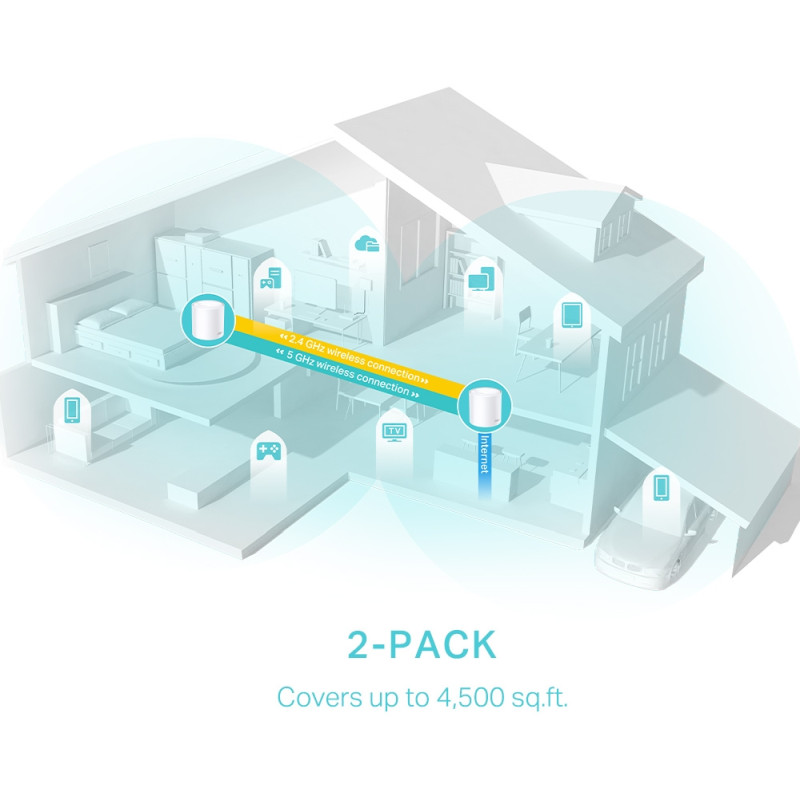

– Seamless mesh WiFi coverage up to 4,500 ft2 (2-pack)
AI-Driven Mesh
– Intelligently learns the network environment to provide ideal WiFi unique to your home
TP-Link HomeShield
– Provides comprehensive network protection, robust parental controls, and real-time IoT protection
Setup Made Easier Than Ever
– The Deco app walks you through the setup step-by-step
Specifications
WIRELESS
– Standards: Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
– WiFi Speeds: AX3000
• 5 GHz: 2402 Mbps (802.11ax, HE160)
• 2.4 GHz: 574 Mbps (802.11ax)
– WiFi Range: 3-4 Bedroom Houses (2-pack)
• TP-Link Mesh Technology: Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
• AI-Driven Mesh: Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
• 2× Antennas (Internal): Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
– WiFi Capacity: High
• Dual-Band: Distribute devices to different bands for optimal performance
• 2×2 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
• OFDMA: Simultaneously communicates with multiple WiFi 6 clients
• 4 Streams; More than enough bandwidth for connected devices
– Working Modes
• Router Mode
• Access Point Mode
SECURITY
– Network Security
• SPI Firewall
• Access Control
– HomeShield Security
• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner
– Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
– VPN Server
• Open VPN Server
• PPTP VPN Server
• L2TP VPN Server
– VPN Client
• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
– WiFi Encryption
• WPA-Personal
• WPA2-Personal
• WPA3-Personal
HARDWARE
– Button: Reset Button
– Ethernet Ports: 3× Gigabit Ports
*Per Deco Unit
– Supports WAN/LAN auto-sensing
SOFTWARE
– Advanced Features
• Reboot Schedule
• Tapo/Kasa onboarding
• IoT network & Device Isolation
• Static Router Function
• Node/Band Connection Preference
– Protocols
• IPv4
• IPv6
– Service Kits: HomeShield
– Parental Controls:
• HomeShield Parental Controls
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
– WAN Types
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
– Quality of Service
• HomeShield QoS
• QoS by Device
– Cloud Service
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
– NAT Forwarding
• Port Forwarding
• UPnP
– IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
– DHCP
• Address Reservation
• DHCP Client List
• Server
– DDNS: TP-Link
– Management: Deco App
TEST DATA
– WiFi Transmission Power
– CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
– FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)
PHYSICAL
– Dimensions (W×D×H): 4.33 × 4.33 × 4.49 in (110 × 110 × 114 mm)
– Package Contents

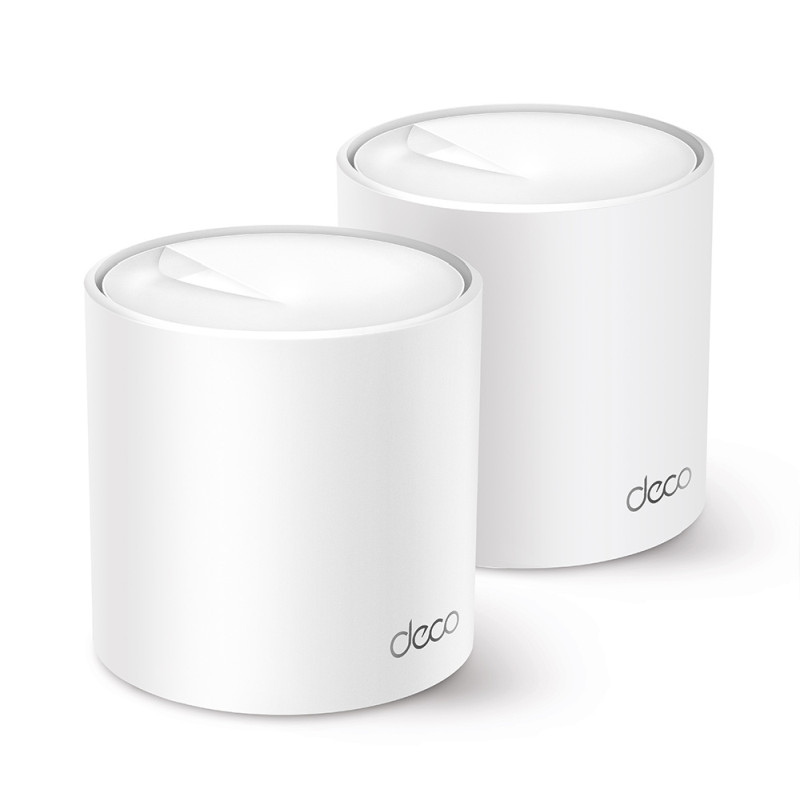

• 2 Deco X55 units
• 1 RJ45 Ethernet cable
• 2 Power adapters
• 1 Quick Installation Guide
OTHERS
– System Requirements
• Android 5.0 or later
• iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.
– Certifications: CE, FCC, RoHS, RCM
– Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
– Storage Temperature: -40°C~70°C (-40°F~158°F)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
