Ultra-Fast Broadband Connection:
– Supports Sub-6 GHz 5G technology boosts download speeds up to 3.4 Gbps
Ultra-Low Latency:
– 5G brings responsive network connections with only 1 ms latency
AX3000 Dual-Band Wi-Fi 6 Speed:
– 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
2.5 Gigabit Wired Connections:
– 1× 2.5 Gbps port + 2× Gigabit port
Mesh Network:
– Deco mesh technology ensures strong Wi-Fi signals everywhere
Flexible Network Access:
– 4G, 5G, Fixed-Line Internet Access
Simplified Setup:
– Easily set up and manage your network with the TP-Link Deco app
TP-Link HomeShield:
– Provides comprehensive network protection, robust parental controls, and real-time loT security
Specifications
WIRELESS
– Standards: Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
– WiFi Speeds: AX3000
• 5 GHz: 2402 Mbps (802.11ax)
• 2.4 GHz: 574 Mbps (802.11ax)
– WiFi Range:
– 1-3 Bedroom Houses (1-pack)
• TP-Link Mesh Technology: Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
– 4× LTE/5G internal antennas + 2× Wi-Fi internal antennas + 2× external antenna interface
– Multiple antennas form a signal-boosting array to cover more directions and large areas
– WiFi Capacity: High
• Dual-Band: Distribute devices to different bands for optimal performance
• MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
• OFDMA: Simultaneously communicates with multiple WiFi 6 clients
• 4 Streams: More than enough bandwidth for connected devices
– Working Modes: 5G/4G Router, Router, Access Point
SECURITY
– Network Security:
• SPI Firewall
• Access Control
• HomeShield Security
• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner
– Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
– WiFi Encryption
• WPA-Personal
• WPA2-Personal
• WPA3-Personal
HARDWARE

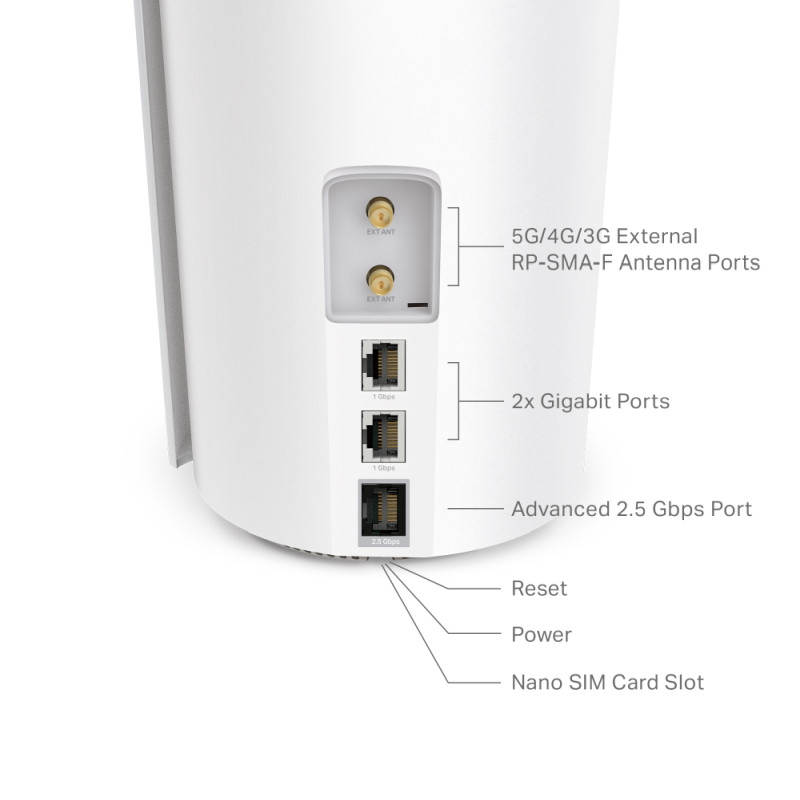

– Ports and Connections: 1× 2.5 Gigabit port + 2× 1 Gigabit ports (WAN/LAN auto-sensing)
– Compatibility
• 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
• 4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28
• 4G TDD-LTE: B38/B40/B41/B42/B43
• 3G: B1/B5/B8
SOFTWARE
– Protocols
• IPv4
• IPv6
– Service Kit: HomeShield
– WAN Types:
• Dynamic IP
• Static IP
• PPPoE
• L2TP
• PPTP
– Quality of Service
• HomeShield QoS
• QoS by Device
– Cloud Service:
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
– NAT Forwarding
• Port Forwarding
• UPnP
– IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
– DHCP
• Address Reservation
• DHCP Client List
• Server
– DDNS: TP-Link
– Management: Deco App
TEST DATA
– WiFi Transmission Power
CE:
• 20 dBm (2.4 GHz),
• 23 dBm (5 GHz)
PHYSICAL
– Dimensions (W×D×H): 8.3 × 5.1 × 4.8 in (210.5 × 130 × 123mm)
OTHERS
– Certification: RoHS, CE, RCM
– Package Contents
• 1 Deco X50-5G unit
• 1 RJ45 Ethernet Cable
• 1 Power Adapter
• Quick Installation Guide
– Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~60°C (-40°F~140°F)
• Operating Humidity: 10%~90%RH
• Storage Humidity: 5%~90%RH
