EXTEND AN AV1000 SPEED NETWORK TO ANY OUTLET
– No need for new wires or drilling
– Network passes through walls and floors
– Integrating advanced HomePlug AV2 technology, this kit provides users with high-speed data transfer rates up to 1000 Mbps, which is ideal for bandwidth-intensive applications such as simultaneous HD/3D/4K video streaming, online gaming, and large file transfers
– Just plug in and enjoy!

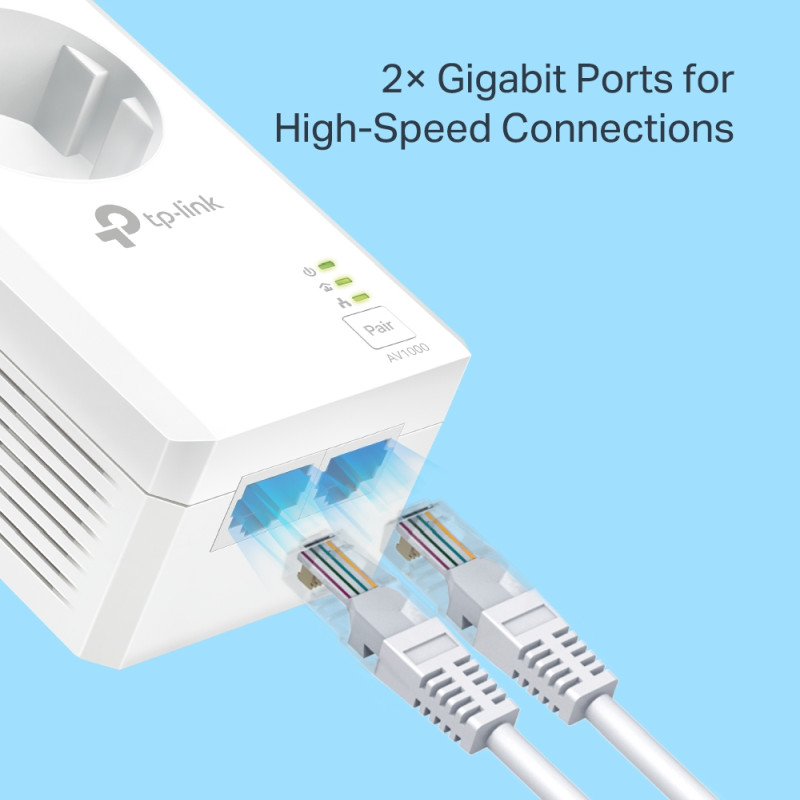

2× GIGABIT PORTS FOR HIGH-SPEE CONNECTIONS
– Provide reliable high-speed wired connections for game consoles, smart TVs, STBs, and more
DONT WORRY ABOUT OCCUPYING OUTLET
– Simply plug into your TL-PA7027P KIT as though it were a normal wall socket
– Feel free to plug in PCs, smart TVs, or other wired appliances without any performance differences
– The built-in noise filter helps prevent electrical signal noise from affecting your powerline performance
UP TO 85% POWER SAVED
– The futures looking green for powerline adapters. TL-PA7027P KITs practical design and sophisticated Power-Saving Mode, which automatically switches from its regular “Working” mode to “Power-Saving” mode, reduces its energy consumption by up to 85%
Features
– HomePlug AV2 Standard – high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
– 2 Gigabit Ports – provides secure wired networks for desktops, smart TVs or games consoles

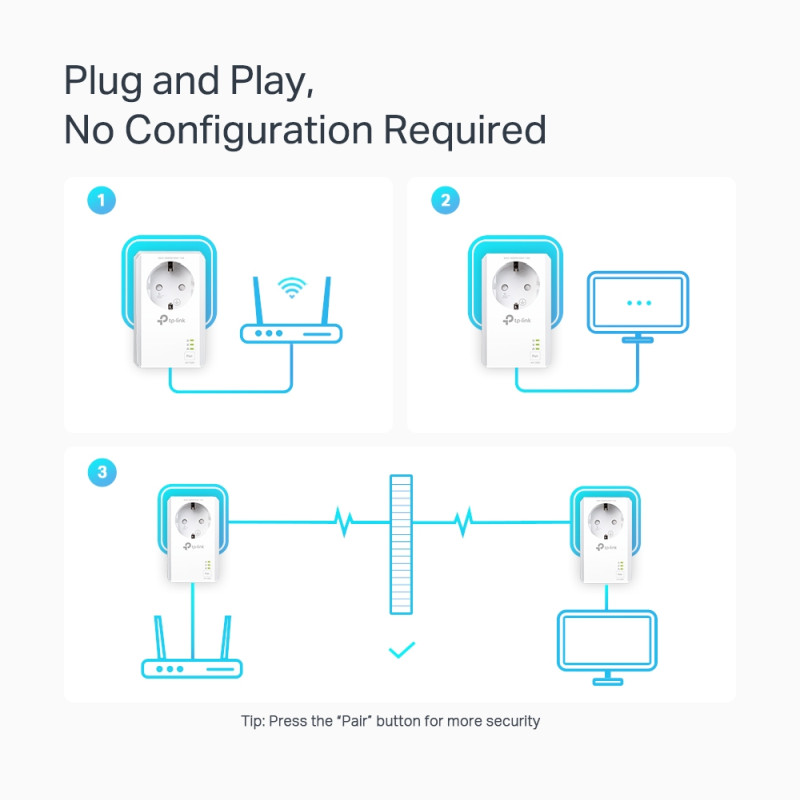

– Plug and Play – allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired connections right away
– Extra Power Socket – ensures no power outlet goes to waste
– Patented Power-Saving Mode – automatically reduces power consumption by up to 85%
Specifications
– HARDWARE FEATURES
– Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
– Interface: 2× Gigabit Ethernet Ports, Power Socket
– Button: Pair/Reset button
– Power Consumption: Maximum: 4 W, Standby: 0.84 W
– LED Indicator: Power, Powerline, Ethernet

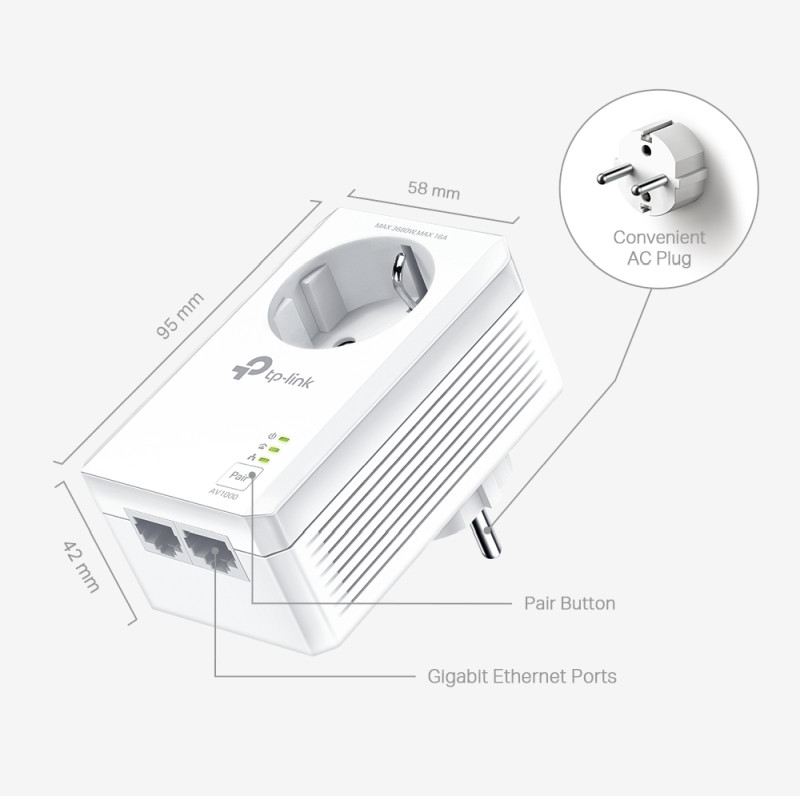

– Dimensions (W×D×H): 58×42×95 mm
– Range: Up to 300 meters/ 1,000 feet over existing electrical wiring
– Compatibility: Compatible with all HomePlug AV & HomePlug AV2 standard Powerline adapters
SOFTWARE FEATURES
– Modulation Technology: OFDM (PLC)
– Encryption: Powerline Security: 128-bit AES
OTHERS
– Certification: CE, RoHS

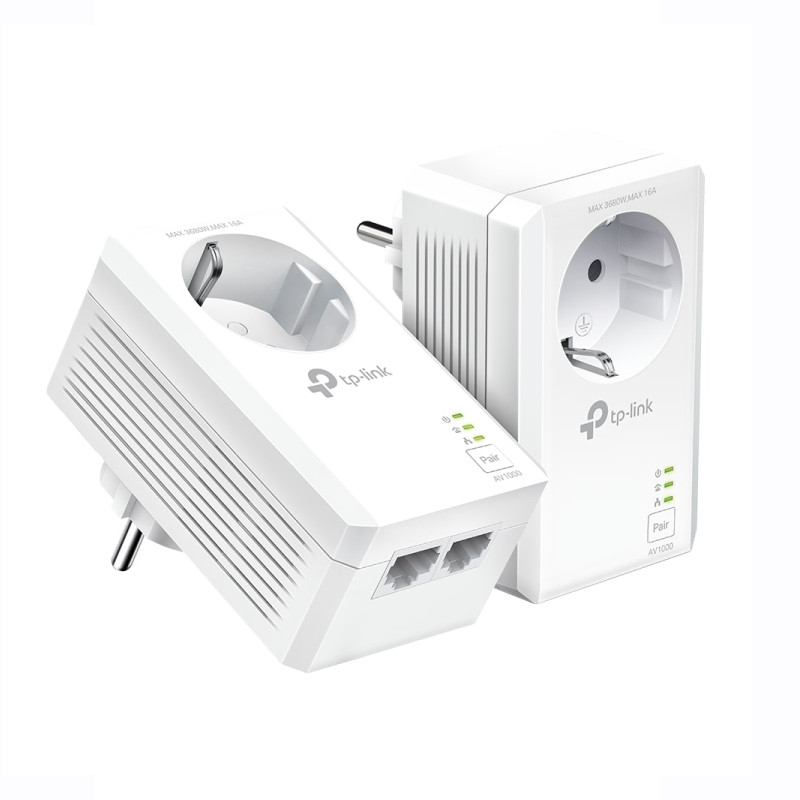

– Package Contents: AV1000 2-port Gigabit Passthrough Powerline Adapter:
* 2× TL-PA7027P
* 2× Ethernet Cables
* Quick Installation Guide
– System Requirements: Windows 8.1/8/7/Vista/XP, Mac OS, Linux
– Environment:
* Operating Temperature: 0C – 40C (32F – 104F)
* Operating Humidity: 10% – 90% non-condensing
