– xpand Wi-Fi Network for Ultimate Performance
– Expanded 450Mbps on 2.4GHz + 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
– Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections

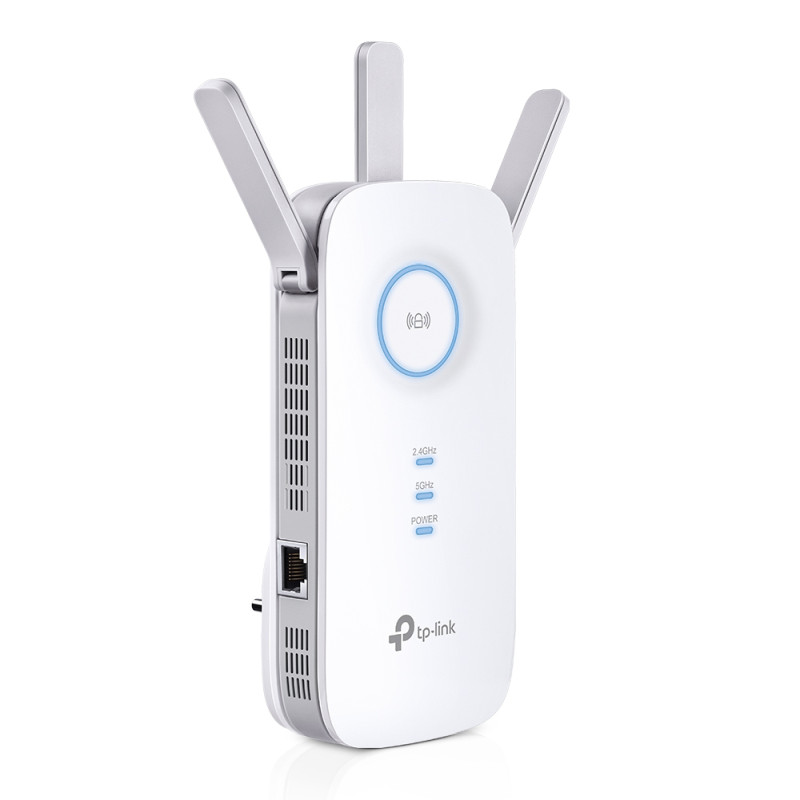

– Gigabit Ethernet port acts as a wireless adapter to connect a wired device to your network at gigabit speed
– Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
– Works with any Wi-Fi router or wireless access point
Specifications
HARDWARE FEATURES
– Standards and Protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
– Interface: 1× 10/100/1000M Ethernet Port (RJ45)
– Button: RE (Range Extender) Button, Reset Button, LED Button, Power Button
– Dimensions (W×D×H): 163×76.4×66.5 mm
– Power Consumption: 9W (max power consumption)
– Antenna: 3× external
WIRELESS FEATURES
– Frequency: 2.4GHz & 5GHz(11ac)
– Signal Rate:
* 5GHz:Up to 1300Mbps
* 2.4GHz:Up to 450Mpbs
– Reception Sensitivity:
* 5GHz:
11a 6Mbps:-93dBm@10% PER
11a 54Mbps: -76dBm@10% PER
11ac HT20 mcs8: -68dBm@10% PER
11ac HT40 mcs9: -64dBm@10% PER
11ac HT80 mcs9: -61dBm@10% PER
* 2.4GHz
11g 54M: -77dBm@10% PER
11n HT20 mcs7: -73dBm@10% PER
11n HT40 mcs7: -70dBm@10% PER
– Wireless Modes: Range Extender
– Wireless Functions:
* Wireless Statistic
* Concurrent Mode boost both 2.4G/5G WiFi band
* High Speed Mode for great speed for HD Gaming and video
* Access Control
* LED Control
* Domain Login Function
– Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK
– Transmission Power: <20dBm(2.4GHz), <23dBm(5GHz)
OTHERS
– Environment:
* Operating Temperature: 0C – 30C (32F – 86F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing
– Package Contents:
* AC1750 Wi-Fi Range Extender RE450
* RJ-45 Ethernet Cable
* Quick Installation Guide
