Features
– 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX

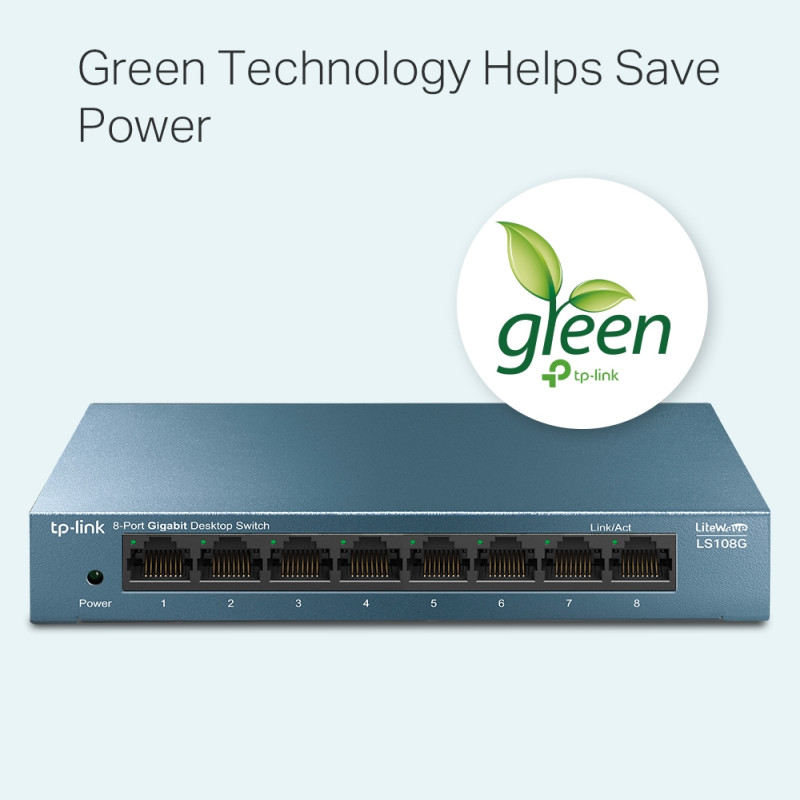

– Green Ethernet technology saves power
– IEEE 802.3X flow control provides reliable data transfer
– Steel housing, desktop or wall-mounting design
– Support 802.1p/DSCP QoS function
– Plug and play, no configuration needed
Specifications
HARDWARE FEATURES
– Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
– Interface: 8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
– Fan Quantity: Fanless
– External Power Supply: External Power Adapter
• V1, V3: 9VDC / 0.6A
• V2: 5VDC / 0.6A
– LED Indicator: System Power
– Link/Act indicators per port built into each RJ-45 port
– Dimensions ( W x D x H ): 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm)
– Max Power Consumption: 3.7W (220V/50Hz)
– Max Heat Dissipation: 12.617 Btu/hr
PERFORMANCE
– Packet Forwarding Rate: 11.9 Mpps
– MAC Address Table: 4K
– Packet Buffer Memory: 1.5 Mb
– Jumbo Frame: 16 KB
SOFTWARE FEATURES
– Advanced Features
• Green Technology
• 802.3X Flow Control
• 802.1P/DSCP QoS
– Transfer Method: Store and Forward
OTHERS
– Certification: CE, FCC, RoHS
– Package Contents
• 8-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• Installation Guide
– Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5%~90% non-condensing
