Features
– 8×10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
– Green Ethernet technology saves the power up to 82%
– IEEE 802.3x flow control provides reliable data transfer
– Steel housing, desktop or wall-mounting design
– Support 802.1p/DSCP QoS1 and IGMP Snooping function1

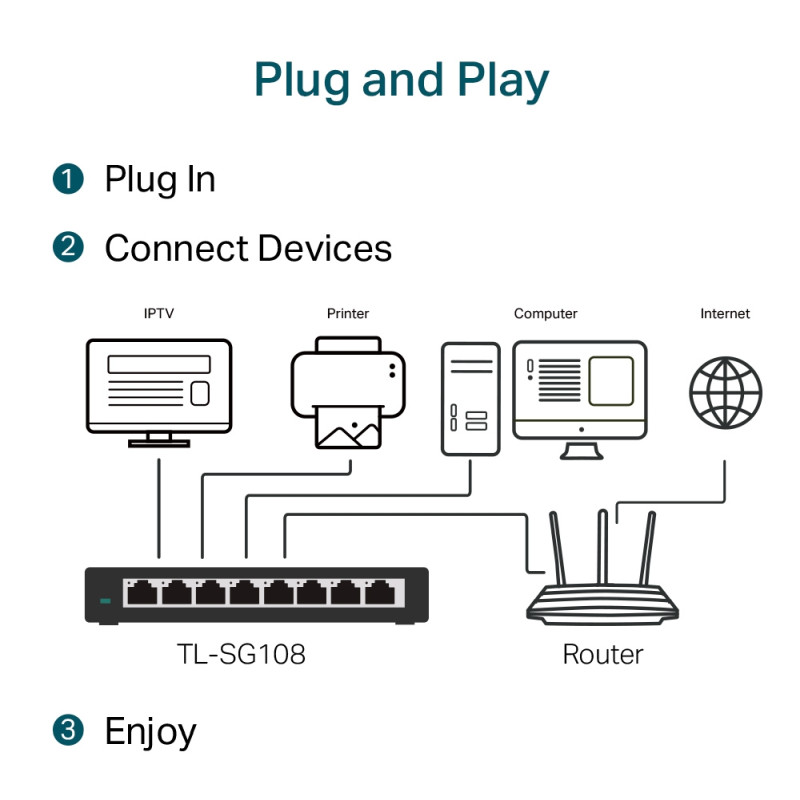

– Plug and play, no configuration needed
Specifications
HARDWARE FEATURES
– Standards and Protocols: IEEE 802.3 / 802.3u / 802.3ab/ 802.3x /802.1p
– Interface: 8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
– Fan Quantity: Fanless
– Power Consumption: Maximum: 3.97 (220V/50Hz)
– External Power Supply: External Power Adapter (Output: 9VDC / 0.6A)
– Buffer Size: 1.5Mb
– LED Indicator:
* System Power
* Link, Speed and activity indicators per port built into each RJ-45 port
– Dimensions (W×D×H): 158×101×25 mm
PERFORMANCE
– Packet Forwarding Rate: 11.9Mpps
– MAC Address Table: 4K
– Packet Buffer Memory: 1.5Mb
– Jumbo Frame: 15KB
SOFTWARE FEATURES
– Advanced Features:
* Green Technology,saving power up to 82%
* 802.3X Flow Control
* 802.1p/DSCP QoS1
* IGMP Snooping1
– Transfer Method: Store and Forward
OTHERS
– Certification: CE, FCC ,RoHS
– Package Contents:
* 8-Port 10/100/1000Mbps Desktop Switch
* Power Adapter
* Installation Guide
– Environment:
* Operating Temperature: 0°C~40°C (32°F~104°F)
* Storage Temperature: -40°C~70°C (-40°F~158°F)
* Operating Humidity: 10% ~ 90%, non-condensing
* Storage Humidity: 5%~90% non-condensing
