Features
– Innovative energy-efficient technology saves power up to 40%
– Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
– Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
– 32Gbps Switching Capacity
– 10K Jumbo frame improves performance of large data transfers
– Auto-MDI/MDIX eliminates the need for crossover cables
– Supports MAC address auto-learning and auto-aging
– Store and forward Switching scheme
– Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
– Plug and Play design simplifies installation
Specification
HARDWARE FEATURES
– Interface: 16× 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
– Network Media:
* 10Base-T: UTP category 3, 4, 5 cable (max. 100m) – EIA/TIA-568 100U STP (max. 100m)
* 100Base-Tx: UTP category 5, 5e cable (max. 100m) – EIA/TIA-568 100U STP (max. 100m)
* 1000Base-T: UTP category 5, 5e cable (max. 100m) – Switching Capacity 32Gbps
– External Power Supply: 100 – 240VAC, 50/60Hz
– Dimensions (W×D×H): 294×180×44 mm
SOFTWARE FEATURES
– Transfer Method: Store and Forward
– Advanced Functions:
* 802.3X Flow Control, Back Pressure
* Auto-Uplink Every Port
OTHERS
– System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7; MAC OS; NetWare; UNIX; Linux
– Environment:
* Operating Temperature: 0C – 40C (32F – 104F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing
Package Contents

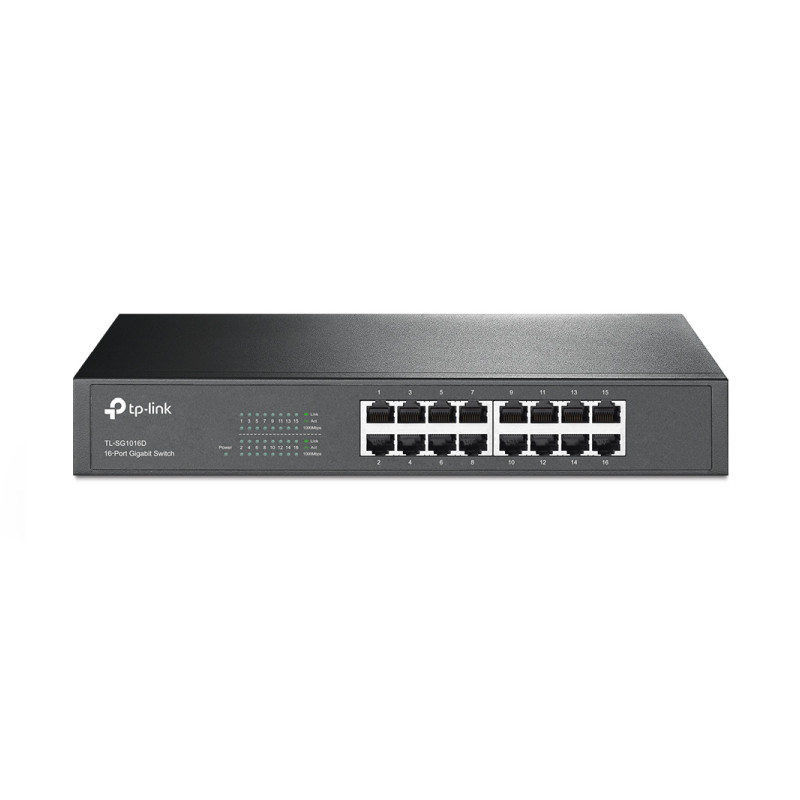

* 16-Port Gigabit Desktop/Rackmount Switch
* Power Cord
* Installation Guide
* Rackmount Kits
* Rubber Feet
