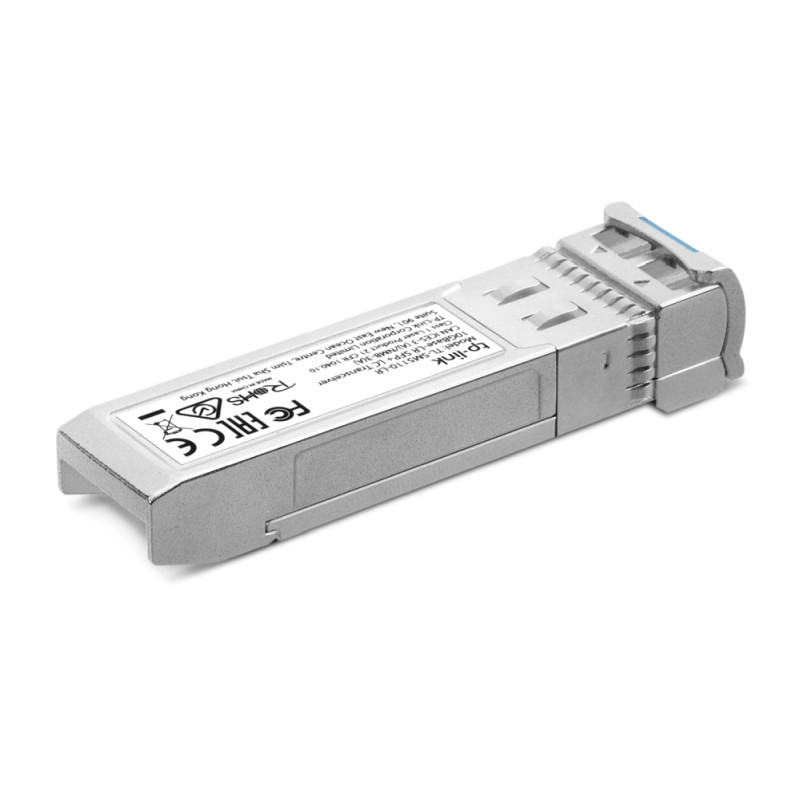

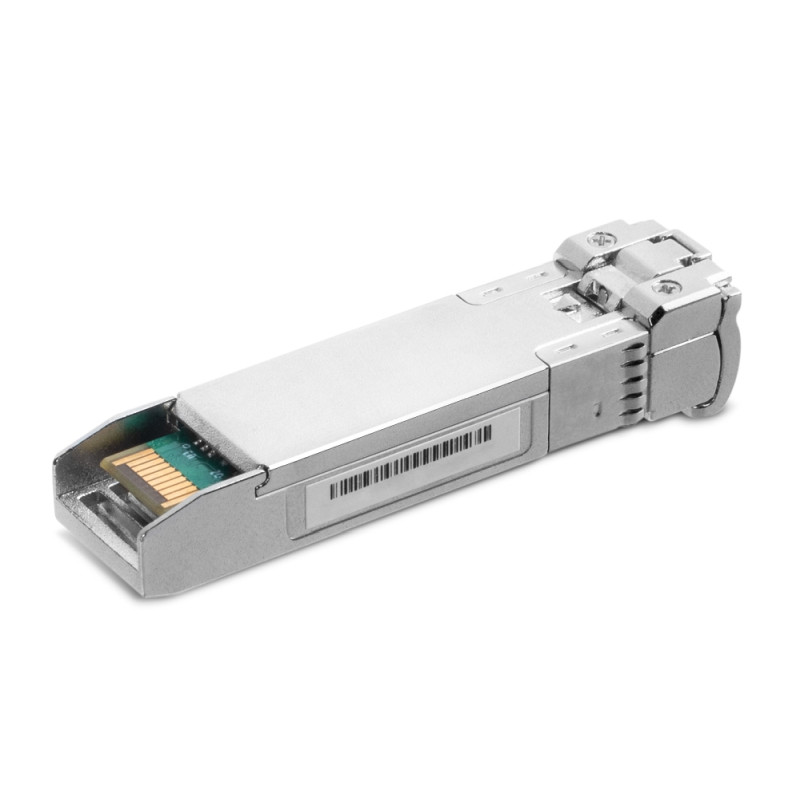

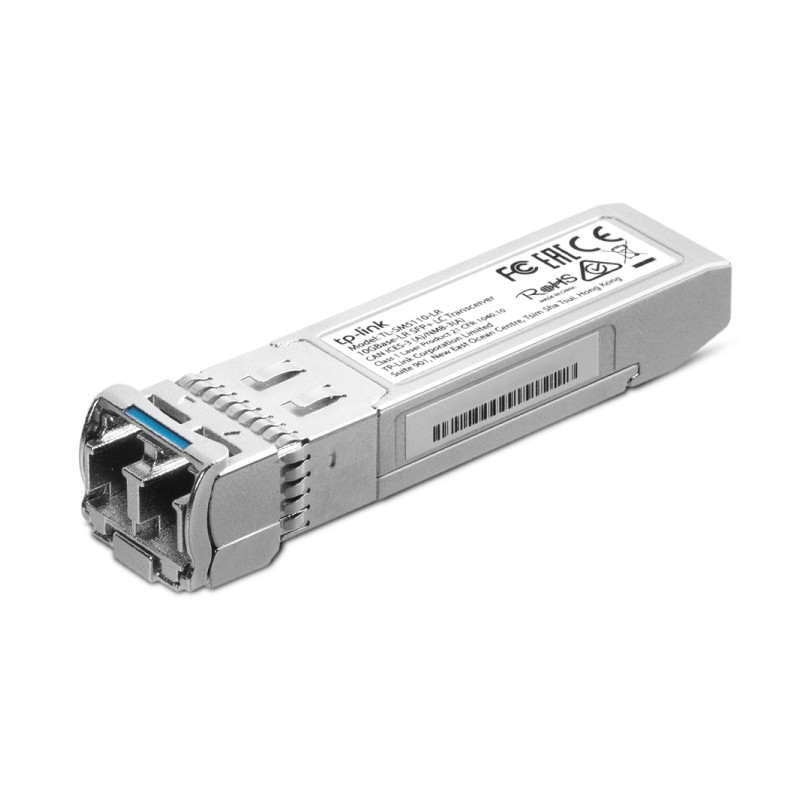

– The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Features
– Single-mode SFP+ LC Transceiver
– Hot-Pluggable with maximum flexibility
– Supports Digital Diagnostic Monitoring (DDM)
– Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)

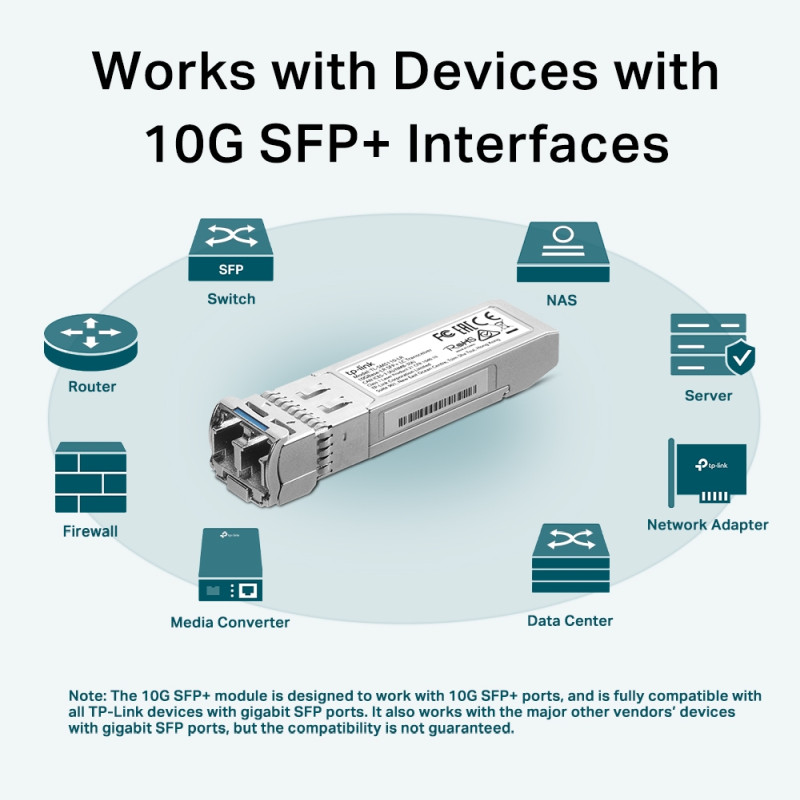

– Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Specifications
PACKAGE CONTENTS
– Package Contents:
* 10G SFP+ Module TL-SM5110-LR
* Installation Guide
HARDWARE FEATURES
– DDM: Yes
– SFP-MSA: Yes
– Hot Swappable: Yes
TRANSCEIVER
– Standards and Protocols: IEEE 802.3ae, TCP/IP
– Wave Length: 1310 nm
– Power Supply: 3.3V
– Fiber Type: 9/125um Single-Mode
– Max. Cable Length: 10 km
– Data Rate: 10 Gbps

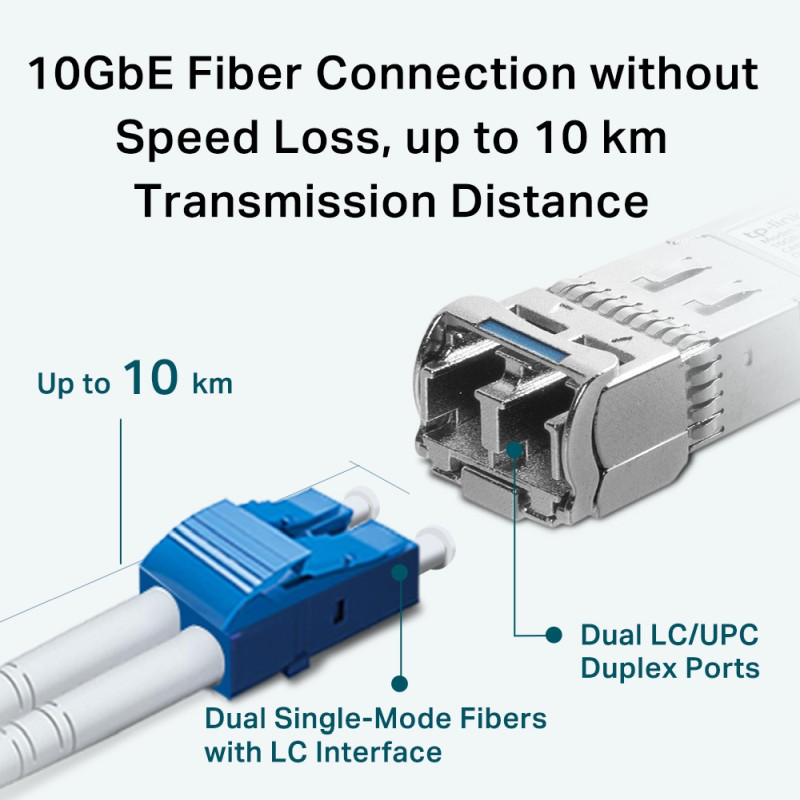

– Port Type: LC Duplex
– Safety & Emission: FCC, CE
– Environment: Operating Temperature: 0–70 °C (32–158 °F)
– Storage Temperature: -40–85 °C ( -40–185 °F)
– Operating Humidity: 10–90% RH, Non-Condensing
– Storage Humidity: 5–90% RH, Non-Condensing
