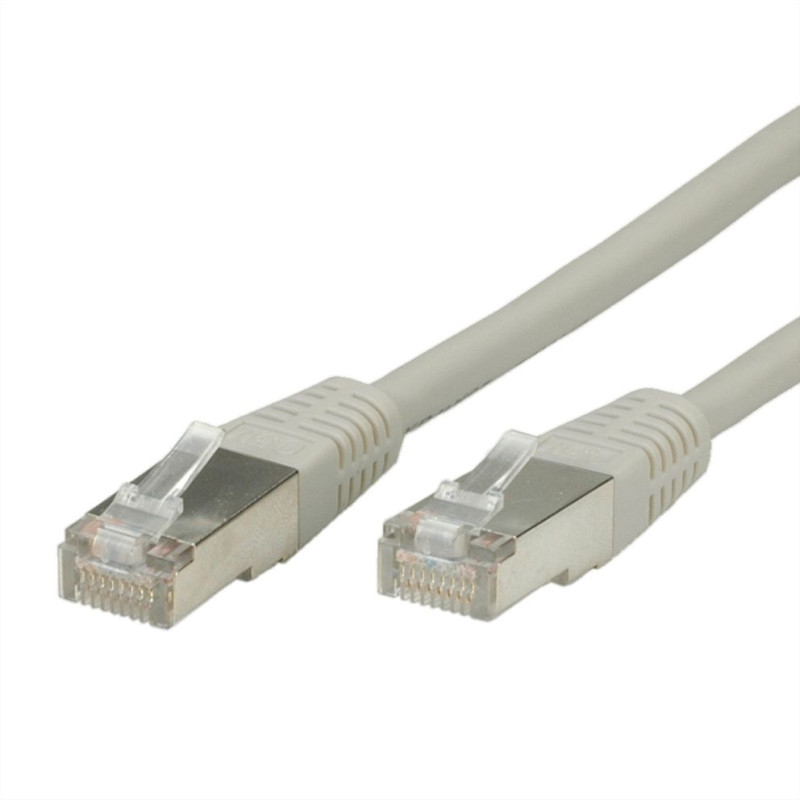

– Prepared shielded Twisted Pair cable with RJ-45 connectors on both sides. Used as patch cable in wiring cabinet or as direct connection cable between devices. Flexible cable suitable for narrow bending.
Contact settings 1:1, according to EIA/TIA 568, 8 wires. Construction: 8 wires stranded copper wire, braided shield. Impedance: 100 Ohm.
For a structured cabling system we recommend to use the following components:
– ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m).
– VALUE Cat.6 Flush/Surface Mount Wall Jack, shielded, white: 25.99.8492/25.99.8392.
– VALUE Cat.6 19″ Patch Panel, 24 Ports, shielded: 26.99.0353 (black), 26.99.0354 (grey).
– VALUE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.99.0805.
– Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.
Specifications
– Manufacturer: VALUE
– Product group: Twisted Pair Cable
– Product type: S / FTP patch cable PiMF
– Colour: Grey
– Length: 1.5 m

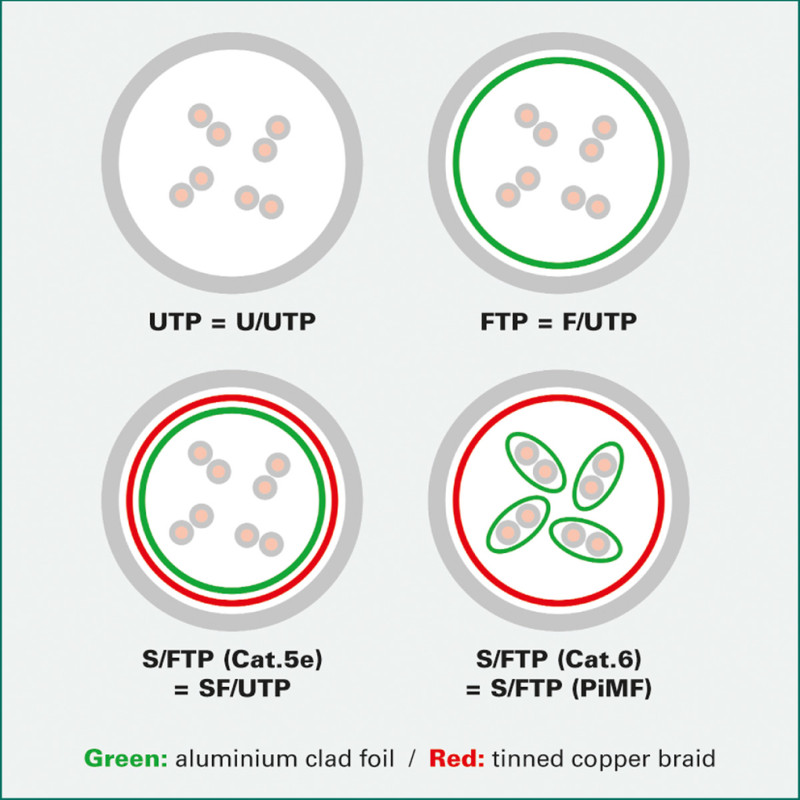

– Shield type: PiMF
– Transfer quality: Cat6 / Class E
– Impedance: 100 Ohm
– Quantity of wires: 8
– Conductor type: Wire
– Crossed: No
– Colour (Spout): Grey
– Cable LSOH: No
– Side 1 Connector Type: RJ-45
– Side 1 Connector Gender: Male
– Side 2 Connector Type: RJ-45
– Side 2 Connector Gender: Male
– Connector Type RJ45: Standard
– Operating temperature min.: -20 °C
– Operating temperature max.: 60 °C
– Weight: 50.1 g
– Height of packaging (single piece): 20 mm
– Width of packaging (single piece): 130 mm
– Depth of packaging (single piece): 130 mm
– Package weight (single piece): 0.06 kg
