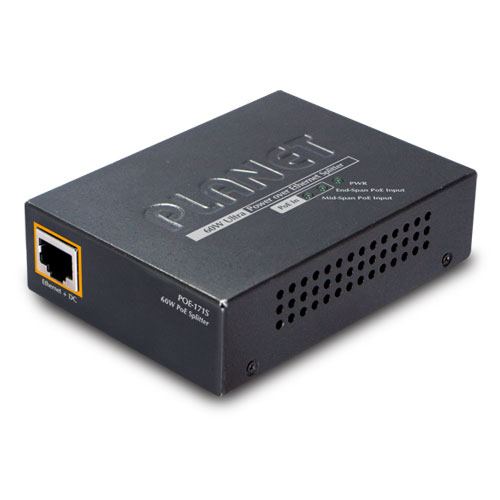

Planet Single Port 1GbE Ultra POE Spliter 60W (12V 19V 24V)

Planet POE-171S, Single-Port 10 100 1000Mbps Gigabit Ultra PoE (60W) Splitter (12V 19V 24V), delivers the Ethernet digital data with 56V DC power over the twisted pair cables as an 802.3at af Gigabit high Power over Ethernet splitter, and it separates the digital data and the power into three optional outputs (12V 19V 24V DC) and distance up to 100 meters. Output max power 60W. PoE Power Supply Type: End Span Mid Span, Power Pins Assignment Pair 1: 1 2(-), 3 6( ), Pair 2: 4 5( ), 7 8(-)
