Key Features:

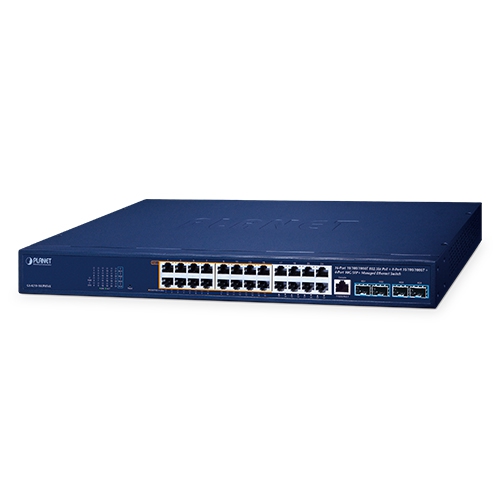

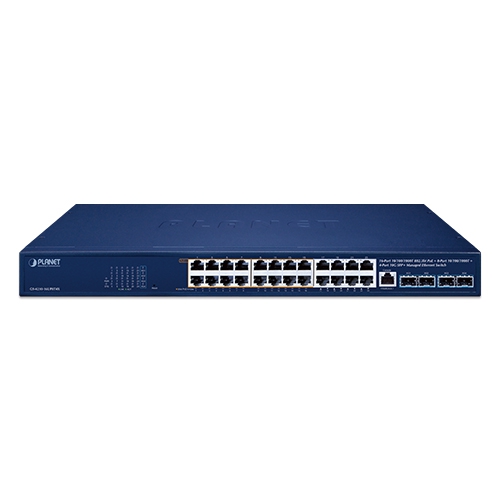

Physical Port
– 16 10/100/1000BASE-T ports with 95W 802.3bt PoE++ injector function (Ports 1 to 16)
– 8 10/100/1000BASE-T ports (Ports 17 to 24)
– 4 10GBASE-SR/LR SFP+ slots, backward compatible with 100/1G/2.5GBASE-X SFP transceivers (Ports XG1 to XG4)
– RJ45 to DB9 console interface for switch basic management and setup
Switching
– Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
– IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
– 16K MAC address table size
– 12K jumbo frame
– Automatic address learning and address aging
PoE
– Compliant with IEEE 802.3bt Power over Ethernet Plus Plus
– 16 ports supporting IEEE 802.3bt PoE++ with each offering up to 95 watts (ports 1-16)
– Total PoE power budget of 420 watts
– Automatic detection of powered devices (PD)
– Built-in circuit protection to prevent power interference between ports
– Remote power feeding up to 100 meters in standard mode and 250 meters in extend mode
– Advanced PoE management capabilities: Total PoE power budget control, Per port PoE function enable/disable, PoE port power feeding priority, Per PoE port power limitation, Detection of PD classification, Intelligent PoE features, PD alive check, PoE schedule, Scheduled power recycling
Layer 2 Features
– Supports VLAN
– Supports Spanning Tree Protocol (STP), RSTP, MSTP, STP BPDU Guard, BPDU Filtering and BPDU Forwarding
– Supports Link Aggregation
– Supports port mirror (many-to-1)
– Loop protection to avoid broadcast loops
– Supports ERPS (Ethernet Ring Protection Switching)
– Link Layer Discovery Protocol (LLDP)
Multicast
– Supports IPv4 IGMP snooping v2 and v3
– Supports IPv6 MLD snooping v1, v2
– IGMP querier mode support
– IGMP snooping port filtering
– MLD snooping port filtering
