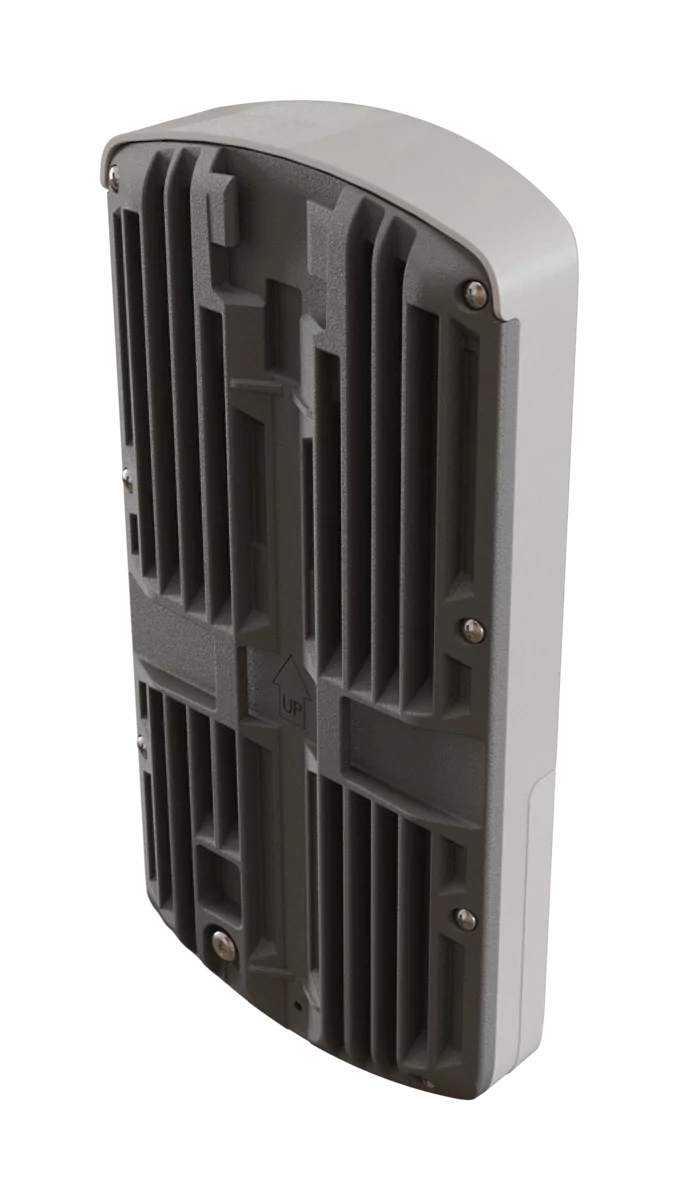

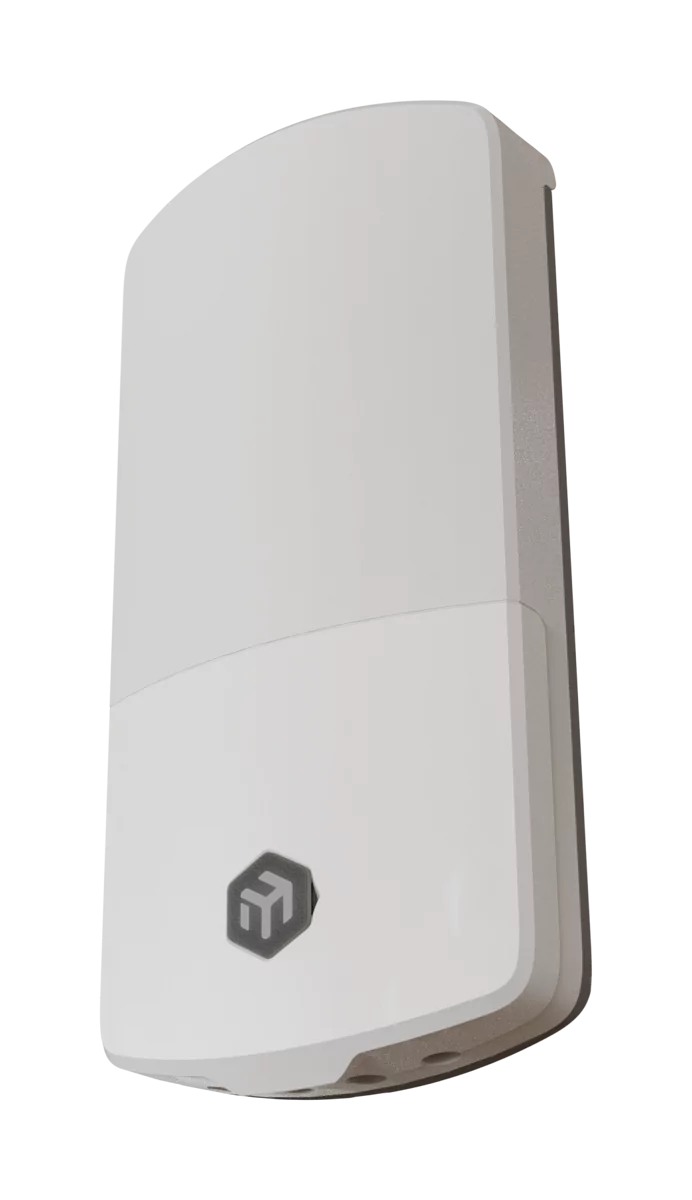

The new wAP LTE7 kit is an evolution of the popular wAP ac LTE6. Now – with Wi-Fi 6, CAT7 LTE, a stronger ARM platform, and improved antenna gain. The unit comes in our improved next-gen IP66 weatherproof enclosure.
Features:
– Product code: wAPGR-5HaxD2HaxD&R11e-LTE7
– Architecture: ARM 64bit
– CPU: IPQ-5010
– CPU core count: 2
– CPU nominal frequency: 800 MHz
– RouterOS license: 4
– Operating System: RouterOS v7
– Size of RAM: 256 MB
– Storage size: 128 MB
– Storage type: NAND
– MTBF: Approximately 200’000 hours at 25C
– Tested ambient temperature: -30°C to 70°C
Powering

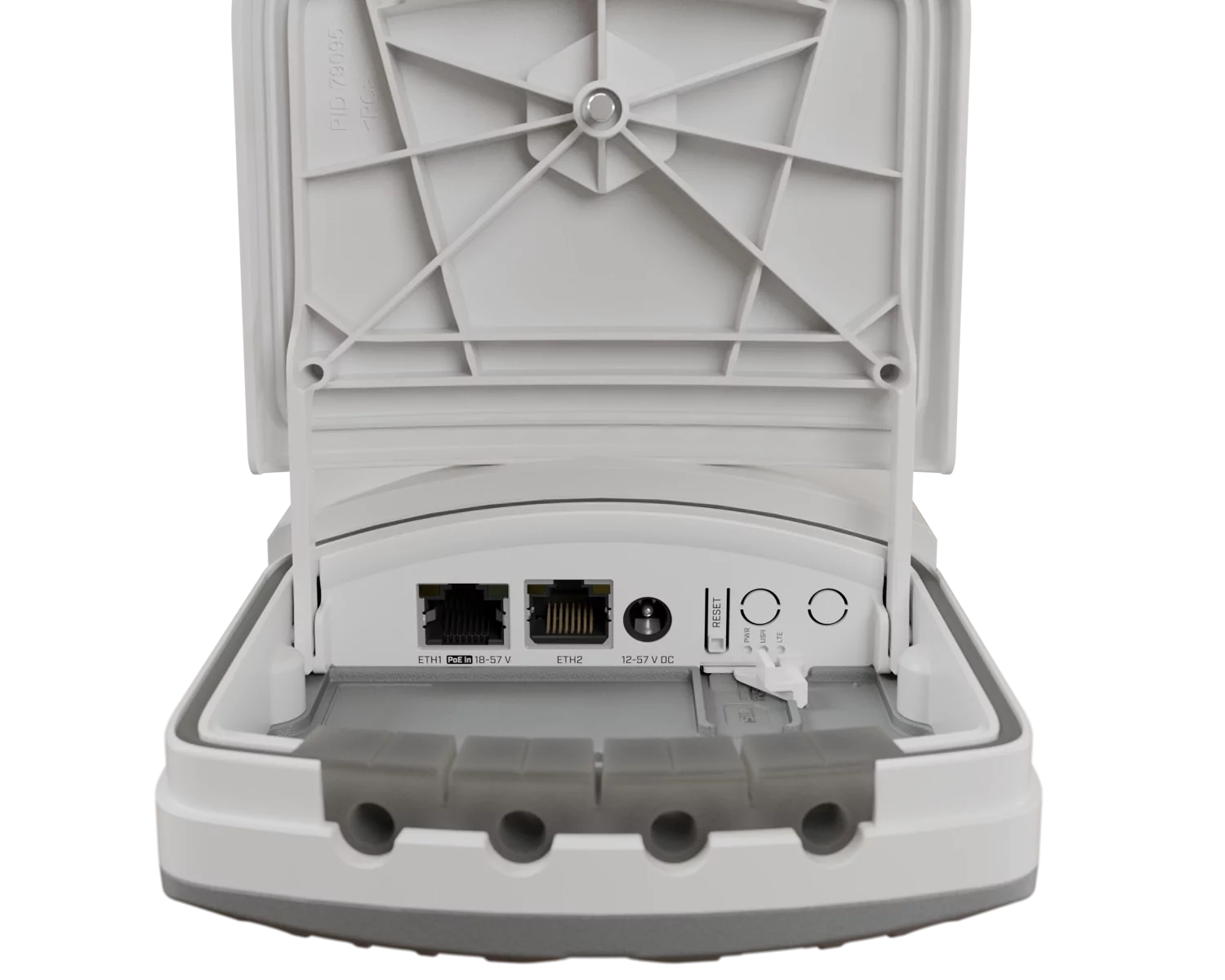

– Number of DC inputs: 2 (PoE-IN, DC jack)
– DC jack input Voltage: 12-57 V
– Max power consumption: 13 W
– Cooling type: Passive
– PoE in: 802.3af/at
– PoE in input Voltage: 18-57 V
Ethernet
– 10/100/1000 Ethernet ports: 2
Peripherals
– Number of SIM slots: 1 Modem (Micro SIM)
– MiniPCI-e slots: 1
Other
– CPU temperature monitor: Yes
– PCB temperature monitor: Yes
– Voltage Monitor: Yes
Certification & Approvals
– Certification: CE, EAC, ROHS
– IP: 66
Package content
– Device
– 24V 0.8A power adapter
– Gigabit PoE injector
– House clamp 1
*The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use.
*The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
