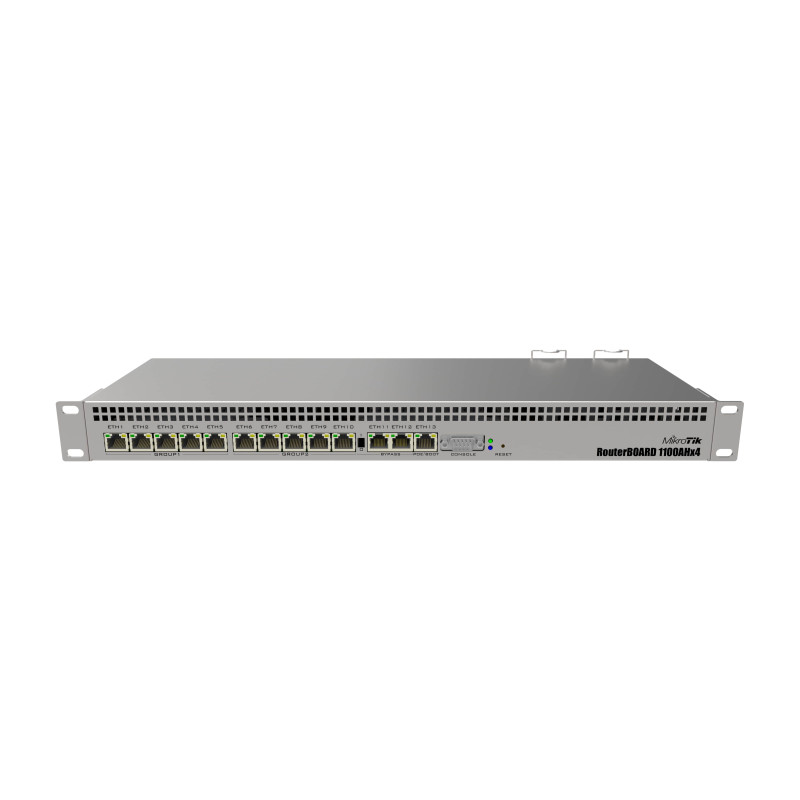

– Introducing RB1100AHx4, 13× Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128)
– Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support)
Specifications
– Architecture: ARM 32bit
– CPU: AL21400-1400-A0-E-1AN-8-C
– CPU core count: 4
– CPU nominal frequency: 1.4 GHz
– Dimensions: 444×148×47 mm
-License level: 6
– Operating System: RouterOS
-Size of RAM: 1 GB
– Storage size: 128 MB
– Storage type: NAND
Powering
– Max Power consumption: 20W
– Number of DC inputs: 2 (PoE-IN, 2-pin terminal)
– PoE in: 802.3af/at
– PoE in input Voltage: 20-57 V
– 2-pin terminal input Voltage: -48, 12-57 V

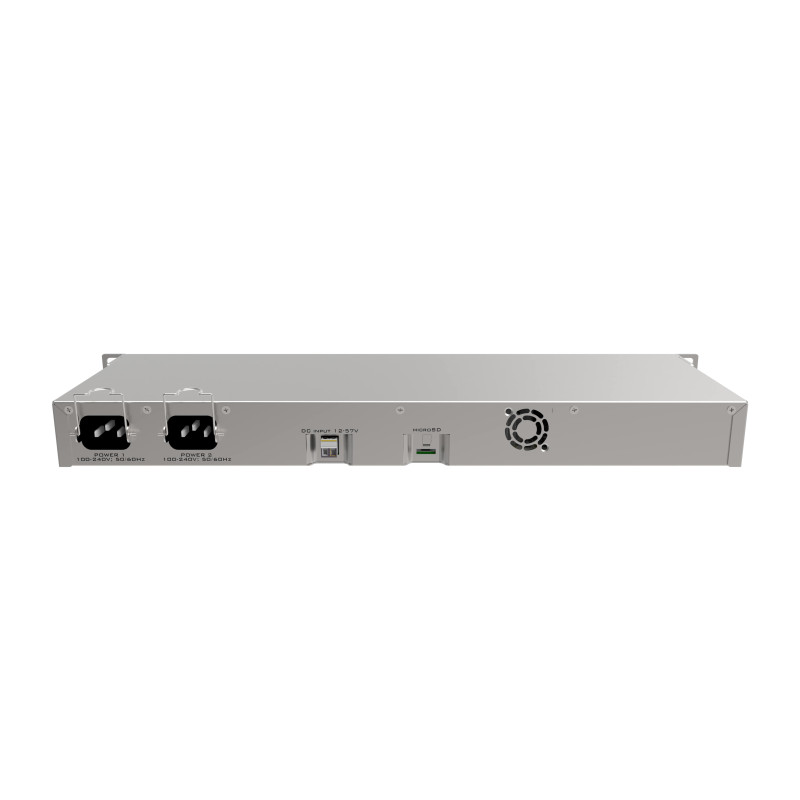

– Number of AC inputs: 2
– AC input range: 100-240 V
Ethernet
– 10/100/1000 Ethernet ports: 1
Peripherals
– Serial port: RS232
Other
– Current Monitor: Yes
– PCB temperature monitor: Yes
– Voltage Monitor: Yes
– Included parts:

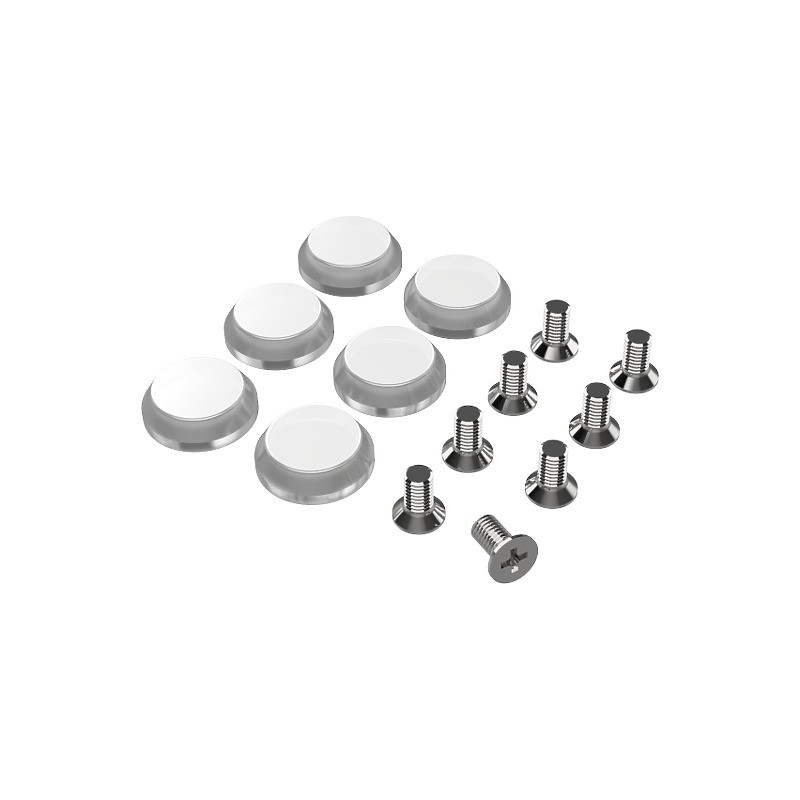

* K10 R2 screw kit

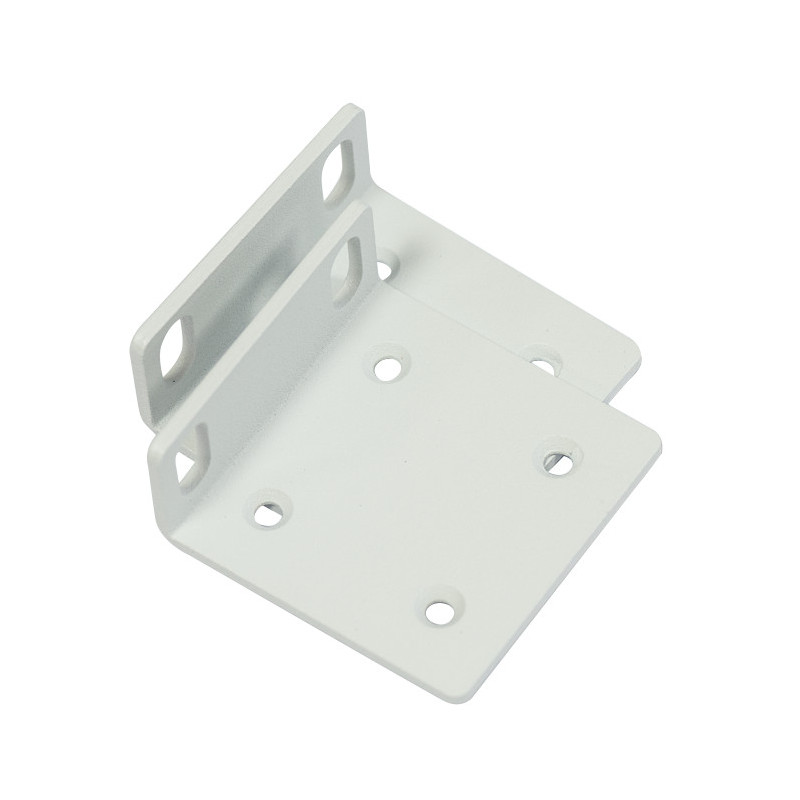

* Rack ears
* IEC cord
