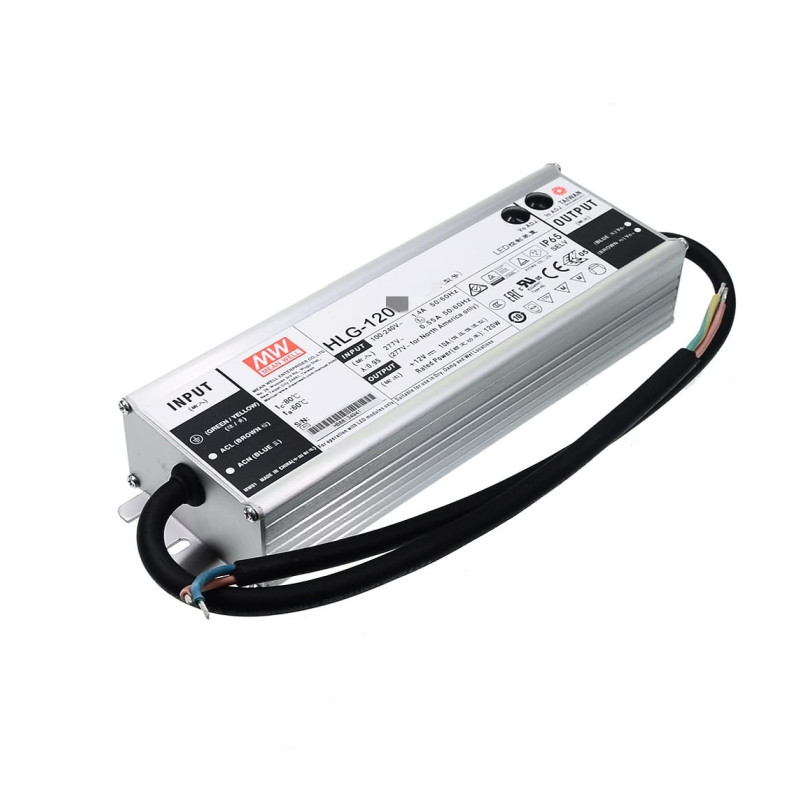

– AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC; Output 42Vdc at 2.9A; IP67; Cable output; Dimming with 1-10V PWM resistance
Specifications
– Series: HLG-120H
– RoHS: Compliant
– Application: LED EN 61347
– Net weight (gram): 1080
– Technology: AC/DC
– Constant Current C.C.
– Constant Power C.P.
– Constant Voltage C.V.
– Power Format:
• Box Type – Enclosed
• Enclosed Metal housing
– Output Power (W): 120
– Output Voltage (V): 42
– Output Current (A): 2.9
– Input Voltage (V):
• 110/230 universal input
• 90 – 305
– IP Rating: IP67
– Width (mm): 68
– Height (mm): 38.8
– Depth (mm): 220
– Dimming Technology
• 1-10V
• PWM
• Resistance
– Housing Type: Metal
