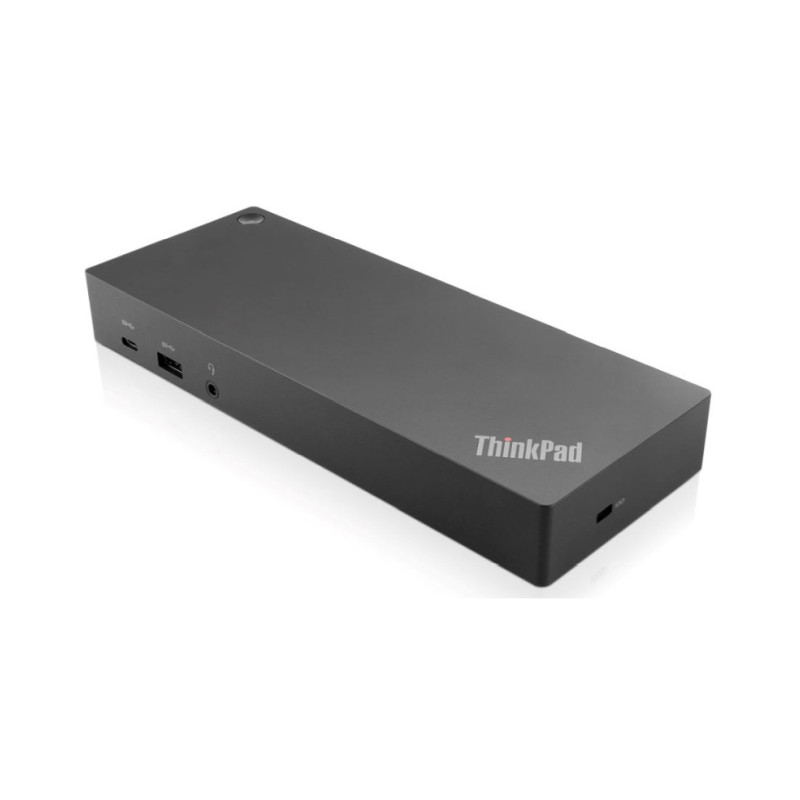

Lenovo ThinkPad Hybrid USB-C with USB-A Dock EU (40AF0135EU)


SKU: lst-62962 Kategorija: Oznaka:


Dostupnost: Dostupno


– The ThinkPad Hybrid USB-C with USB-A Dock (40AF) expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability like PXE boot and MAC address Pass-through the ThinkPad Hybrid USB-C with USB-A offers three high-speed USB3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks. And, with the included USB-C to USB-A adaptor it can also provide port replication to non-Lenovo or USB-C notebooks.

– One dock for all notebooks: Enhances the performance of Lenovo USB-C notebooks and tablets through USB-C connection, as well as previous generation and market notebooks through the USB-C to USB-A adaptor.
– Performance: Provides up to dual UHD 4K display with DisplayPort and HDMI ports. Up to 10Gbps data transfer speed on three USB3.1 gen2 ports, and rapid charging for most current ThinkPad family notebooks.
– Enterprise manageability and simplification: Host of manageability features like PXE boot, Wake-On-Lan from sleep mode, and MAC address pass-through.
– Supported by the Lenovo Dock Manager, an advanced solution that automatically manages docking, as well as providing firmware updates, device queries, and analytics on all Lenovo Smart Docks.
– Also, compatible with Lenovo Docking Station Mounting Kit (4XF0S99497)

Ports, Connectors, Security
– Docking interface: USB-C cable with USB-C to USB-A dongle
– Three USB 3.2 gen2 (10Gbps, 1x always-on)
– Two USB 2.0
– USB-C port (Data, 5V 3A power)
– 10/1000 Gigabit Ethernet
– Two DP1.2 port
– Two HDMI2.0 port
– Combo Audio jackHDMI
– Up to two UHD displays connection via DisplayPort/HDMI ports
– Kensington Security lock slot

Monitor Resolution
– Number of external monitors: 2
– Up to two UHD displays connection via DisplayPort™/HDMI™ ports
– Maximum Resolution Support/Refresh Rate: 5120*2880@60Hz

Physical Specifications, Agency Approvals
– Packed Physical Specification (approximate)
– Length: 270mm (10.63 in)
– Width: 165mm (6.49 in)
– Height: 88 mm (3.47 in)
– Weight : 1350g (2.98 lb)

Unpacked Physical Specification (approximate):
– Length: 210mm (8.27 in)
– Width: 80mm (3.15 in)
– Height: 30mm (1.18 in)
– Weight : 475g (1.05 lbs)
– Agency Approvals:
FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM

Operating Specifications
– Maximum Temperature: 35° C / 95° F
– Minimum Temperature: 0° C / 32° F
– Maximum Relative Humidity: 95% ( no Condensation)

Operating System Requirement
– Windows 11 (64-bit), Windows 10 (64-bit), Windows 7 (64-bit)

Package includes
– ThinkPad Hybrid dock (40AF)
– USB-C cable (with USB-C to USB-A dongle)
– ThinkPad 135W AC Power Adapter (Slim tip)
– Power cord
– User Guide and Warranty Statement

Jamstvo: 12 mjeseci

Kod dobavljača: 40AF0135EU
