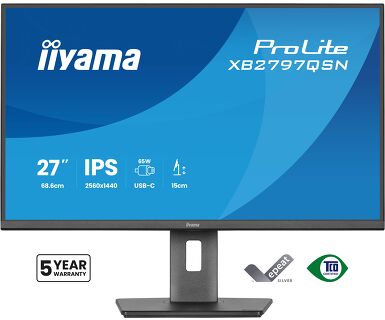

27” QHD monitor with USB-C docking and LAN that simplifies your daily setup
Designed for modern professionals who value efficiency and a clutter-free workspace, the ProLite XB2797QSN brings advanced connectivity and high-quality visuals together in a single, versatile 27” display.
The integrated USB-C dock with 65W Power Delivery allows you to transmit video, audio and data while simultaneously powering your laptop through just one cable. This simplifies your desk setup, reduces cable clutter and makes hot-desking effortless. The built-in RJ45 (LAN) port provides a stable wired network connection directly through the monitor, eliminating the need for extra adapters and ensuring reliable performance throughout the working day.
The 27” QHD IPS panel (2560×1440) delivers sharp detail and accurate colour reproduction with wide viewing angles, making it ideal for spreadsheets, creative projects and multitasking. A DisplayPort output enables easy daisy-chaining for a dual-monitor configuration, helping you expand your workspace and increase productivity without complication.
A 15cm height-adjustable stand with tilt, swivel and pivot functions, including portrait mode, allows you to tailor the screen position to your exact ergonomic needs. TÜV Rheinland Eye Comfort certification confirms reduced blue light emissions and flicker-free performance, supporting comfortable viewing and sustained concentration during long working hours.
DISPLAY CHARACTERISTICS
Design 4-side slim bezel
Diagonal 27″, 68.5cm
Panel IPS Panel Technology LED, matte finish
Native resolution 2560 x 1440 @75Hz (3.7 megapixel QHD)
Aspect ratio 16:9
Panel brightness 350 cd/m2
Static contrast 1000:1
Advanced contrast 80M:1
Response time (MPRT) 1ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln (sRGB: 100%; NTSC: 72%)
Horizontal Sync 30 – 112kHz
Viewable area W x H 596.7 x 335.7mm, 23.5 x 13.2″
Pixel pitch 0.233mm
Colour matte, black
INTERFACES / CONNECTORS / CONTROLS
Signal input HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)
USB-C x1 (PD 65W)
Signal output DisplayPort x1 (2560;1440)
USB HUB x4 (2x Type-A v.3.2 Gen 1 (5Gbps, 4.5W) 2x Type-C (5Gbps, 7.5W))
USB-C DOCK x1 (Power delivery 65W, LAN, DP out, USB v.3.2 (Gen 1, 5Gbit))
HDCP yes
Headphone connector yes
RJ45 (LAN) x1
FEATURES
Flicker free yes
Adaptive Sync support yes
Extra i-Style colour, Eye Comfort
OSD languages EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL, UA
Control buttons Joystick: Power/Menu (Centre), Up/Signal Select, Down, Left/Shortcut, Right/Volume
User controls picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, RGB range, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed, MST DP-out), extra 2 (shortcut key, Mac address, FW version), input select, audio settings (volume, mute), reset (reset all?)
Speakers 2 x 2W
Convenience Kensington-lock™ prepared, DDC/CI, DDC2B
MECHANICAL
Display position adjustments height, swivel, tilt, pivot (rotation both sides)
Height adjustment 150mm
Rotation (PIVOT function) 90°
Swivel stand 120°; 60° left; 60° right
Tilt angle 23° up; 5° down
VESA mounting 100 x 100mm
Cable management system yes
ACCESSORIES INCLUDED
Cables power (1.5m), HDMI (1.5m), USB-C (1.0m)
Other quick start guide, safety guide
POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 – 240V, 50/60Hz
Power usage 21W default, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) E
EPEAT Silver *registration varies by country, go to www.epeat.net for details
REACH SVHC above 0.1%: Lead, Lead monoxide, Diboron trioxide
Warranty 5 years (for details and eligible countries please check the Warranty section of our website)
DIMENSIONS / WEIGHT
Product dimensions W x H x D 613 x 403.5 (547.5) x 209.5mm
Box dimensions W x H x D 691 x 447 x 142mm
Weight (without box) 5.8kg
Weight (with box) 8.0kg
EAN code 4948570125937
