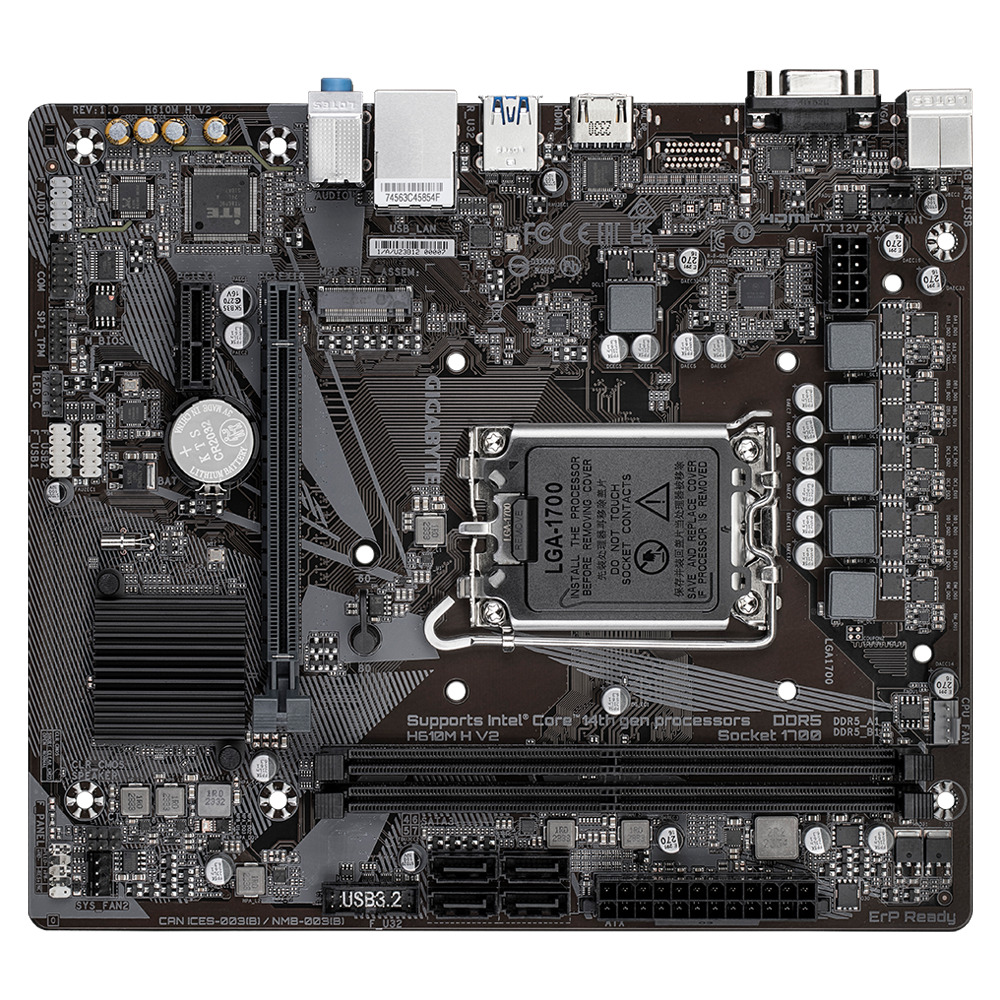

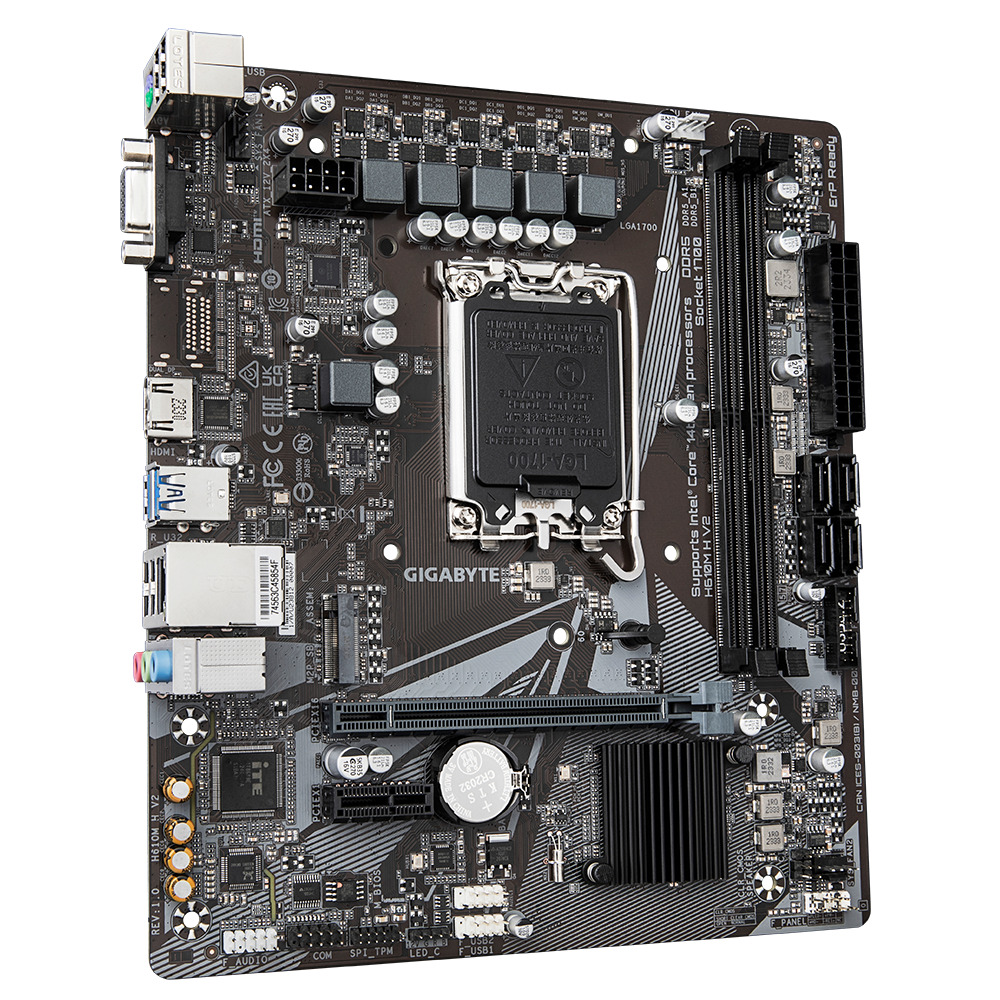

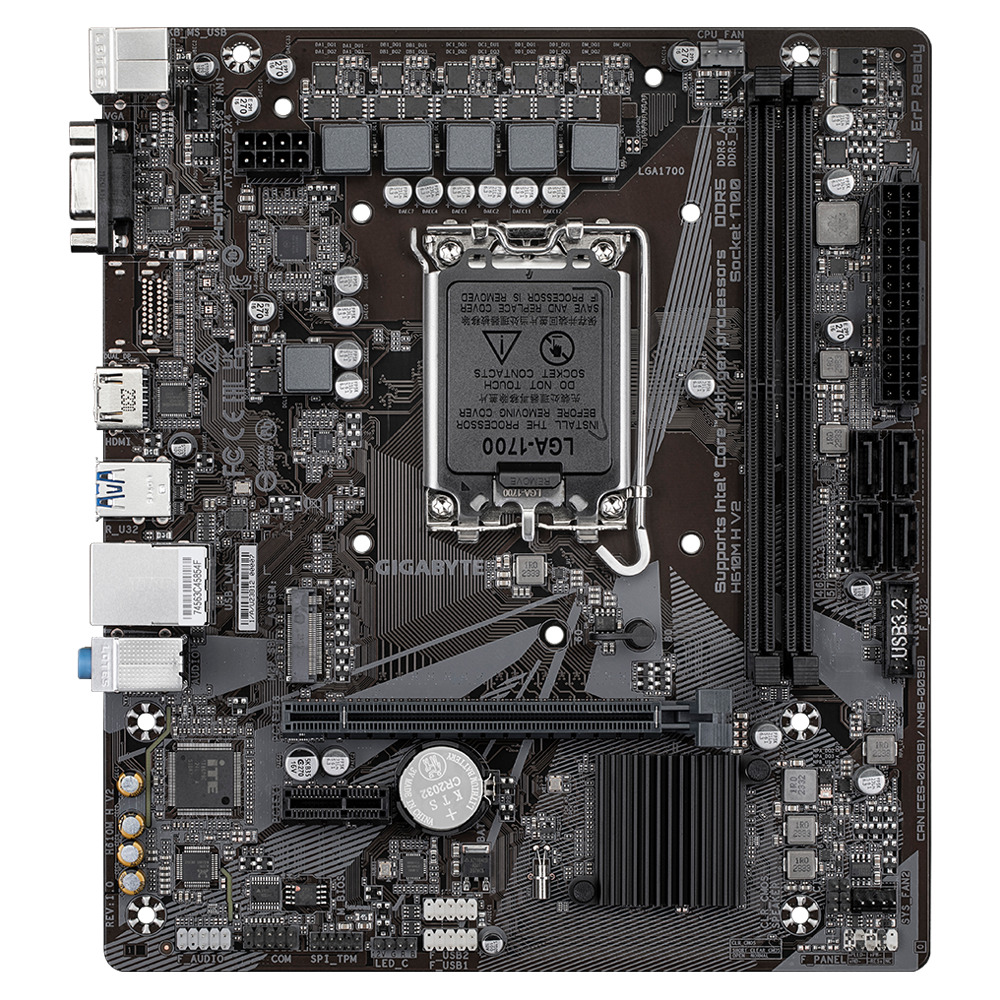

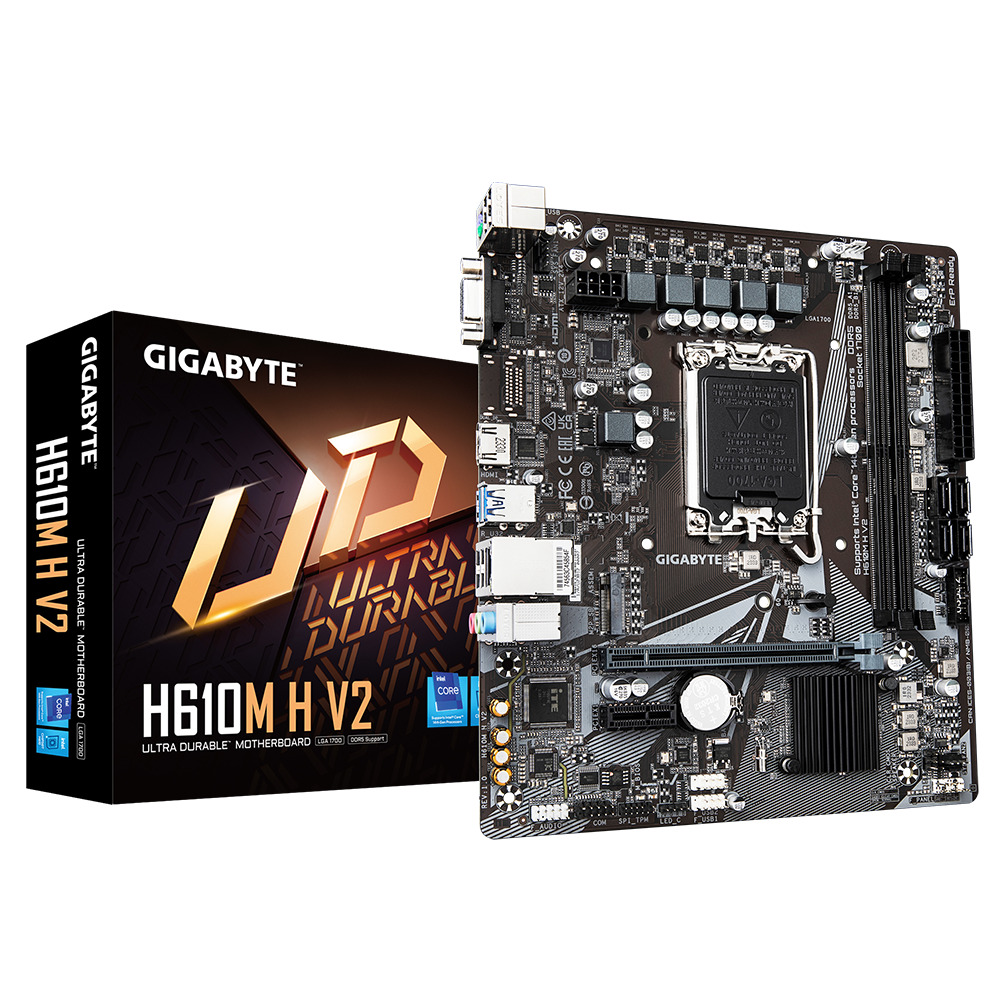

Gigabyte MB H610M H V2 DDR5, S.1700, 2xDDR5/5600, PCIe 4.0, G-LAN, VGA/HDMI, mATX

Specifikacije
– Procesor: Intel LGA1700 (14th / 13th / 12th Gen Core™, Pentium® Gold, Celeron®)
– Čipset: Intel® H610 Express
– Memorija: 2× DDR5 DIMM, do 128 GB, dvokanalna, ECC Un-buffered (radi u non-ECC), non-ECC, XMP
– Brzina memorije:
– DDR5 5600 / 5200 / 4800 / 4400 MT/s (14th/13th Gen Core™ i9/i7)
– DDR5 4800 / 4400 MT/s (13th Gen i5/i3, 12th Gen Core™, Pentium®, Celeron®)
– Grafika: Integrirana Intel® HD Graphics (ovisno o CPU-u)
– Video izlazi: HDMI 2.1 (4096×2160@60 Hz), D-sub
– Zvuk: Realtek® HD Audio, 2/4/5.1/7.1-kanalni
– Mreža: Realtek® GbE LAN (1 Gbps)
– Utori za proširenje: 1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x1 (Chipset)
– Pohrana: 1× M.2 (PCIe 3.0 x4/x2, 2280/2260), 4× SATA 6 Gb/s
– USB priključci: USB 3.2 Gen 1, USB 2.0/1.1
– Interni konektori: 24-pin ATX, 8-pin ATX 12V, CPU fan, 2× system fan, M.2, 4× SATA, RGB header, front panel, audio, speaker, USB 3.2 Gen 1, USB 2.0, TPM, serijski port, Clear CMOS, intrusion header

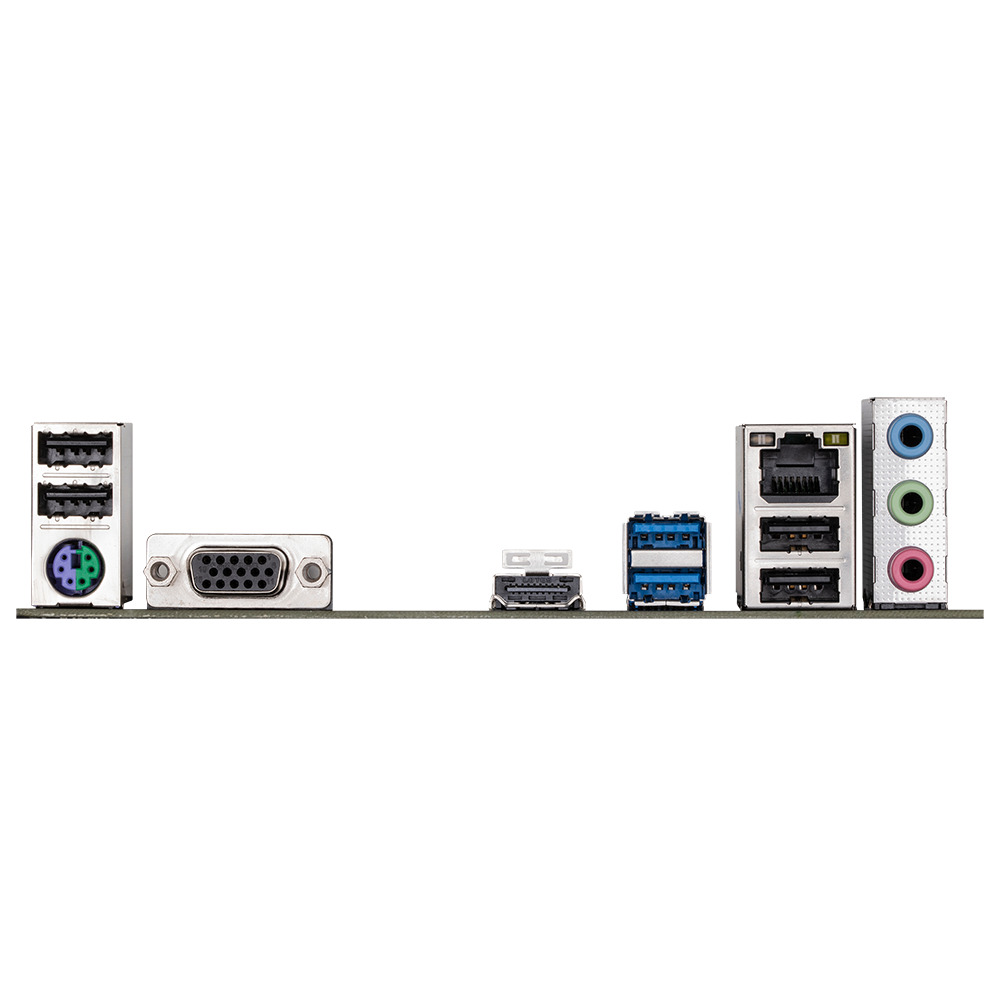

– Stražnji panel: PS/2, D-Sub, HDMI, 2× USB 3.2 Gen 1, 4× USB 2.0, RJ-45, audio priključci
– BIOS: AMI UEFI, 128 Mbit
– Posebne značajke: APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer, Q-Flash
– Softver: Norton® Internet Security (OEM), LAN bandwidth management (ukinut servis)
– Podrška za operativne sustave: Windows 10 / 11 (64-bit)
– Format: Micro ATX (22.3 × 19.6 cm)
