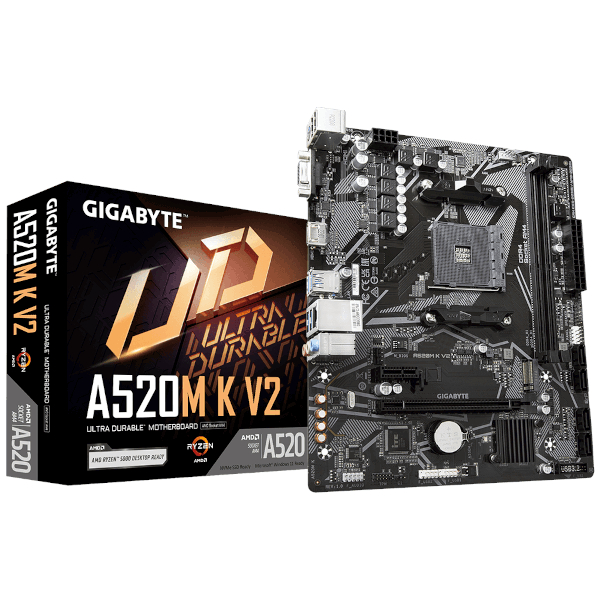

Model: A520M K V2 (rev. 1.0)
Podržani procesori: Supports AMD Ryzen™ 5000 Series
Ryzen™ 5000 G-Series
Ryzen™ 4000 G-Series
Ryzen™ 3000
Ryzen™ 3000 G-Series Processors
Chipset: AMD A520
Memorija: 2 x DDR4 DIMM sockets supporting up to 64 GB
Support for Extreme Memory Profile (XMP) memory modules
I/O konektori: 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
Grafika: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Audio: Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Ostalo: Više detalja o proizvodu možete pogledati ovdje.
