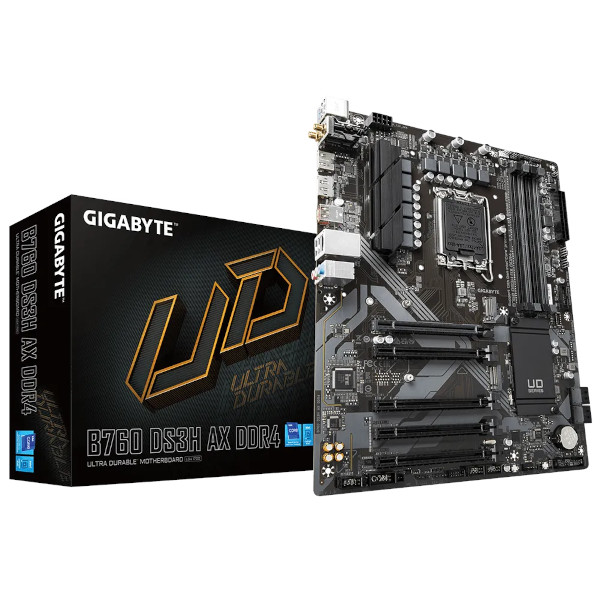

Model: B760M DS3H AX DDR4
Podržani procesori: 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset: Intel® B760 Express Chipset
Memorija: DDR4 do 5333
4 x DDR DIMM
Utori za proširenje: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
I/O konektori: 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Grafika: 1 x HDMI port
2 x DisplayPort
Audio: Realtek® Audio CODEC
2/4/5.1/7.1-channel
LAN: Realtek® 2.5GbE LAN
WI-FI
BT 5.2
Ostalo: Stražnji panel:
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
