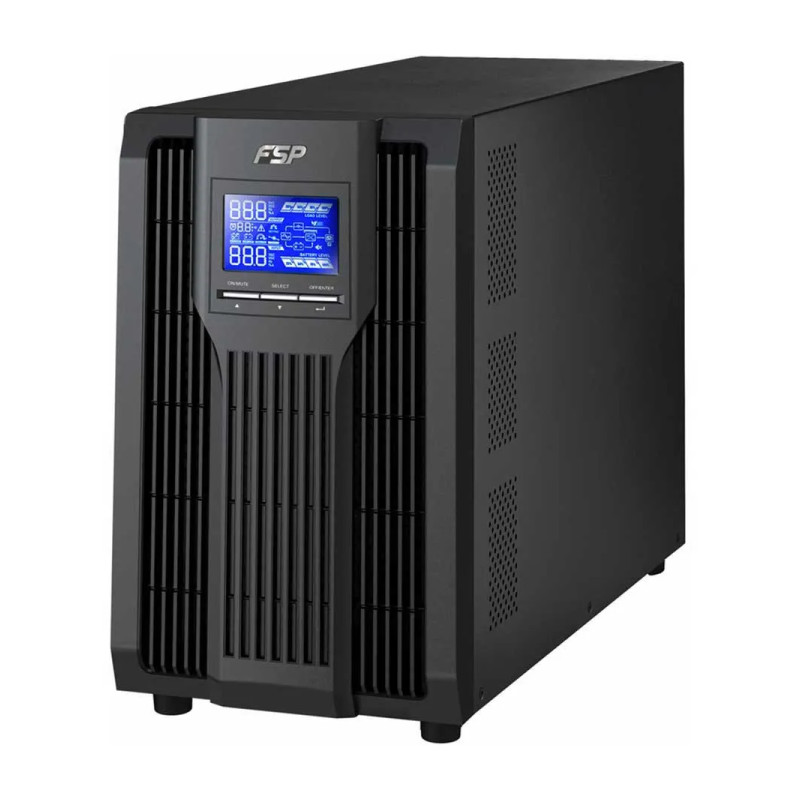

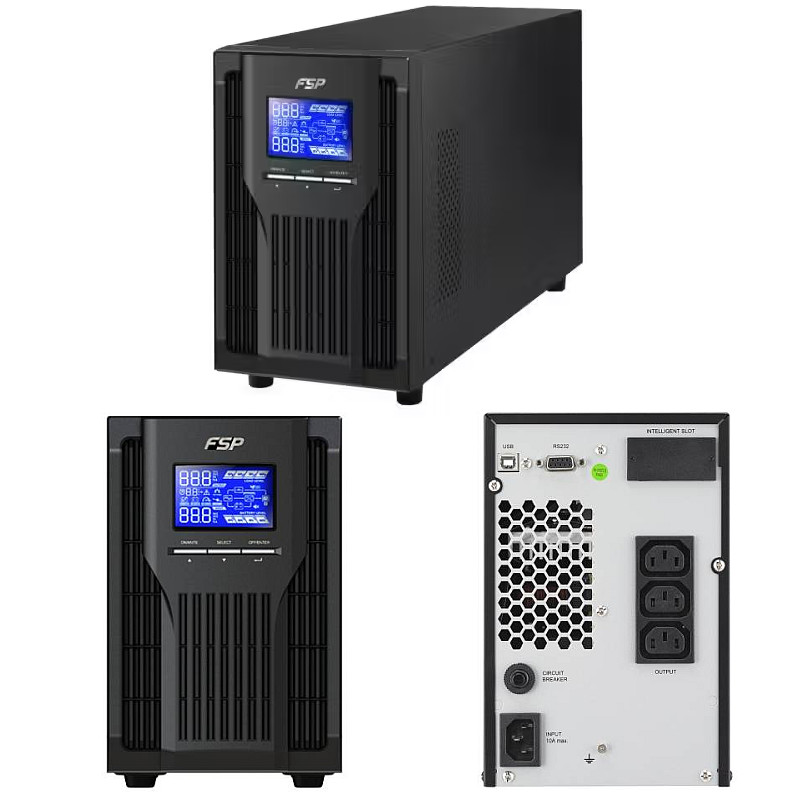

– FSP Champ Tower Series is the high density version of double-conversion online UPS with a output power factor 0.9.
– It’s designed in small cabinet with microprocessor controller.
– It also has USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
Specifications
– Topology: On-line Single Phase
– Capacity: 2000VA/1800W
– Typical Recharge Time (up to 90% capacity): 4 hours
– Power Factor: ? 0.99 @ Nominal Voltage (100% load)
– Input Frequency: 40Hz ~ 70Hz
– Input Voltage Range: 120-300 VAC
– Output Outlet: IEC*4
– Output Voltage: ± 1% (Batt. Mode)
– Output Frequency Range: 47.5 Hz ~ 52.5 Hz or 57Hz ~ 63 Hz (Synchronized Range)
50 Hz ±0.25 Hz or 60 Hz ±0.3 Hz (Batt. Mode)
– Wave Form: Pure Sinewave
– Battery: 4pcs 12V 9Ah inside
– Battery Type & Number: 12V / 9Ah x 4
– Intelligent Slot: SNMP, AS400, RS485-Modbus
– Network Ports: USB, RS-232
– Operating Environment / Humidity: 20-90 % RH @ 0- 40°C (non-condensing)
– Noise Level: Less than 50dB 1 Meter
– Dimensions: 397 x 145 x 220
– Weight: 17 000g
– OS: Supports Windows 98/XP/2000/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016, Linux, and MAC
