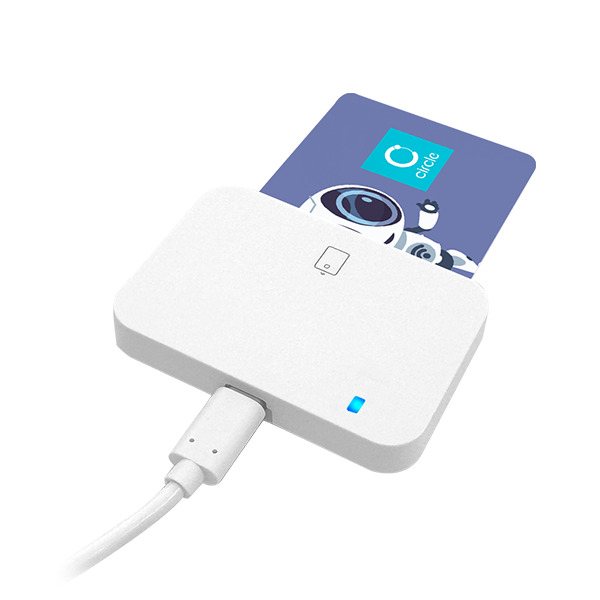

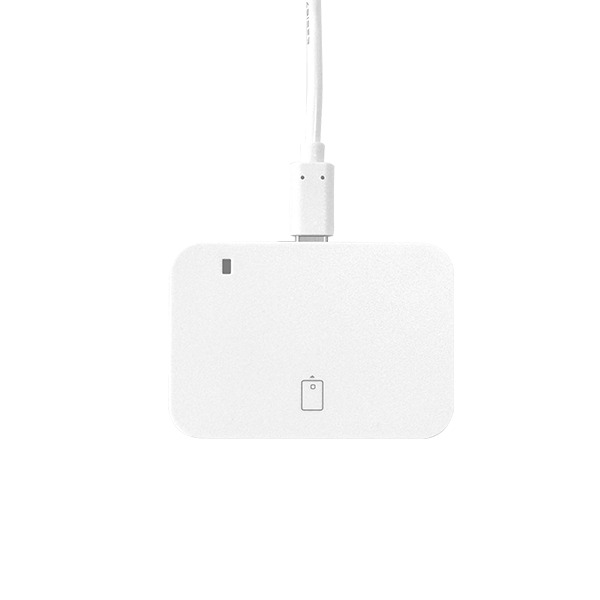

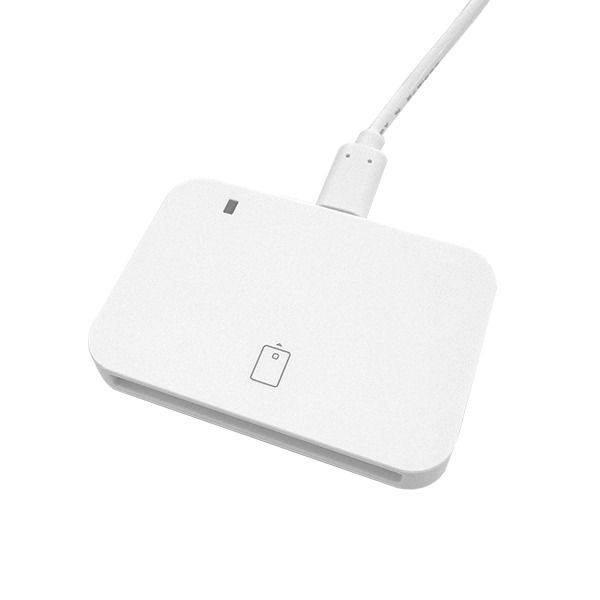

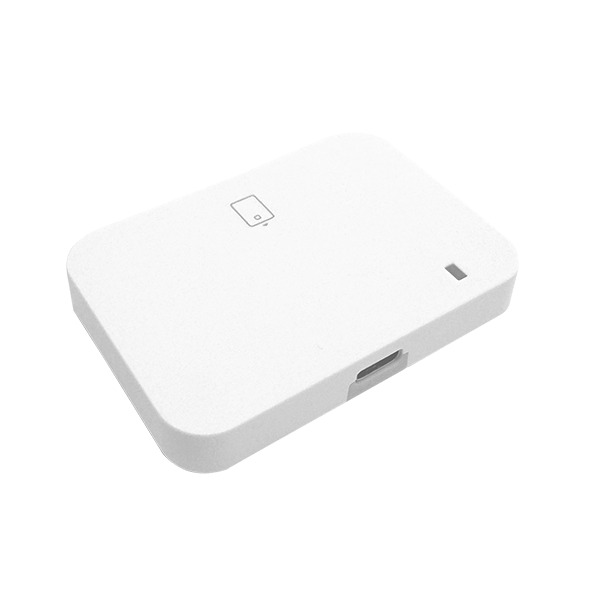

CONTACT SMART CARD READER
– A handy contact smart card reader comes with a firmware upgradable powerful core and an ergonomic design featuring a detachable USB cable
– Contact Smart Card Reader is a handy contact smart card reader with powerful core and modern design to bring about fast and secure data transmission for various smart card applications, such as e-government, e-healthcare and network log-on
Features
– Supports ISO/IEC 7816 Part 1/2/3/4 standard
– Supports full-sized ISO/IEC 7816 Class A/ B/ C cards with T=0 or T=1 protocol, J-LIS cards and memory cards
– Supports extended APDU
– Complies with CCID standard
– Conforms to PC/SC specifications
– Firmware upgradable
– Works on different operating systems
– Detachable USB cable 1.0m
Specifications
CONTACT SMART CARD INTERFACE
– Standard: ISO/IEC 7816 Part 1/2/3/4
– Protocol: T=0, T=1
– Supported Card Types: ISO/IEC 7816 Class A/ B/ C (5V/ 3V/ 1.8V) cards, J-LIS cards, Memory cards
– Supported Card Size: ID-1 (Full size)
– Supply Current: 60 mA @5V, 50mA @ 3V and 30mA @1.8V
– Speed: 9.6 – 826 kbps
– Short Circuit Protection: Support
– Clock Frequency: Up to 16 MHz (Default: 4.8 MHz)
– Card Connector: Sliding, Min. 100.000 insertion cycles
– Extended APDU: Support
PHYSICAL CHARACTERISTICS
– Dimensions (L×W×H): 70.0×48.0×10.5 mm
– Weight: 46.2 g (+/- 5 g)
– Casing: White and Grey ABS
HOST INTERFACE
– USB Standard: USB 2.0 Full Speed (12 Mbps)

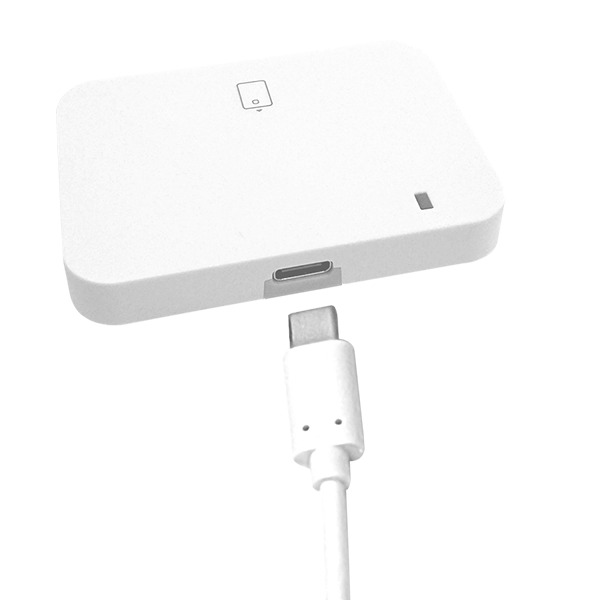

– USB Connector Type: Type C (Female)
– USB Cable: 1.0m, Detachable USB Cable
POWER
– Power Supply: USB Bus-powered (5V DC)
– Current Consumption: <100 mA (Operating), <2 mA (Standby)
HUMAN INTERFACE
– LED: 1 LED: 1 Blue (Operation Status)
SOFTWARE AND DRIVER
– Firmware Upgradable: Support, via USB
– Driver: CCID
– Application Programming Interface (API): PC/SC
OPERATING CONDITIONS
– Operating Temperature: -10 to 55°C
– Operating Humidity: Max. 95% (non-condensing)
– Storage Temperature: -20 to 70 °C
– Meantime Between Failure (MTBF): 600.000 hours
COMPLIANCE / CERTIFICATIONS
– Standards / Systems: ISO/IEC 7816, EMV Co Contact Terminal Level 1, USB 2.0 Full Speed, CCID, Microsoft WHQL
– Regulatory / Environmental: EN 62368, BSEN 62368, CE, FCC, UKCA, VCCI, RoHS3, REACH
OPERATIONAL ENVIRONMENT
– Supported Operating Systems: Windows 7 SP1 and above, Linux, macOS 10.12 and above, Android 6.0 and above
