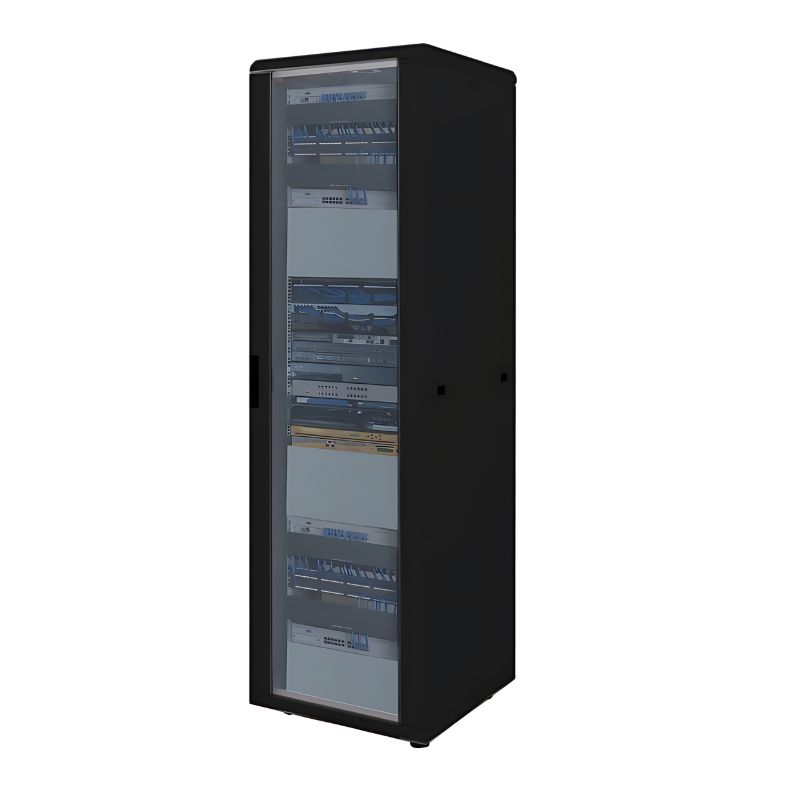

– Inorax-ECO is a cost effective network rack cabinet line designed for cost sensitive customers.It fulfills high density cabling requirements and offers advanced fiber and copper cable management options.
– A wide range of cable management accessories is available to ensure perfect management of copper, fiber cables and 19” equipment.
– Flat-pack option enables savings up to 60% in the transport cost and warehouse space.
Features
• Front door with safety glass
• Solid Side Panels with cylindrical locks and latches
• Solid Rear Panel with cylindrical locks
• Internal top sheet with 3 cable entries for 800 width, 1 cable entry for 600 width racks and fan cut-outs
• 2 Pairs of depth adjustable heavy duty 19” Mounting Rails
• 2 Pairs of Adjustable Feet
• Front Door with swing-handle single point lock
• Bottom cover with 3 cable entries for 800 width, 1 cable entry for 600 width racks
Specifications
– Material: 0.8, 1.0, 1.2, 1.5, 2.0 mm Steel
– Color: Black
– Compliance: RoHS, UL Certified
– Packaging: Unassembled
– Maximum Static Load: Up to 600 kg. (600 mm x 600 mm)
– Finish
• Doors, side panels, top and bottom covers. Electrostatic Powder Paint
•19” mounting rails: Zinc-plated
– Height (U): 26U
– Outer Width (W) mm: 800
– Outer Depth (D) mm: 800
– Outer Height (H) mm: 1322
– Inner Width (w1) mm: 703
– Inner Depth (d1) mm: 750
– Inner Height (h1) mm: 1162
– 19” Rails Adjustable Depth Range (c): 123 – 573
– Weight (kg): 92
