Interface Choices
– Dual Interface: USB V2.0 FS + Serial
User-Friendly Design
– Auto media width switch with 2-inch (58 mm) partition
– Paper saving mode, reducing the length of a receipt by up to 25%
– 180 or 203 dpi options
Reliable Printing Performance
– Fast printing speeds up to 250 mm/sec
– Energy Star certified
Specifications
Print Characteristics
– Print Method: Direct Thermal
– Print Speed: Up to 250 mm/sec
– Print Resolution: SRP-330III: 180 dpi
– Print Width: Up to 72 mm
– Sensor: Paper End, Cover Open
Media Characteristics
– Media Type: Receipt
– Media Width: 80 mm
– Optional: 58 mm
– Media Roll Diameter: Up to 80 mm
– Media Thickness: 0.05 ~ 0.08 mm

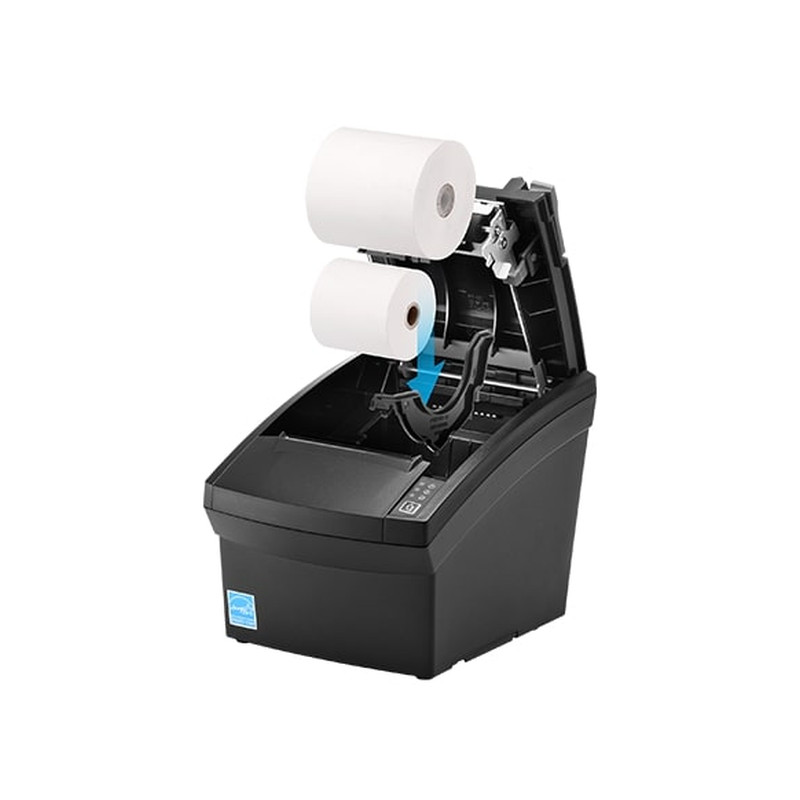

– Supply Method: Easy Paper Loading
Physical Characteristics
– Dimensions (W x D x H): 145 x 195 x 146 mm (5.72 x 7.79 x 5.74 inch)
– Weight: 1.6 kg (3.52 lbs.)
– Electrical
• EnergyStar Certified,
• External Power Adaptor 100-240V AC, 50/60Hz
– Drawer Port : 2 ports (Via y-type adaptor)
Performance Characteristics
– Memory: 128 Mb SDRAM, 64 Mb Flash
– NV Image Memory: 768 Kbytes (Mono)
– Receive Buffer: 4 Kbytes
– User Define Buffer: 12 Kbytes
– Interface: USB V2.0 FS + Serial
Environment Characteristics
– Temperature
• Operating: 0 ~ 40 ? (32 ~ 104 ?)
• Storage: -20 ~ 60 ? (-4 ~ 140 ?)
– Humidity
• Operating: 10 ~ 80 % RH
• Storage: 10 ~ 90 % RH
Software
– Emulation: BXL / POS
– Driver / Utility
• Windows Driver
• OPOS / JPOS Driver
• Linux / Mac CUPS Driver
• Virtual COM USB / Ethernet Driver
• Utility Program
• Network Auto Installer
SDK / Plugin
• Android / iOS / Windows SDK
• Linux SDK
• Xamarin SDK
• Web Print SDK
• Cordova Plugin
– Application: mPrint App (Android, iOS)
Fonts / Graphics / Symbologies
– Character Size
• Font A: 12 x 24 Font B: 9 x 17 Font C: 9 x 24
• KOR, CHN, JPN: 24 x 24
– Characters Per Line: SRP-330III: Font A: 42 Font B, C: 56, KOR, CHN, JPN: 21
– Character Sets
• Alphanumeric: 95
• Extended Graphics: 128 x 35 page
• International: 32
– Graphics: Supporting user-defined fonts, graphics, formats, and logos
– Barcode Symbologies: 1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E , 2D: Data Matrix, PDF417, QR Code
Accessories
– Standard: 2-inch Partition (58 mm), USB A-B Cable 1.8 m
– Optional
• External buzzer, B-Melodist,
• Serial Cable (9-9/25-9 pin), Parallel Cable
