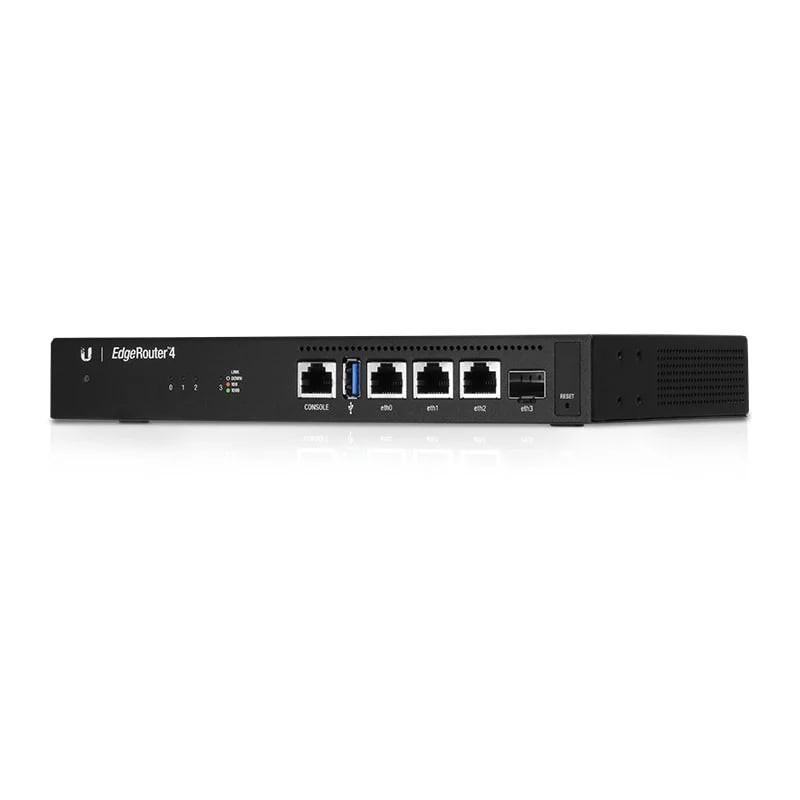

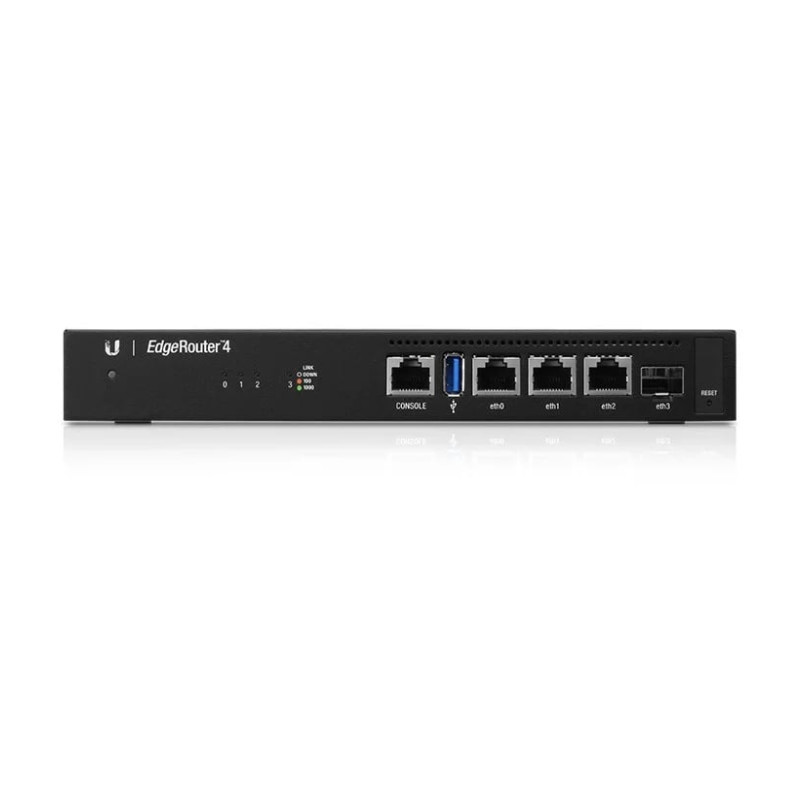

– Fanless router with a four-core, 1 GHz MIPS64 processor, (3) Gigabit RJ45 ports, and an SFP port.
Features
– (3) GbE RJ45 ports
– (1) 1G SFP port
– Wall or rack-mountable
Specifications
Mechanical
– Dimensions: 229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22″)
– Weight: 795 g (1.75 lb)
Hardware
– Management Interface:
• (1) RJ45 Serial Port
• (4) Ethernet Ports (Default eth0)
– Networking Interface
• (3) 10/100/1000 RJ45 Ports
• (1) 1 Gbps SFP Port
– Processor: 4-Core 1 GHz MIPS64
– System Memory: 1 GB DDR3 RAM
– On-Board Flash Storage: 4 GB eMMC, 8 MB SPI NOR
– Max. Power Consumption: 13W
– Power Method: Universal AC Power Cord (C13)
– Power Supply: Internal AC/DC Power Adapter, 30W DC
– Supported Voltage Range: 100-240VAC, 50/60 Hz Universal Adapter
– Button: Reset
LEDs
– Data Ports: Speed/Link/Activity
– SFP Data Port: Link/Activity
– ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
– Operating Temperature: -10 to 50° C (14 to 122° F)
– Operating Humidity: 10 – 90% Noncondensing
– Certifications: CE, FCC, IC
