Opis
Dostupnost: Po narudžbi
Specifikacije:
– Built for outdoor Wi-Fi applications
– Up to 300Mbps Wi-Fi with 2×2 MIMO technology
– High transmission power and high gain antennas provide a long-range coverage area
– Durable, weatherproof enclosure to withstand fair and foul weather
– Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
– Cloud centralized management and Omada app for ultra convenience and easy management
– Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
– Supports management VLAN for an enhanced network management
Specifications
HARDWARE FEATURES

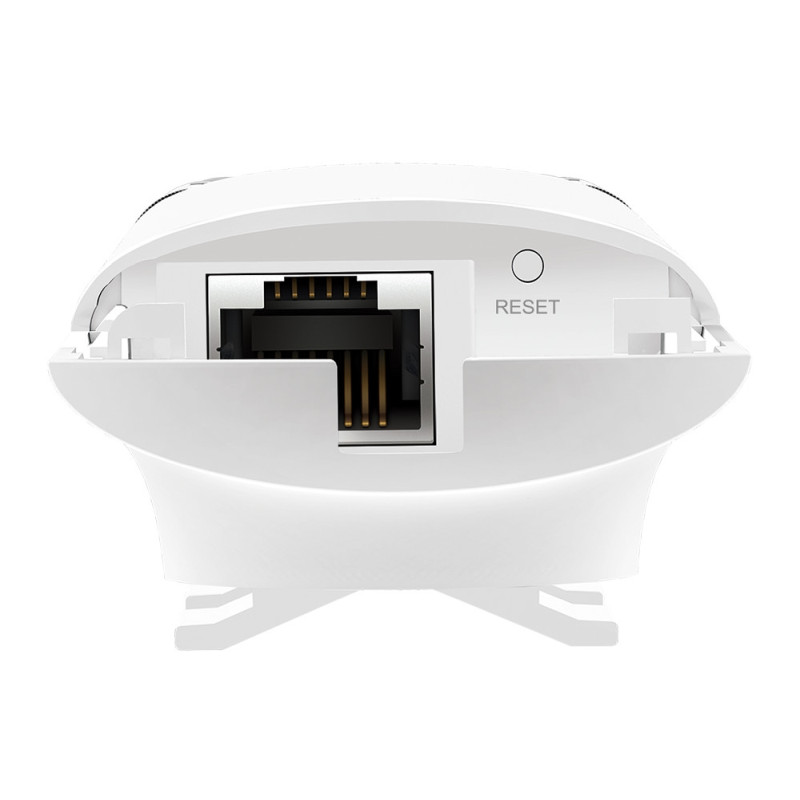

– Interface: Fast Ethernet (RJ-45) Port ×1 (Support Passive PoE)
– Button: Reset
– Power Supply: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
– Power Consumption: 3.12 W

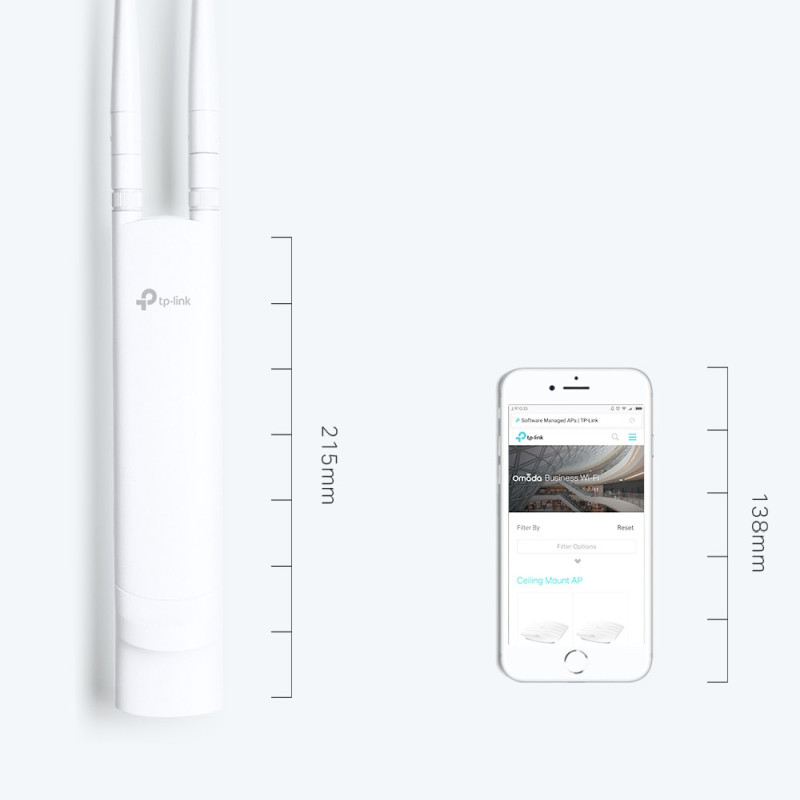

– Dimensions (W×D×H): 216×46×27 mm
– Antenna Type: 2× 3dBi External Omni waterproof
– Weatherproof Enclosure: IP65
– Mounting: Pole / Wall Mounting (Kits included)
WIRELESS FEATURES
– Wireless Standards: IEEE 802.11n/g/b
– Frequency: 2.4GHz
– Signal Rate:
* 11n: Up to 300Mbps(dynamic)
*11g: Up to 54Mbps(dynamic)
*11b: Up to 11Mbps(dynamic)
– Transmit Power:
* CE: <20dBm (EIRP)
* FCC: <22dBm
- Wireless Functions:
* Multiple SSIDs (Up to 8 SSIDs)
* Enable/Disable Wireless Radio
* Automatic Channel Assignment
* Transmit Power Control (Adjust Transmit Power on dBm)
* QoS(WMM)
* Load Balance
* Rate Limit
* Reboot Schedule
* Wireless Schedule
* Wireless Statistics based on SSID/AP/Client
- Wireless Security:
* Captive Portal Authentication
* Access Control
* Wireless Mac Address Filtering
* Wireless Isolation Between Clients
* SSID to VLAN Mapping
* Rogue AP Detection
* 802.1X Support
* 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
MANAGEMENT
- Omada Cloud Access: Yes
- Omada App: Yes
- Omada Cloud Controller: Yes
- Omada Controller Software: Yes
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
OTHERS
- Certification: CE, FCC, RoHS
- Package Contents: 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor, Passive PoE Adapter, Power Cord, Mounting Kits, Waterproof Rubber Insert, Waterproof Antennas, Installation Guide
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Environment:
* Operating Temperature: -30C - 65C (-22F - 149F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
Jamstvo: 5 godina
Kod dobavljača: EAP110-Outdoor
