Opis
Dostupnost: Po narudžbi
Specifikacije:
– Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz†
– Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
– Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.‡
– Integrates with the Omada SDN platform for centralized management.
– Advanced Features: Omada Mesh, Seamless Roaming, and more.§
– PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
Specifikacije
HARDWARE FEATURES
– Interface: 1× 2.5 Gigabit PoE+ Port
– Button: Reset
– Power Supply
* 802.3at PoE
* 12 V / 2 A DC
– Note:Power adapter is not included.
– Power Consumption
* EU: 20.43W
* US: 23.69W
– Dimensions ( W x D x H ): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
– Antenna Type
– Internal Omni
* 2.4 GHz: 4× 4 dBi
* 5 GHz: 4× 5 dBi
– Bluetooth: Yes

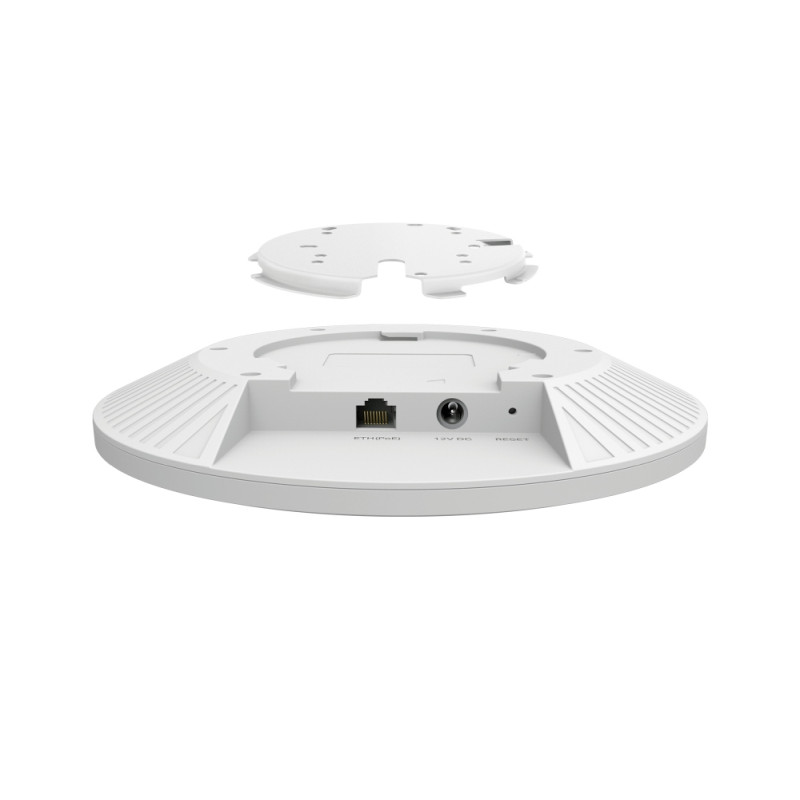

– Mounting: Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
– Coverage: 185?(2000ft2)
– Concurrent Clients: 510+
– Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
– Frequency: 2.4 GHz and 5 GHz
– Signal Rate
* 5 GHz: Up to 4804 Mbps
* 2.4 GHz: Up to 1148 Mbps
– Wireless Functions
* 1024-QAM
* 4× Longer OFDM Symbol
* OFDMA
* Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
* Enable/Disable Wireless Radio
* Automatic Channel Assignment
* Transmit Power Control (Adjust Transmit Power on dBm)
* QoS(WMM)
* MU-MIMO
* HE160 (160 MHz Bandwidth)‡
* Seamless Roaming §
* Omada Mesh§
* Band Steering
* Load Balance
* Airtime Fairness
* Beamforming
* Rate Limit
* Reboot Schedule
* Wireless Schedule
* Wireless Statistics based on SSID/AP/Client
– Wireless Security
* Captive Portal Authentication§
* Access Control
* Wireless Mac Address Filtering
* Wireless Isolation Between Clients
* SSID to VLAN Mapping
* Rogue AP Detection
* 802.1X Support
* WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
– Transmission Power
* CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<28 dBm(5 GHz, band3, EIRP)
* FCC:
<26 dBm (2.4 GHz)
<26 dBm (5 GHz)
MANAGEMENT
- Omada App: Yes
- Centralized Management
* Omada Hardware Controller (OC300)
* Omada Hardware Controller (OC200)
* Omada Software Controller
* Omada Cloud-Based Controller
- Cloud Access: Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging:
* Local/Remote Syslog
* Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
- Certification: CE,FCC,RoHS
- Package Contents
* EAP683 UR
* Ceiling/Wall Mounting Kits
* Installation Guide
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Environment
* Operating Temperature: 0–40 ? (32–104 ?)
* Storage Temperature: -40–70 ? (-40–158 ?)
* Operating Humidity: 10–90% RH non-condensing
* Storage Humidity: 5–90% RH non-condensing
Jamstvo: 5 godina
Kod dobavljača: EAP683 UR
